Hybrid Vehicle Transaxle Assembly: Components

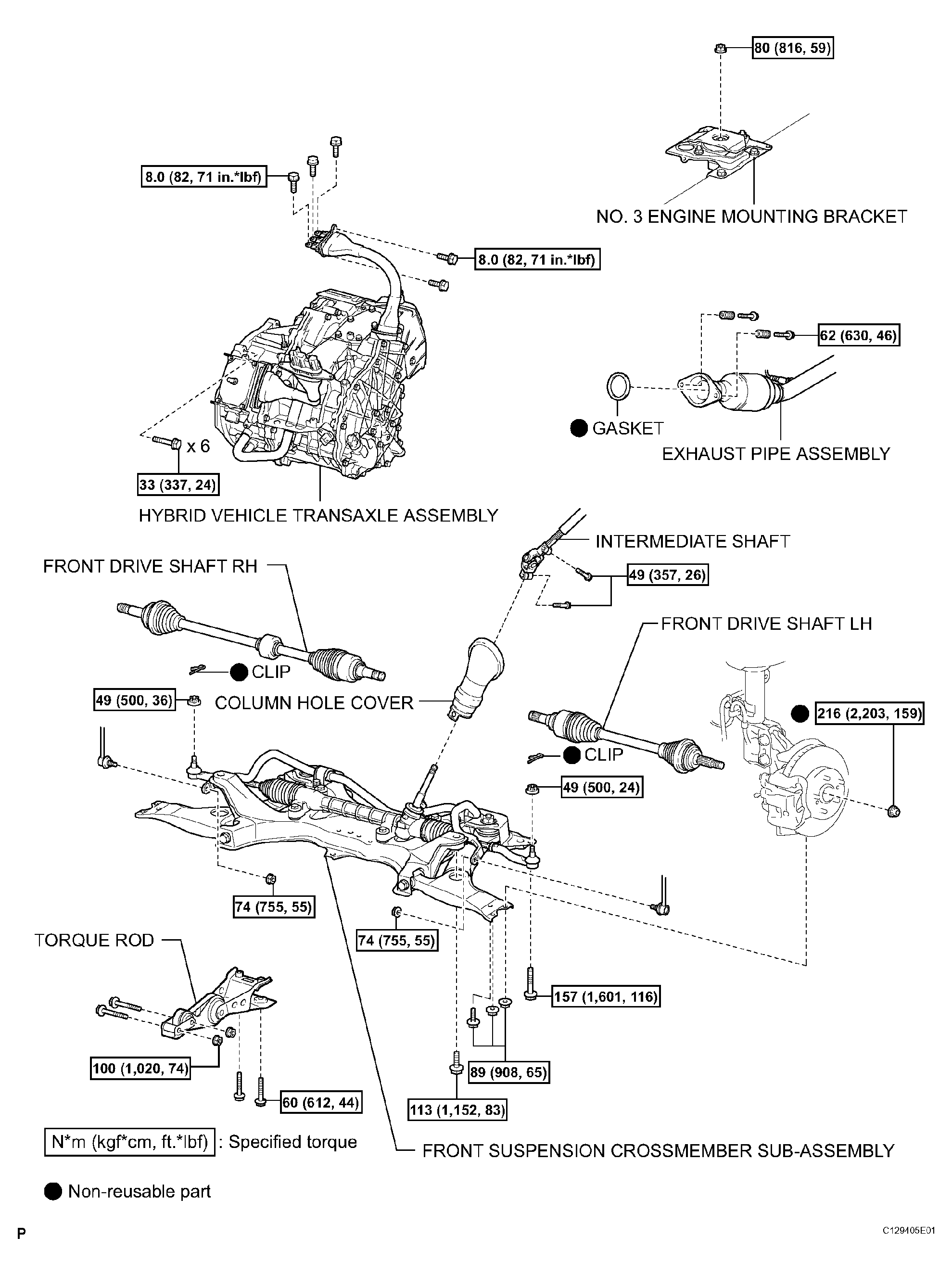

Fig 1: Hybrid Vehicle Transaxle Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Hybrid Vehicle Transaxle Assembly Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
