Input Shaft: Disassembly

REMOVE PLANETARY SUN GEAR SUB-ASSEMBLY
1. Remove the planetary sun gear from the input shaft.

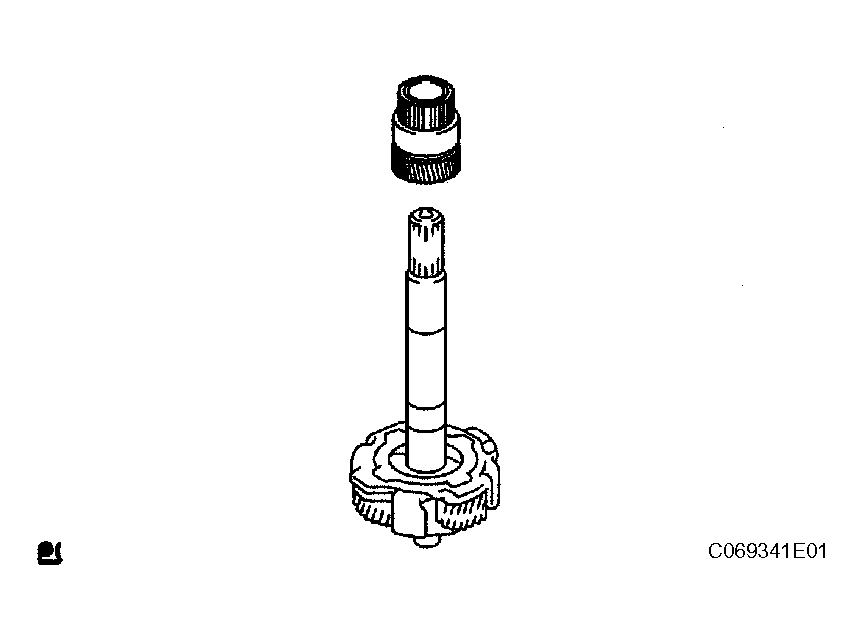

  Fig 1: Removing Planetary Sun Gear From Input Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INPUT SHAFT THRUST BEARING RACE
1. Float the input shaft thrust bearing race using a thin flat-head screwdriver if it is attached to the planetary sun gear.

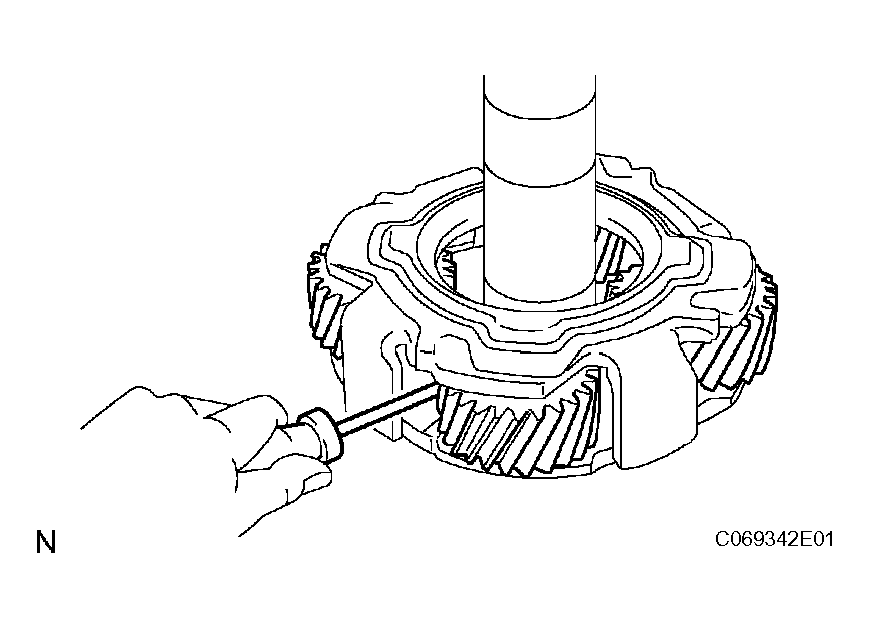

  Fig 2: Attaching Screwdriver To Planetary Sun Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 input shaft thrust bearing races and input shaft thrust needle roller bearing.

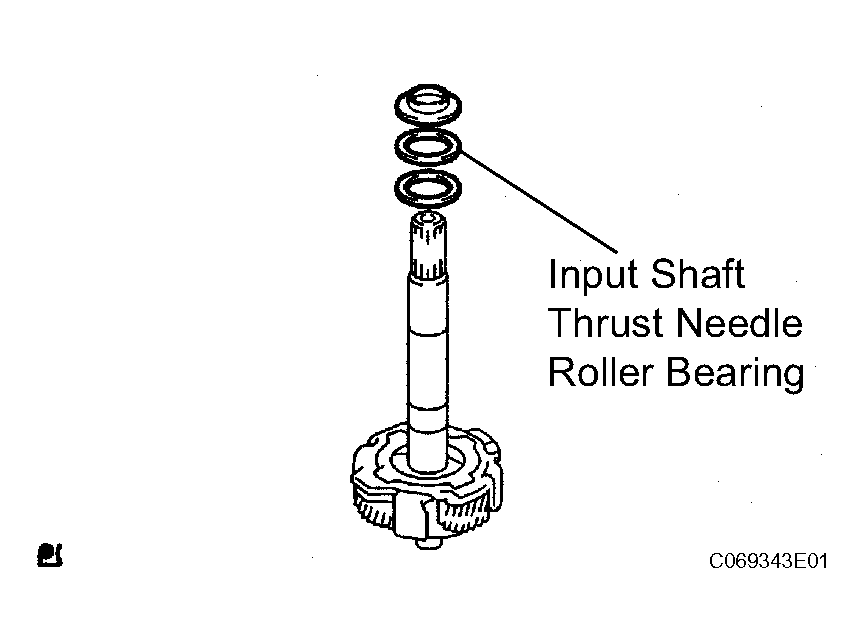

  Fig 3: Removing Input Shaft Thrust Bearing Races And Input Shaft Thrust Needle Roller Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
