Input Shaft: Reassembly

  1. INSTALL INPUT SHAFT THRUST BEARING RACE
    1. Apply ATF WS to the sliding surfaces of the bearing and install the 2 input shaft thrust bearing races and input shaft thrust needle roller bearing.

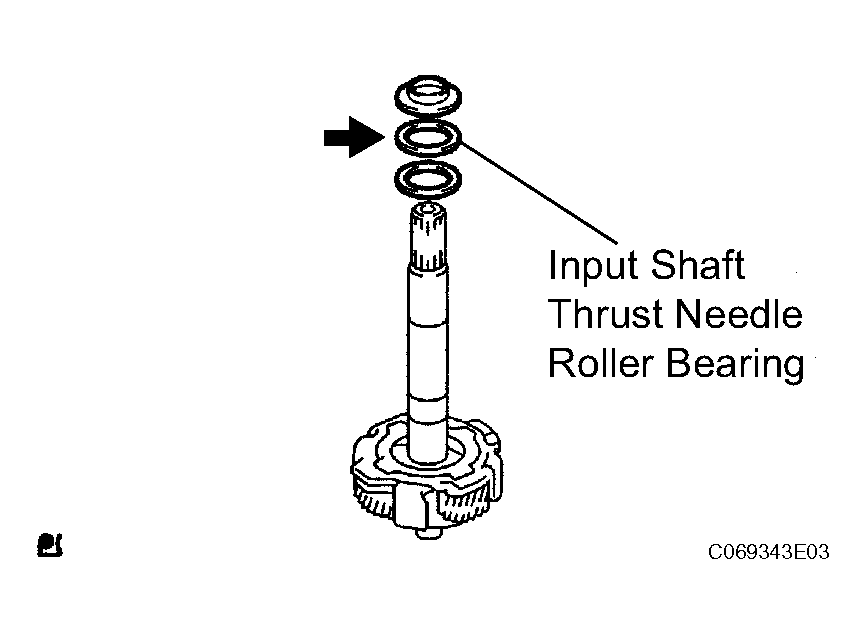

      Fig 1: Installing Input Shaft Thrust Bearing Race And Needle Roller Bearing
      G04474253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL PLANETARY SUN GEAR SUB-ASSEMBLY
    1. Apply ATF WS to the bush and install the planetary sun gear to the input shaft.

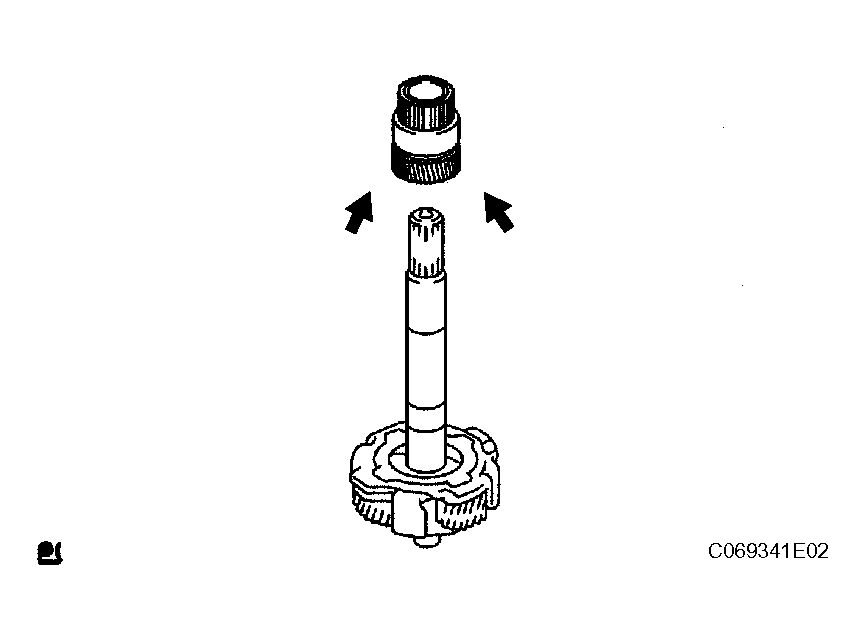

      Fig 2: Installing Planetary Sun Gear To Input Shaft
      G04474254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
