Shift Control Actuator: Removal

  1. REMOVE SHIFT CONTROL ACTUATOR ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 3 bolts and transmission case cover from the hybrid vehicle transaxle.

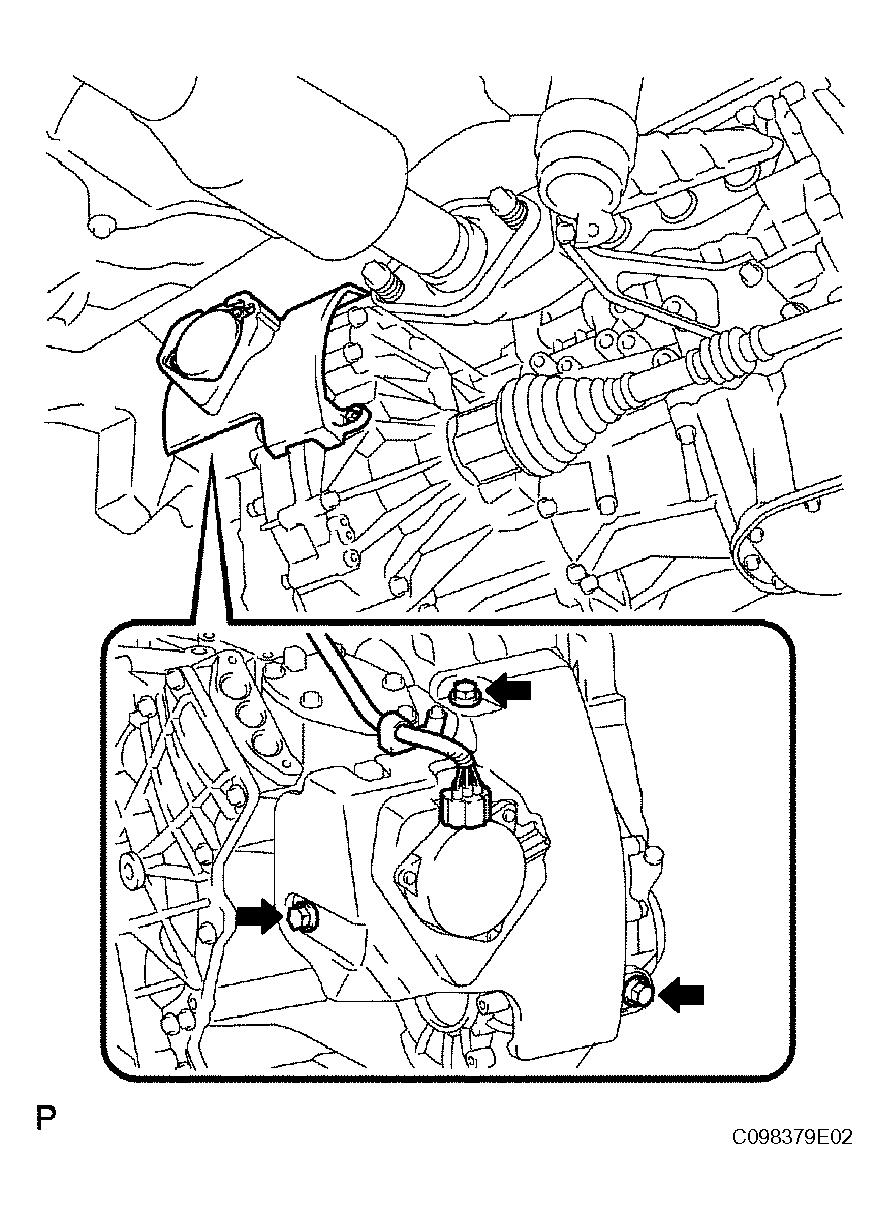

      Fig 1: Removing Transmission Case Cover From Hybrid Vehicle Transaxle
      G04474099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 bolts and shift control actuator from the hybrid vehicle transaxle.

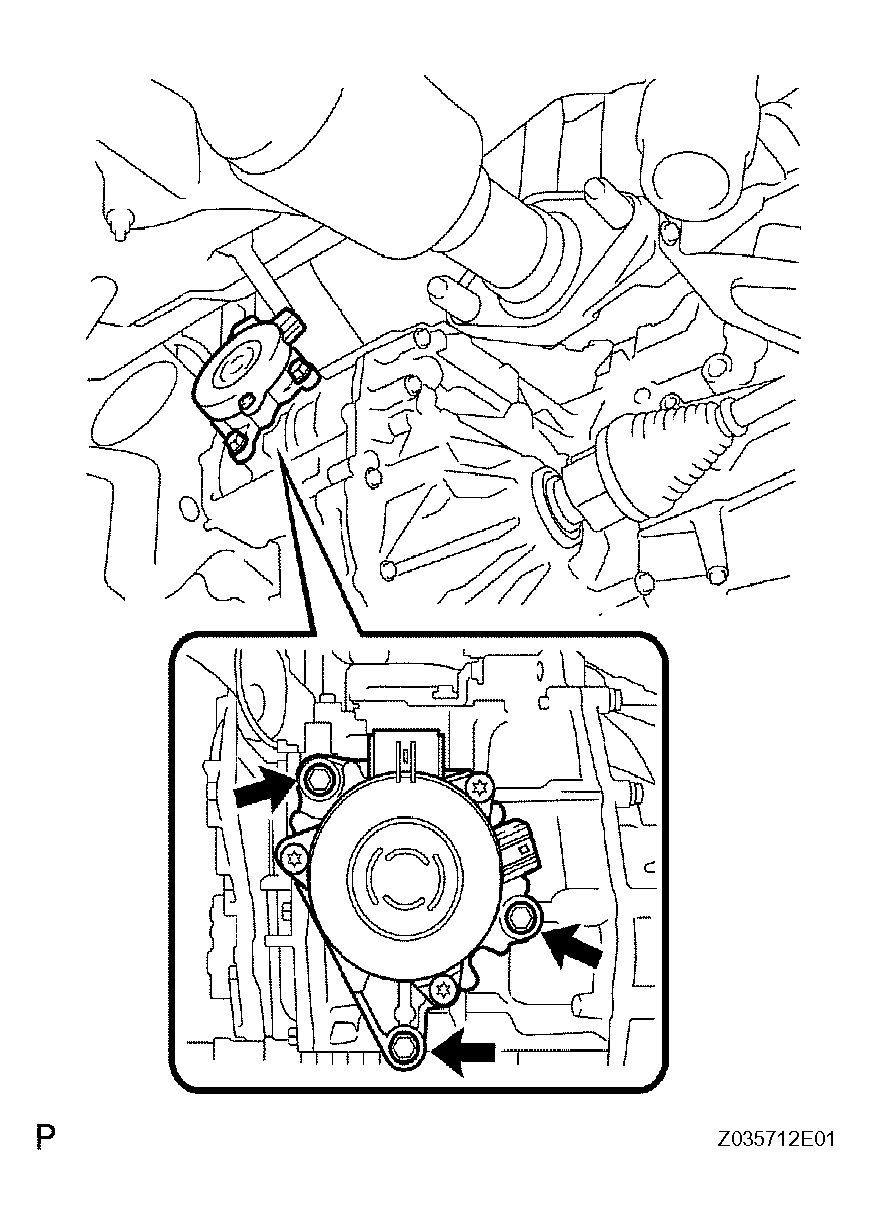

      Fig 2: Removing Shift Control Actuator From Hybrid Vehicle Transaxle
      G04474100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
