Home >> Toyota >> 2006 >> Prius >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Shift Lever >> Components

Shift Lever: Components

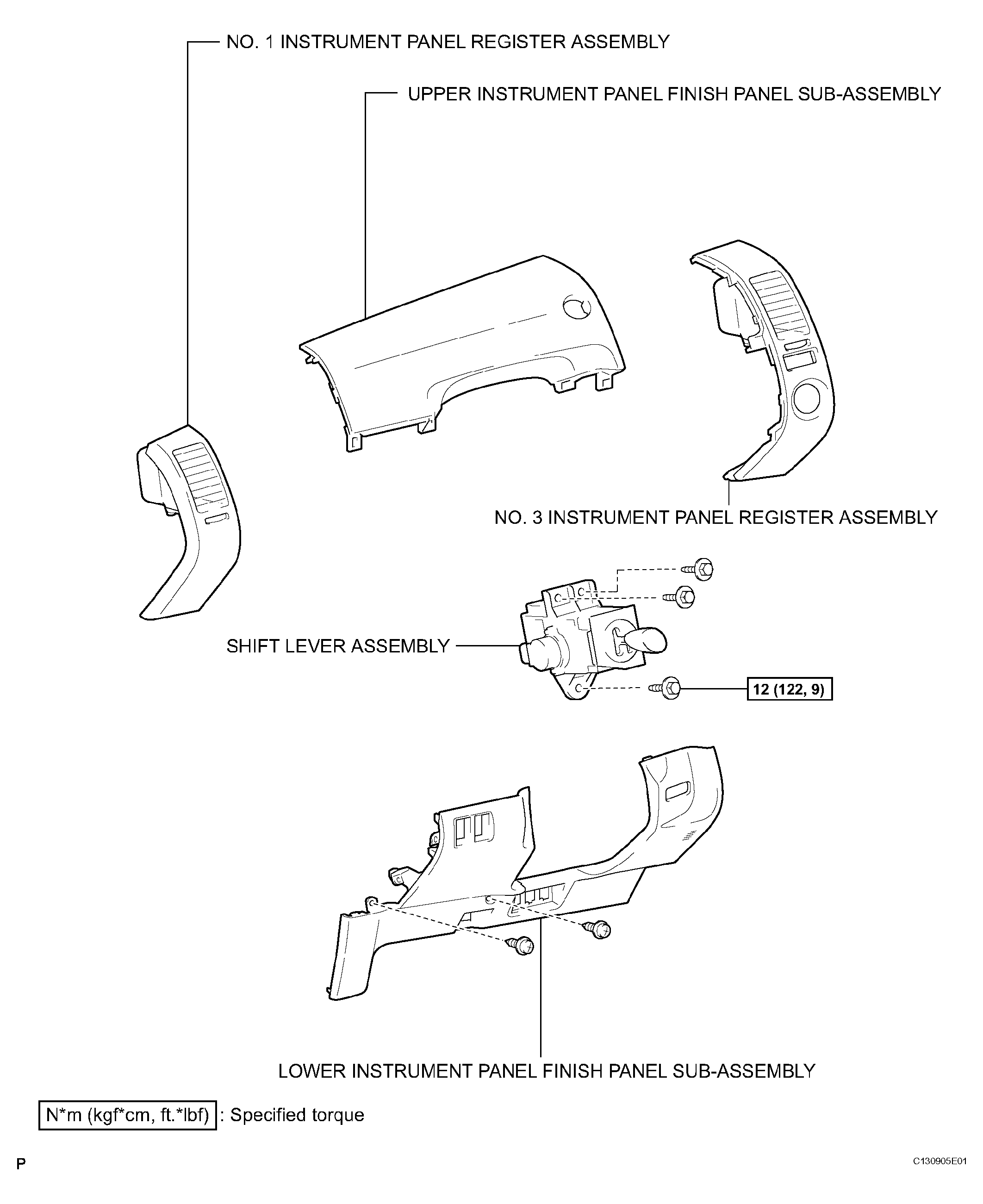

Fig 1: Shift Lever Replacement Components With Torque Specifications (1 Of 2)
G04474296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

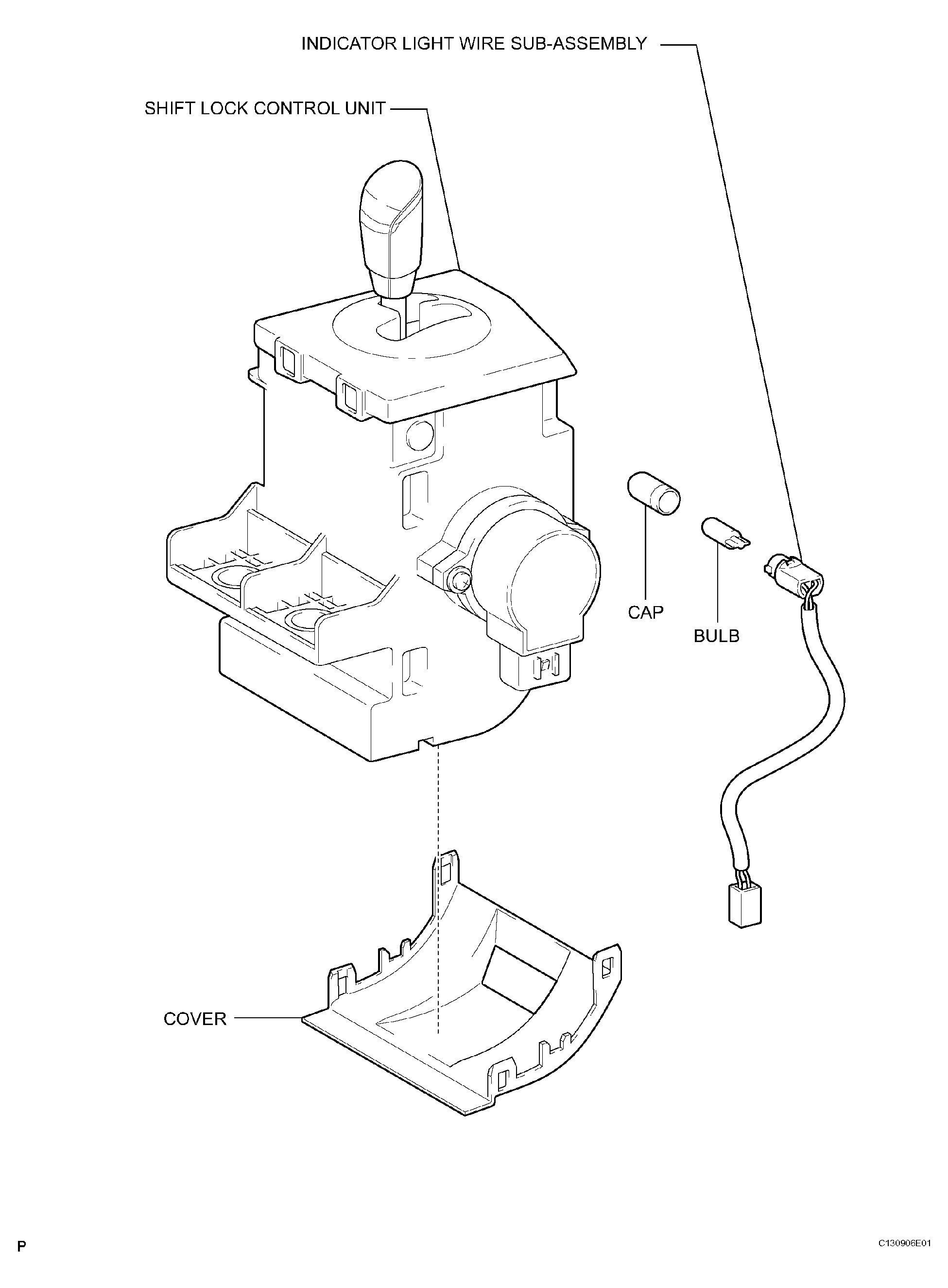

Fig 2: Shift Lever Replacement Components With Torque Specifications (2 Of 2)
G04474297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
