Shift Lever: Disassembly

REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Remove the position indicator light wire from the position indicator housing.

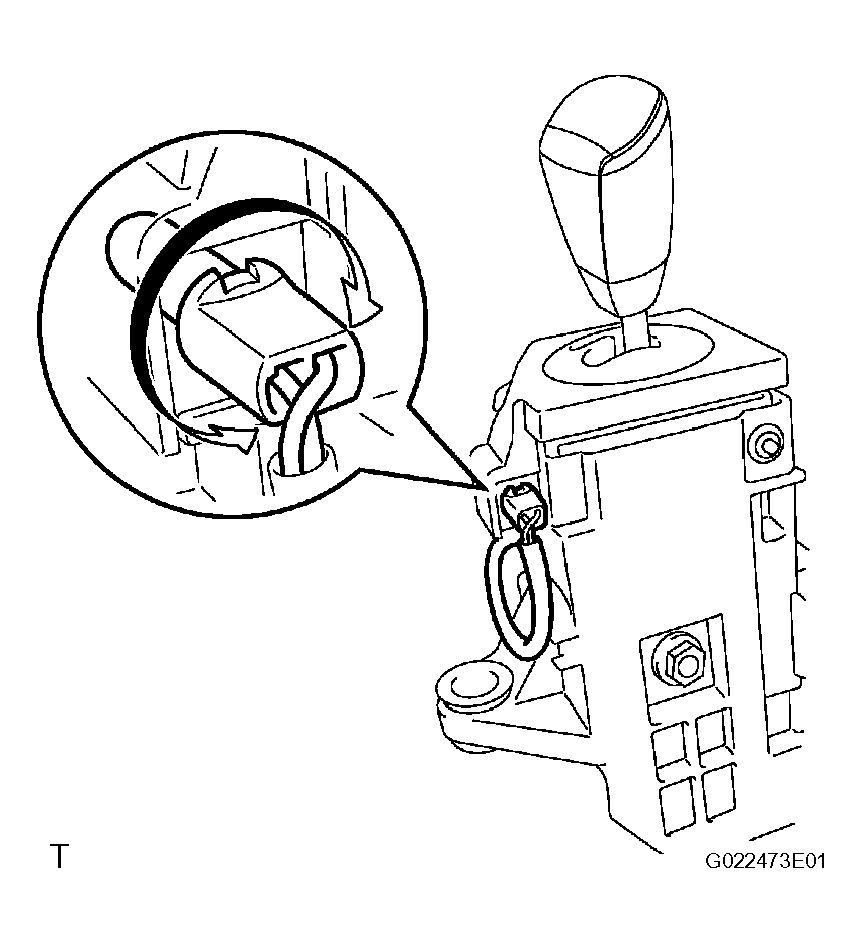

  Fig 1: Removing Position Indicator Light Wire From Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the cover.
3. Disconnect the connector from the 3 clamps and remove the position indicator light wire.

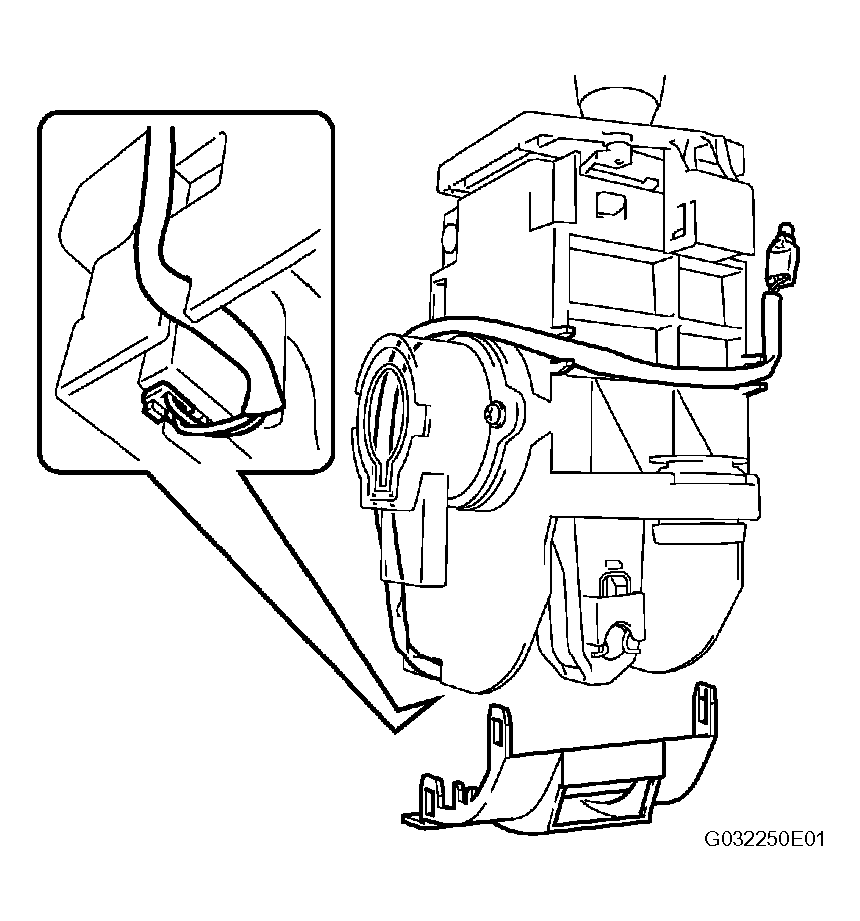

  Fig 2: Removing Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bulb and cap from the position indicator light wire.

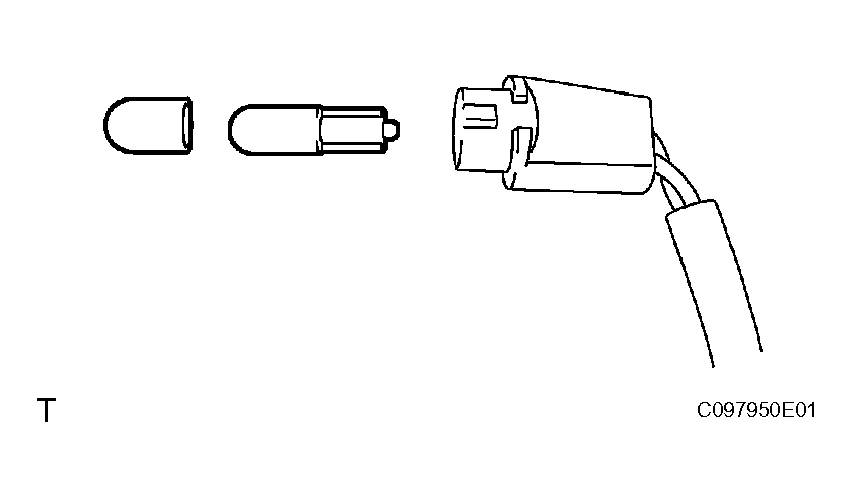

  Fig 3: Removing Bulb And Cap From Position Indicator Light Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
