Shift Lever: Installation

  1. INSTALL SHIFT LEVER ASSEMBLY
    1. Connect the 2 connectors to the shift lever.
    2. Install the shift lever with the 3 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  2. INSPECT SHIFT LEVER ASSEMBLY
    1. Inspect the shift lever (see ON-VEHICLE INSPECTION  ).
  3. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )

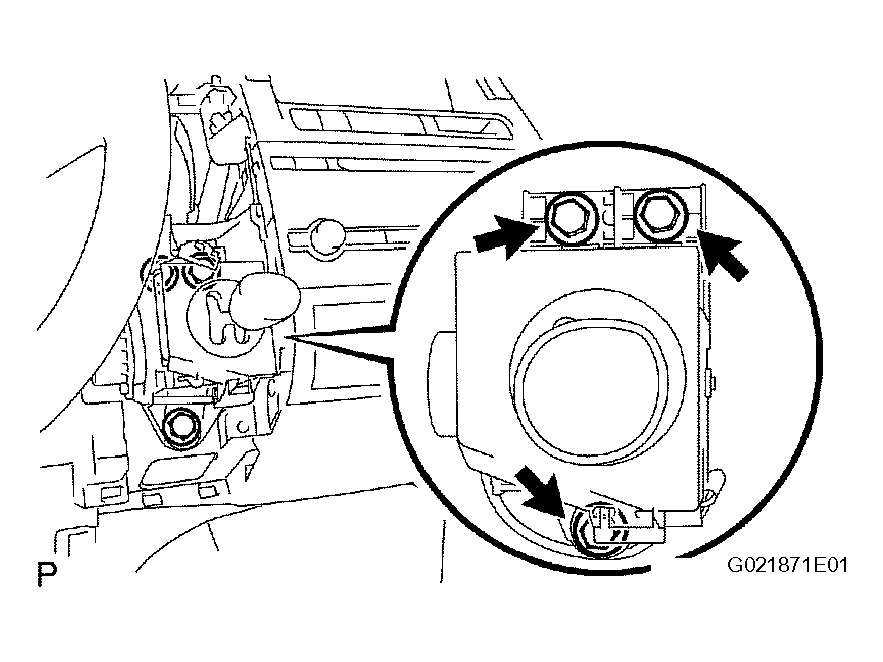

    Fig 1: Installing Shift Lever Assembly
    G04474305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  6. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )
