Shift Lever: Reassembly

INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Install the bulb and cap to the position indicator light wire.

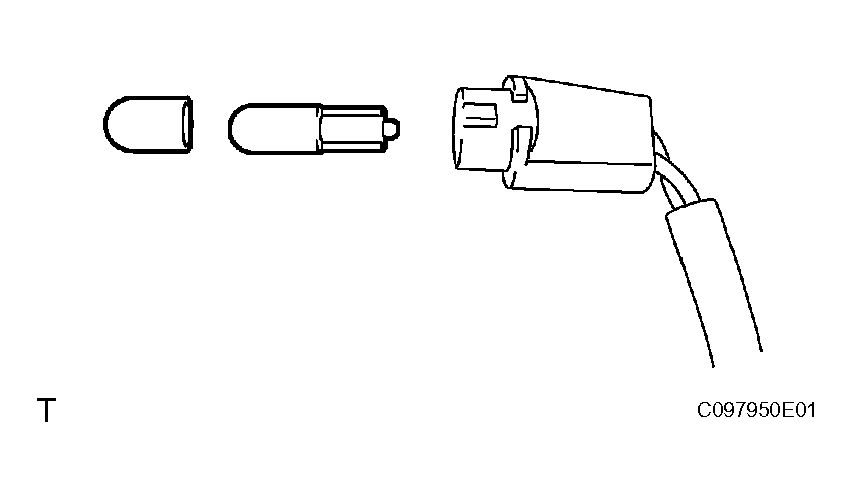

  Fig 1: Installing Bulb And Cap From Position Indicator Light Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector to the 3 clamps.
3. Install the cover.

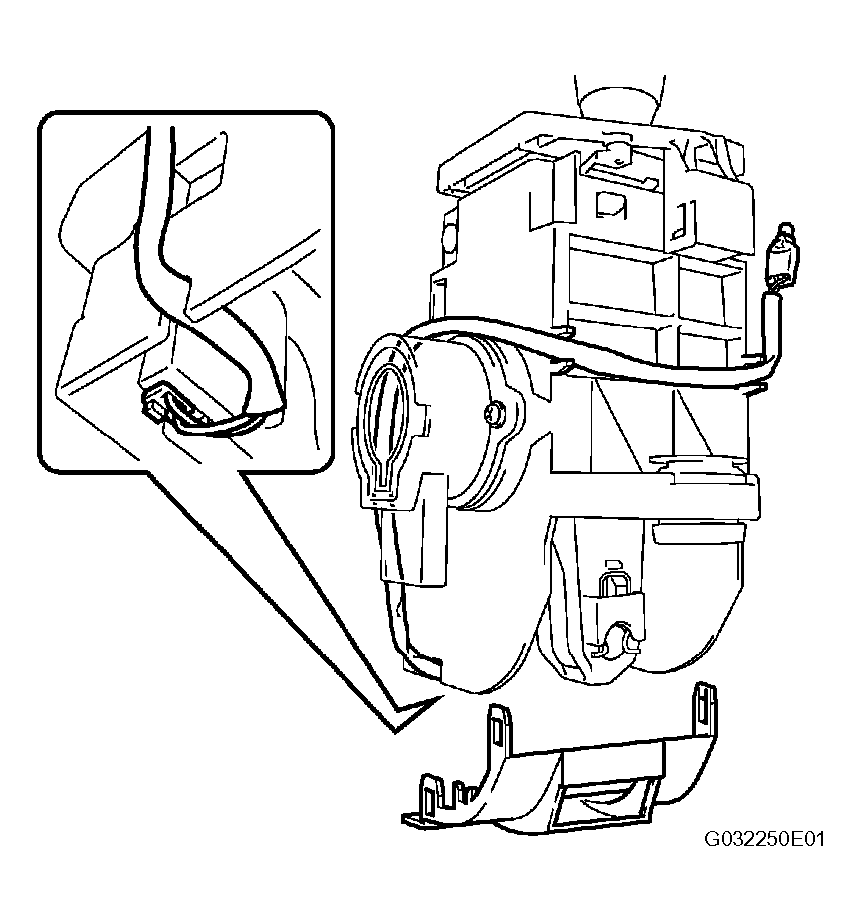

  Fig 2: Installing Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the position indicator light wire to the position indicator housing.
  NOTE: Securely attach the wire by twisting to the right.

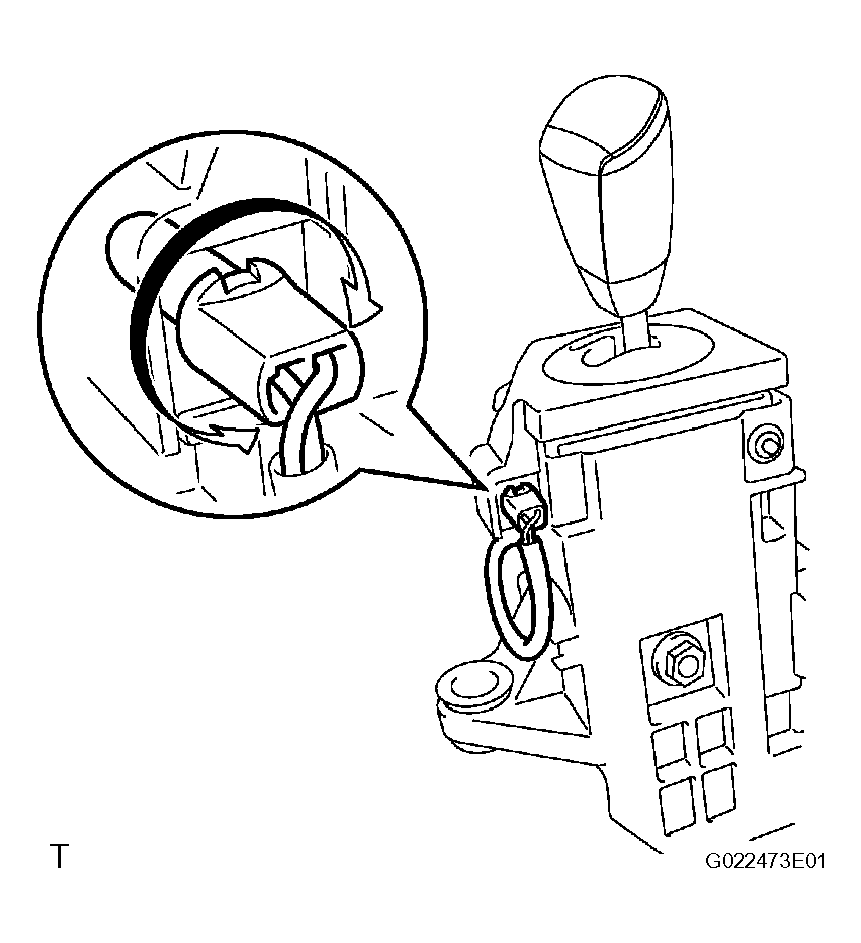

  Fig 3: Installing Position Indicator Light Wire To Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
