Home >> Toyota >> 2006 >> Prius >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Transmission Drive Sprocket >> Components

Transmission Drive Sprocket: Components

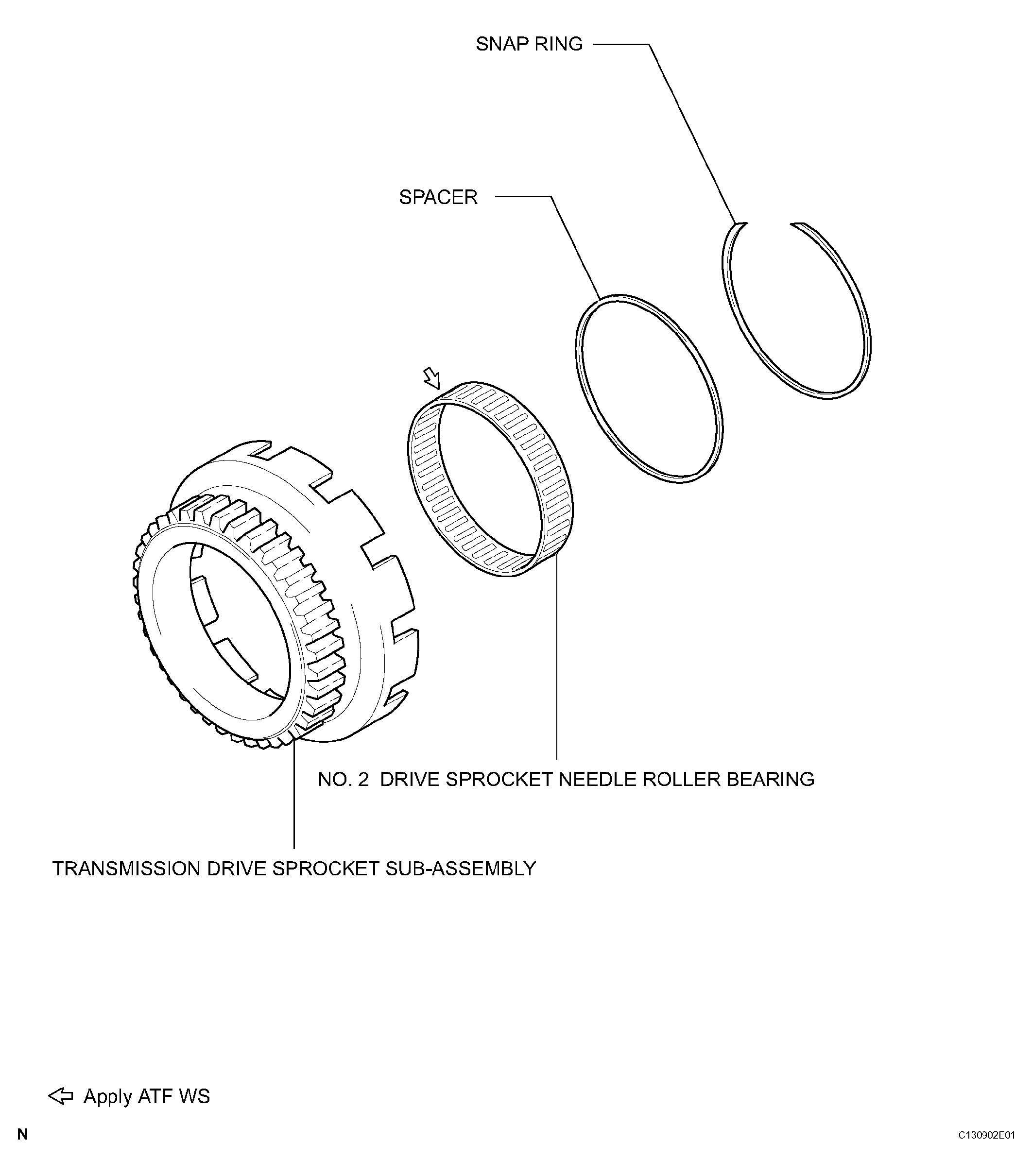

Fig 1: Identifying Transmission Drive Sprocket Components

G04474269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
