Home >> Toyota >> 2006 >> RAV4 Base, 2.4 D, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System (2AZ-FE) >> Crankshaft Position Sensor >> Components

Crankshaft Position Sensor: Components

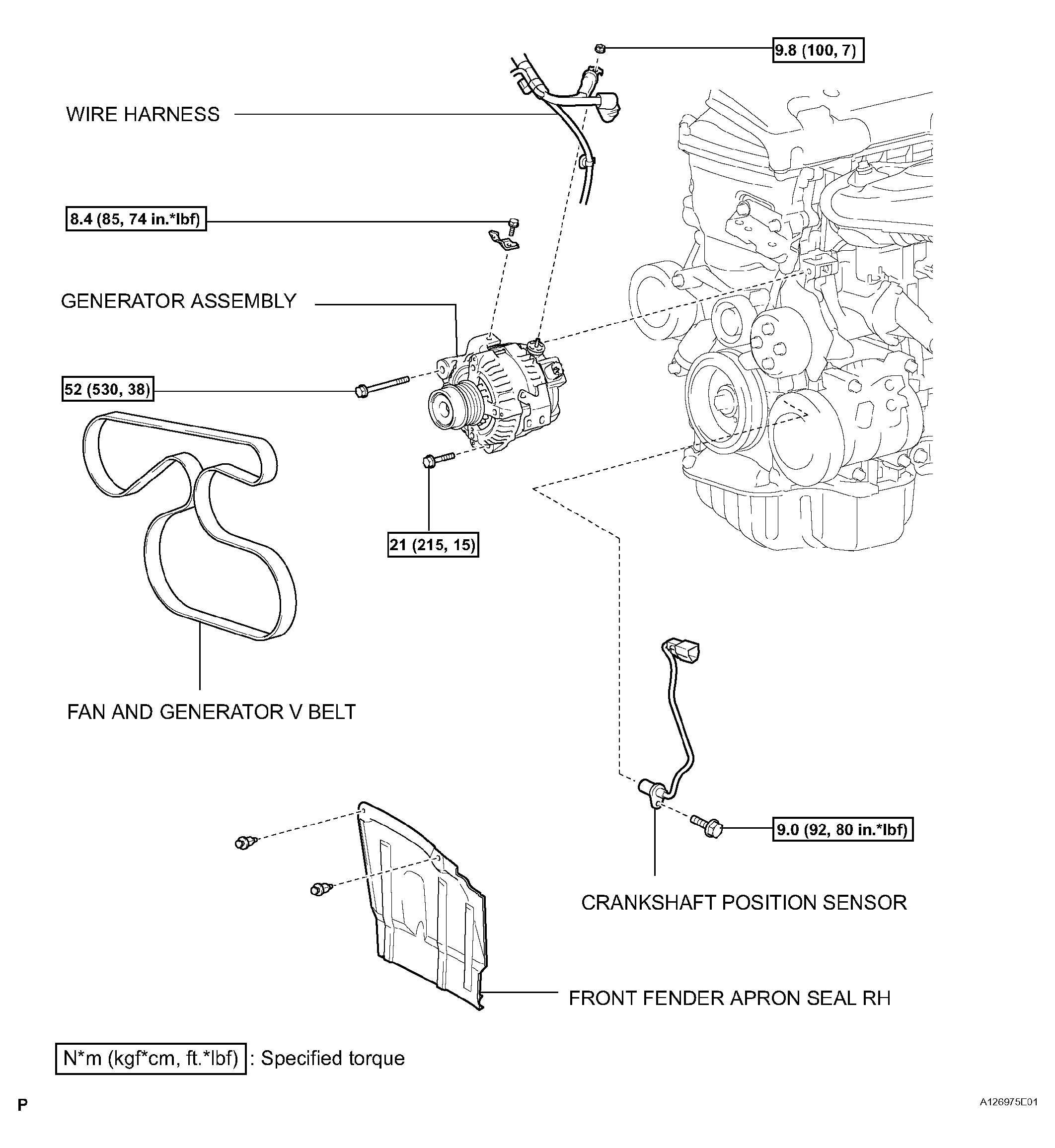

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
G04484092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
