Camshaft Timing Oil Control Valve Assembly: Inspection

  1. INSPECT OIL CONTROL VALVE
    1. Connect the positive + lead to terminal 1 of the connector and the negative - lead to terminal 2, then check the movement of the valve.
      OIL CONTROL VALVE INSPECTION

      When battery positive voltage is applied. Valve moves <-- in direction.
      When battery positive voltage is cut off. Valve moves --> in direction.

      If operation is not as specified, replace the oil control valve.

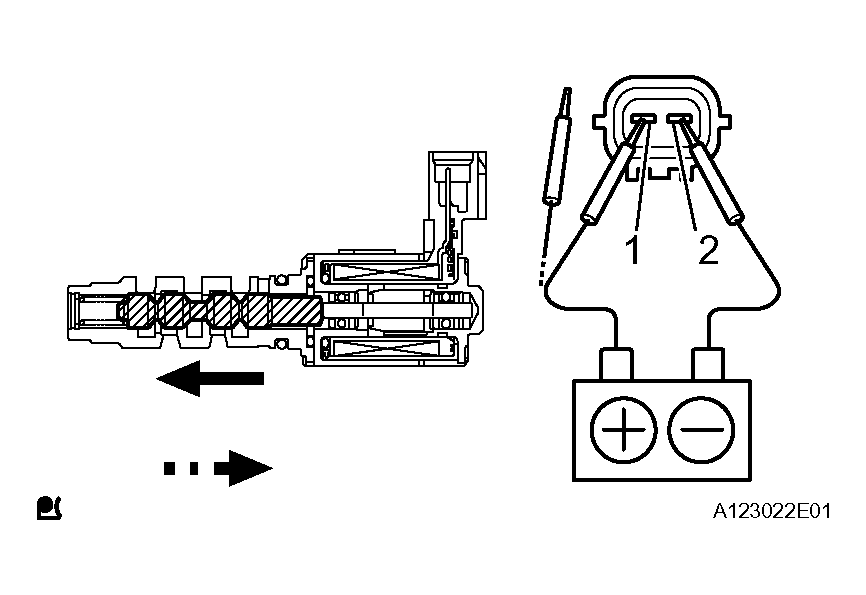

      Fig 1: Connecting Positive + Lead To Terminal 1 Of Connector And Negative - Lead To Terminal 2
      G04507022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
