On-Vehicle Inspection

REMOVE RELAY BOX COVER
REMOVE CIRCUIT OPENING RELAY
INSPECT CIRCUIT OPENING RELAY CONTINUITY
1. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
  If there is no continuity, replace the relay.
2. Check that there is no continuity between terminals 3 and 5.
  If there is continuity, replace the relay.

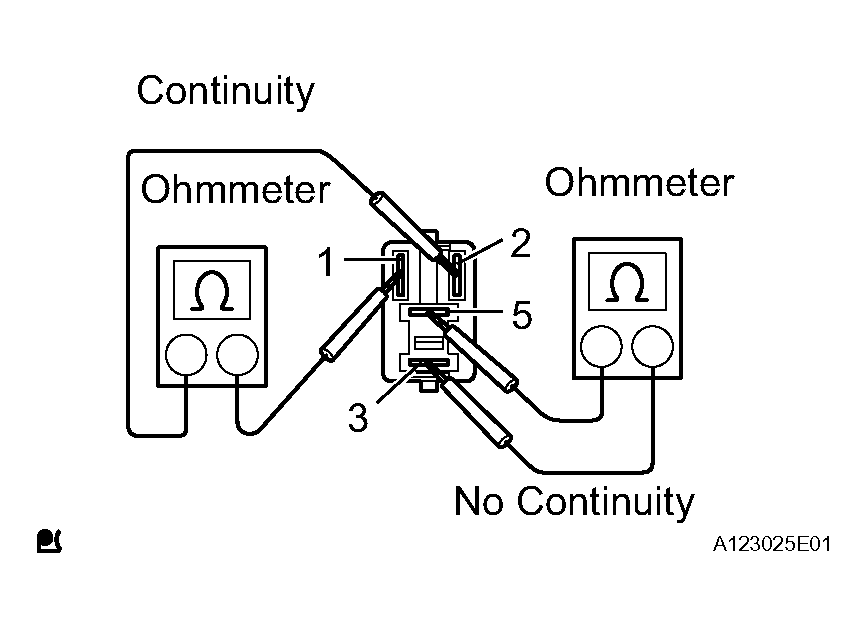

  Fig 1: Checking Circuit Opening Relay Continuity Between Terminals 1 And 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT CIRCUIT OPENING RELAY OPERATION
1. Apply battery positive voltage across terminals 1 and 2.
2. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
  If there is no continuity, replace the relay.
REINSTALL CIRCUIT OPENING RELAY
REINSTALL RELAY BOX COVER

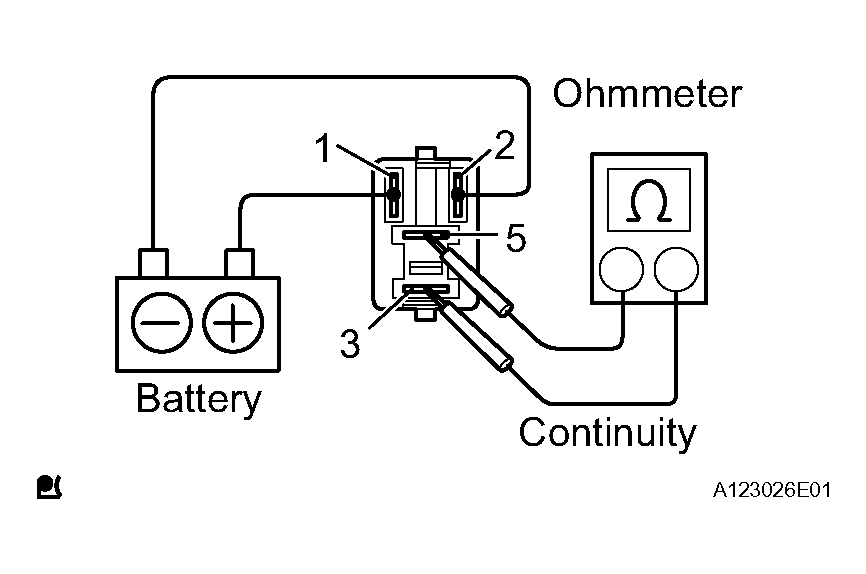

Fig 2: Checking Circuit Opening Relay Continuity Between Terminals 3 And 5
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
