On-Vehicle Inspection

REMOVE RELAY BOX COVER
REMOVE FUEL PUMP RELAY
INSPECT FUEL PUMP RELAY CONTINUITY
1. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
  If there is no continuity, replace the relay.
2. Check that there is continuity between terminals 3 and 4.
  If there is no continuity, replace the relay.

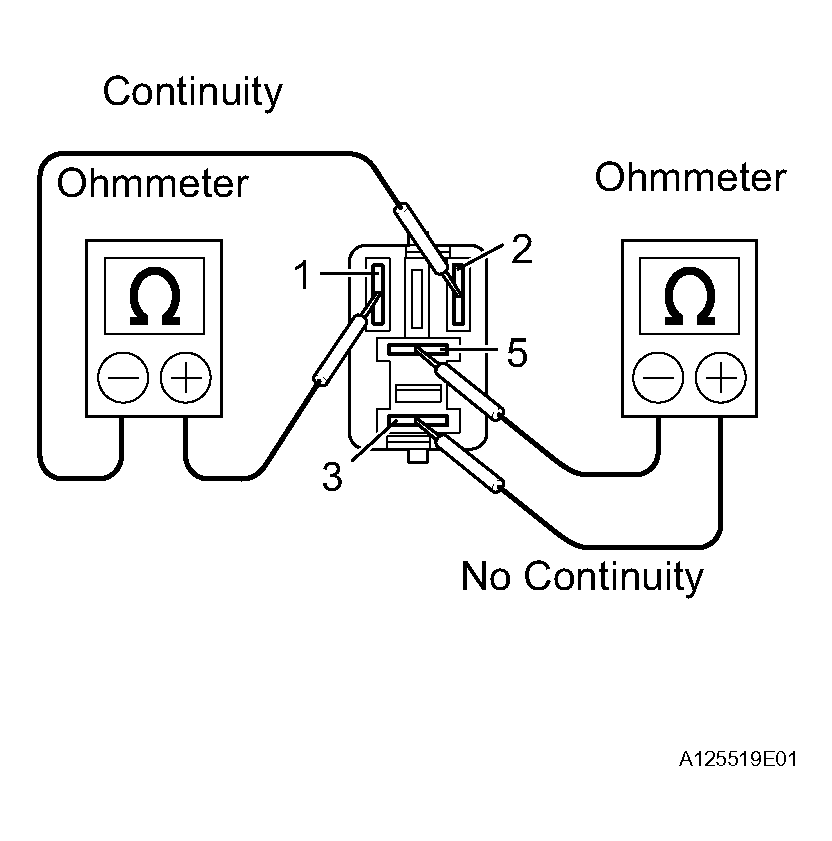

  Fig 1: Checking Fuel Pump Relay Continuity Between Terminals 1 And 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FUEL PUMP RELAY OPERATION
1. Apply battery positive voltage across terminals 1 and 2.
2. Using an ohmmeter, check that there is no continuity between terminals 3 and 4.
  If there is continuity, replace the relay.
REINSTALL FUEL PUMP RELAY
REINSTALL RELAY BOX COVER

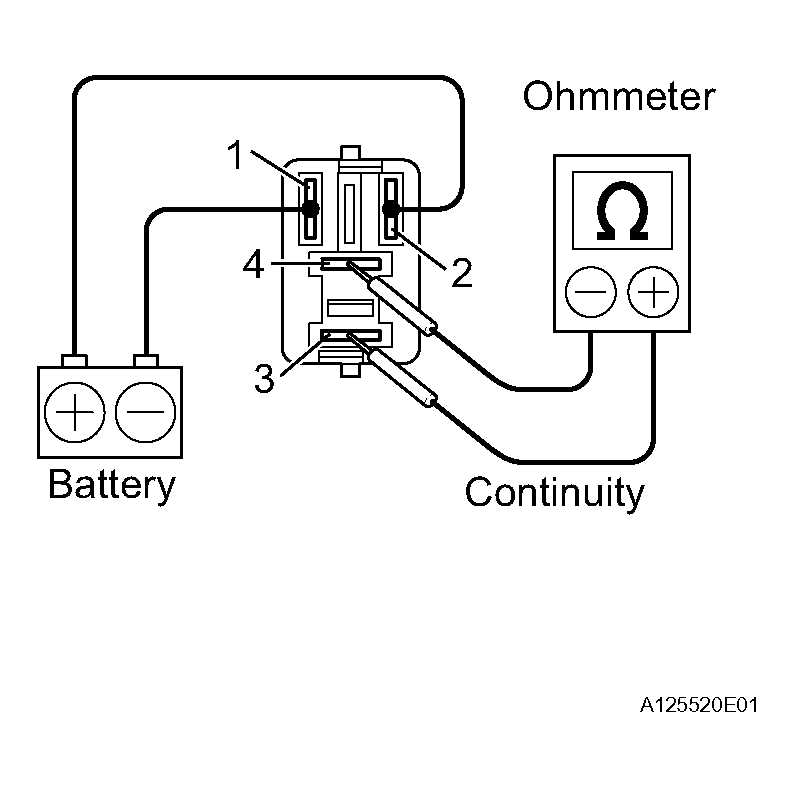

Fig 2: Checking Fuel Pump Relay Continuity Between Terminals 3 And 4
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
