Knock Sensor: Components

Fig 1: Knock Sensor Replacement Components & Torque Specification (1 Of 2)
G04507041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

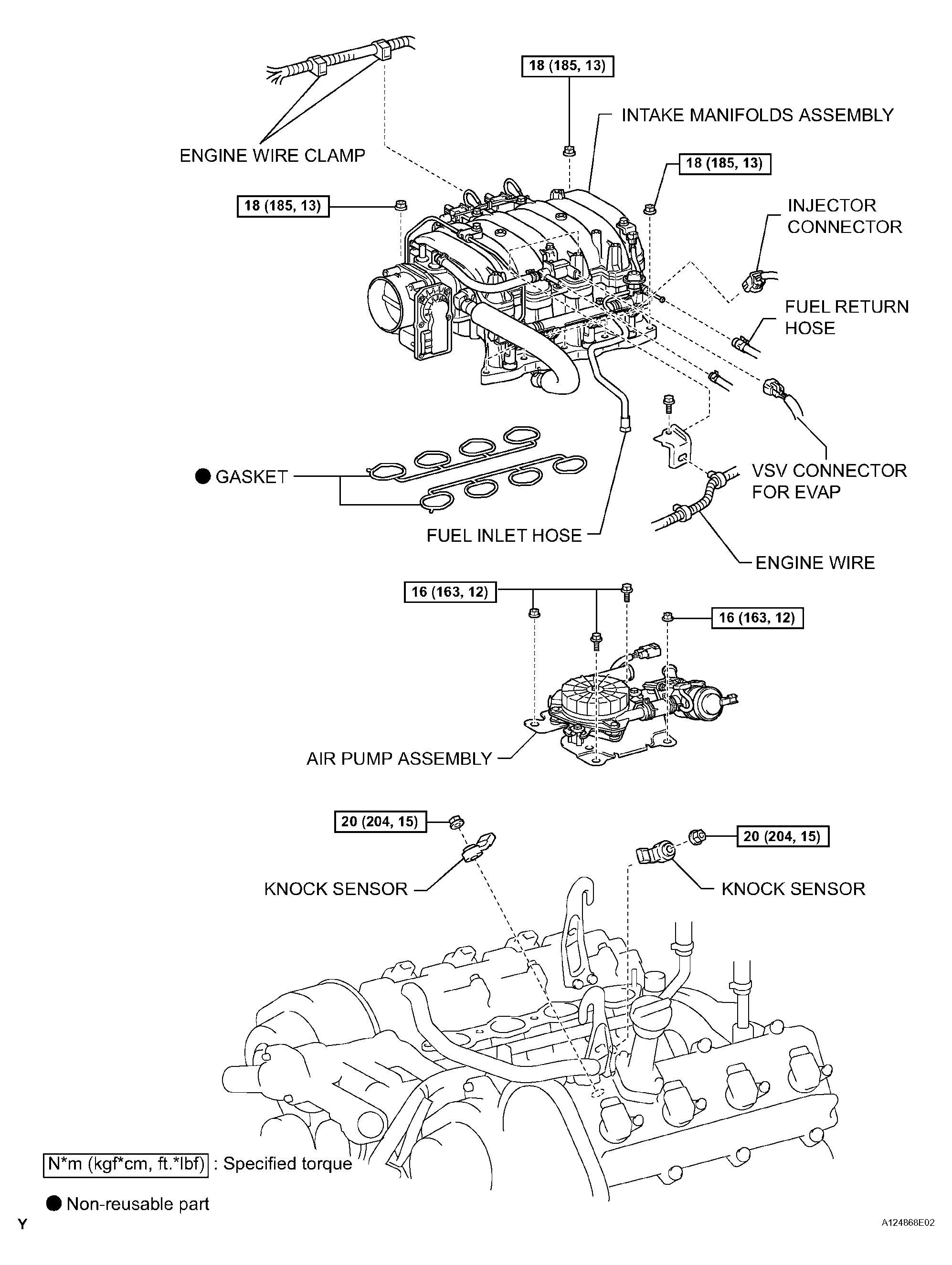

Fig 2: Knock Sensor Replacement Components & Torque Specification (2 Of 2)
G04507042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
