Home >> Toyota >> 2006 >> Sequoia Limited, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> Parts Location >> Notes

Parts Location: Notes

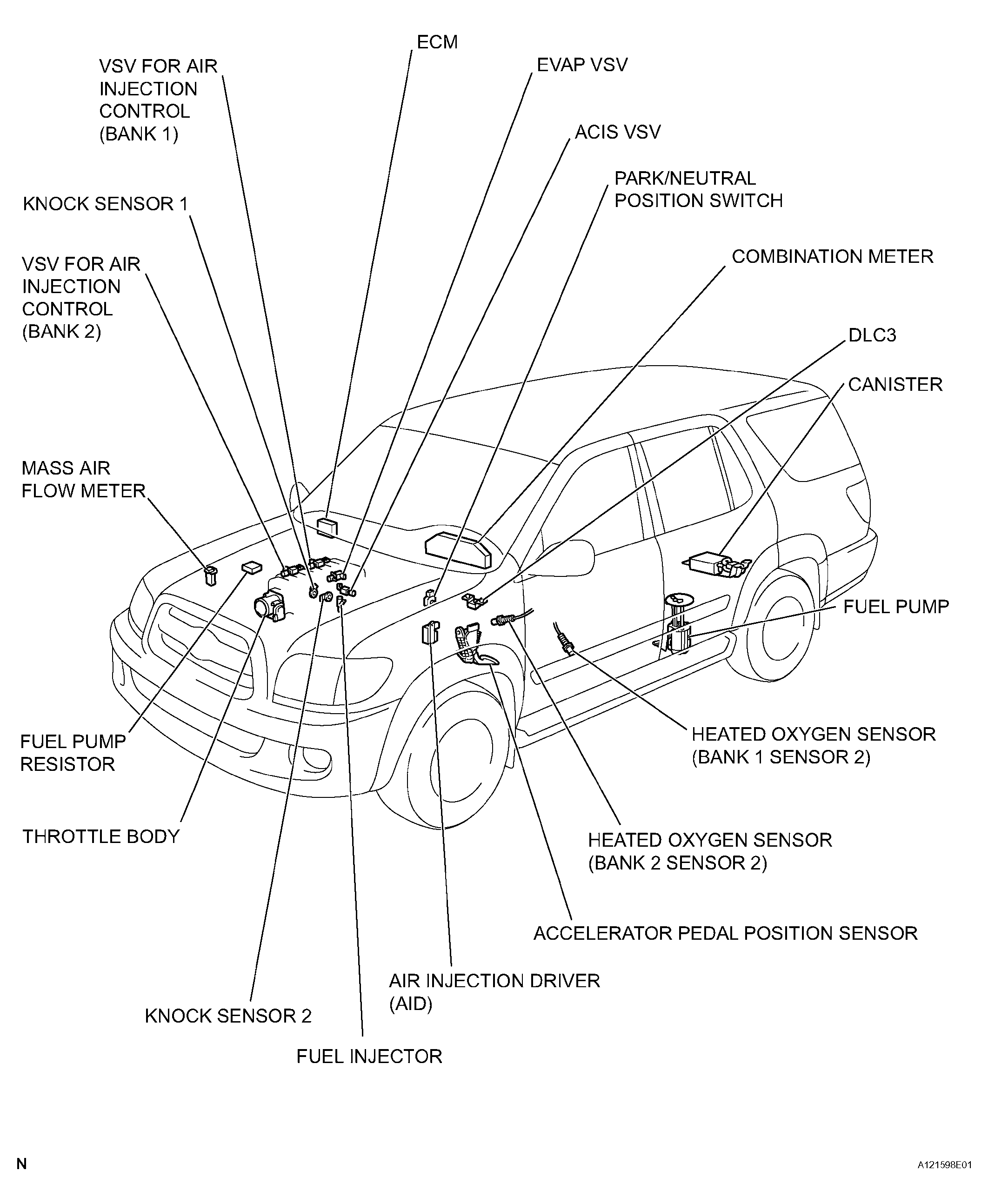

Fig 1: Identifying Engine Control System Parts Location (1 Of 2)
G04506563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

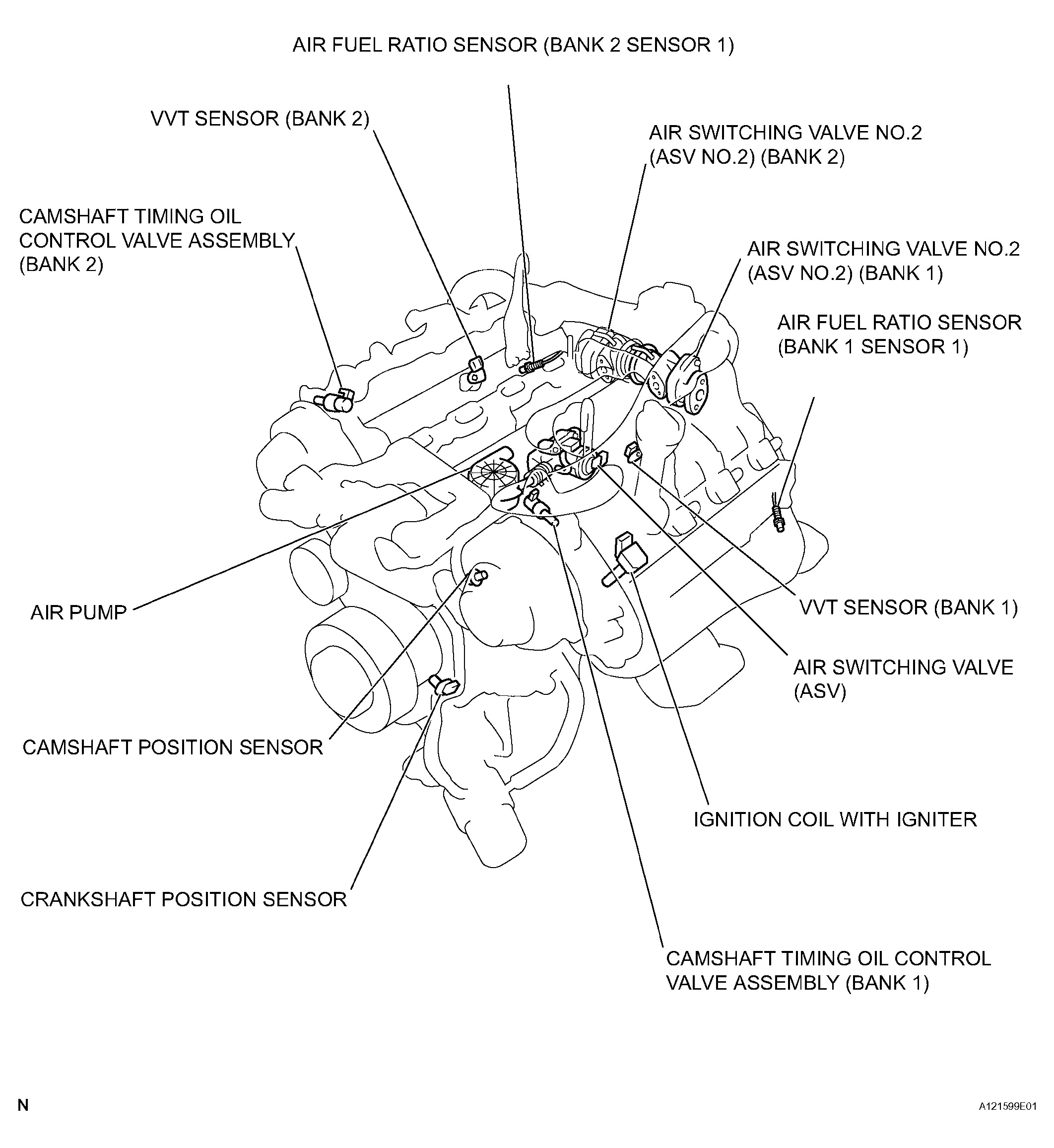

Fig 2: Identifying Engine Control System Parts Location (2 Of 2)
G04506564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
