Accelerator Pedal Rod: Inspection

  1. INSPECT ACCELERATOR PEDAL ROD ASSEMBLY
    1. Resistance inspection
      1. Using an ohmmeter, measure the resistance between the terminals.

        Standard Resistance

        ACCELERATOR PEDAL ROD ASSEMBLY

        Terminal Resistance
        3 (VPA2) - 5 (EP1) 5.0 kΩ or less
        6 (VPA1) - 2 (EP2) 5.0 KΩ or less
        4 (VCP1) - 5 (EP1) 2.25 to 4.75 kΩ
        1 (VCP2) - 2 (EP2) 2.25 to 4.75 kΩ

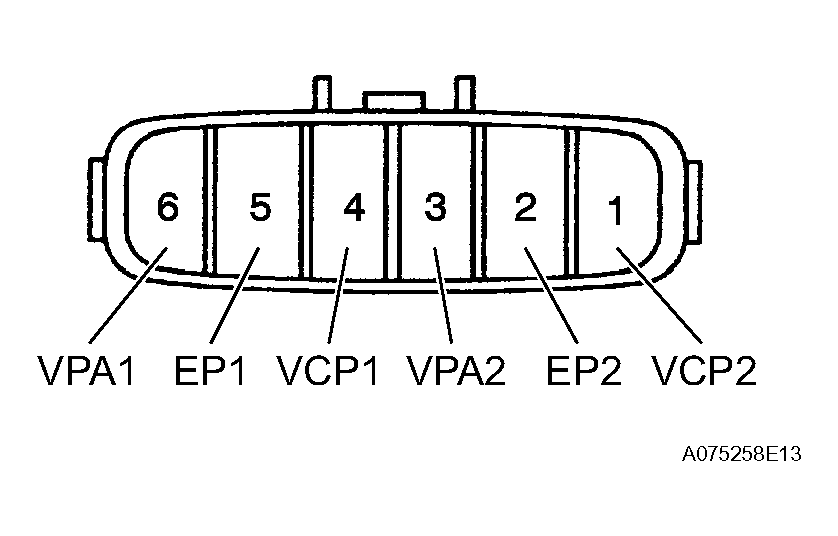

        Fig 1: Inspecting Accelerator Pedal Rod Assembly
        G04493884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
