Accelerator Pedal Rod: Removal

  1. REMOVE ACCELERATOR PEDAL ROD ASSEMBLY
    1. Disconnect the accelerator position sensor connector.
    2. Remove the 2 bolts and the accelerator pedal rod.

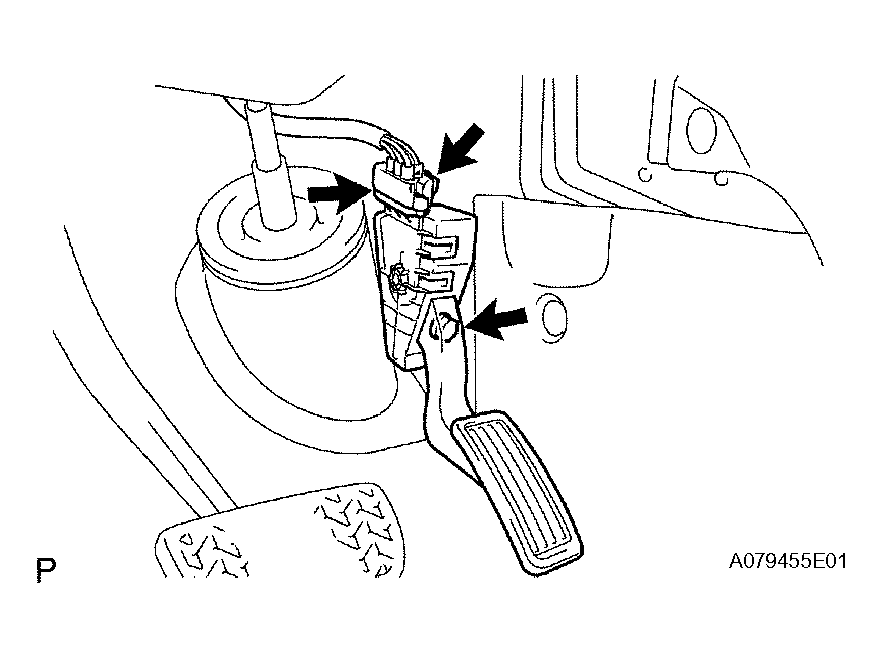

      Fig 1: Removing Accelerator Pedal Rod Assembly
      G04493883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
