Home >> Toyota >> 2006 >> Sienna CE >> Repair and Diagnosis >> Engine Performance >> Engine Control System (3MZ-FE) >> Throttle Body >> Components

Throttle Body: Components

Fig 1: Identifying Throttle Body Components And Replacements (1 Of 2)
G04493859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

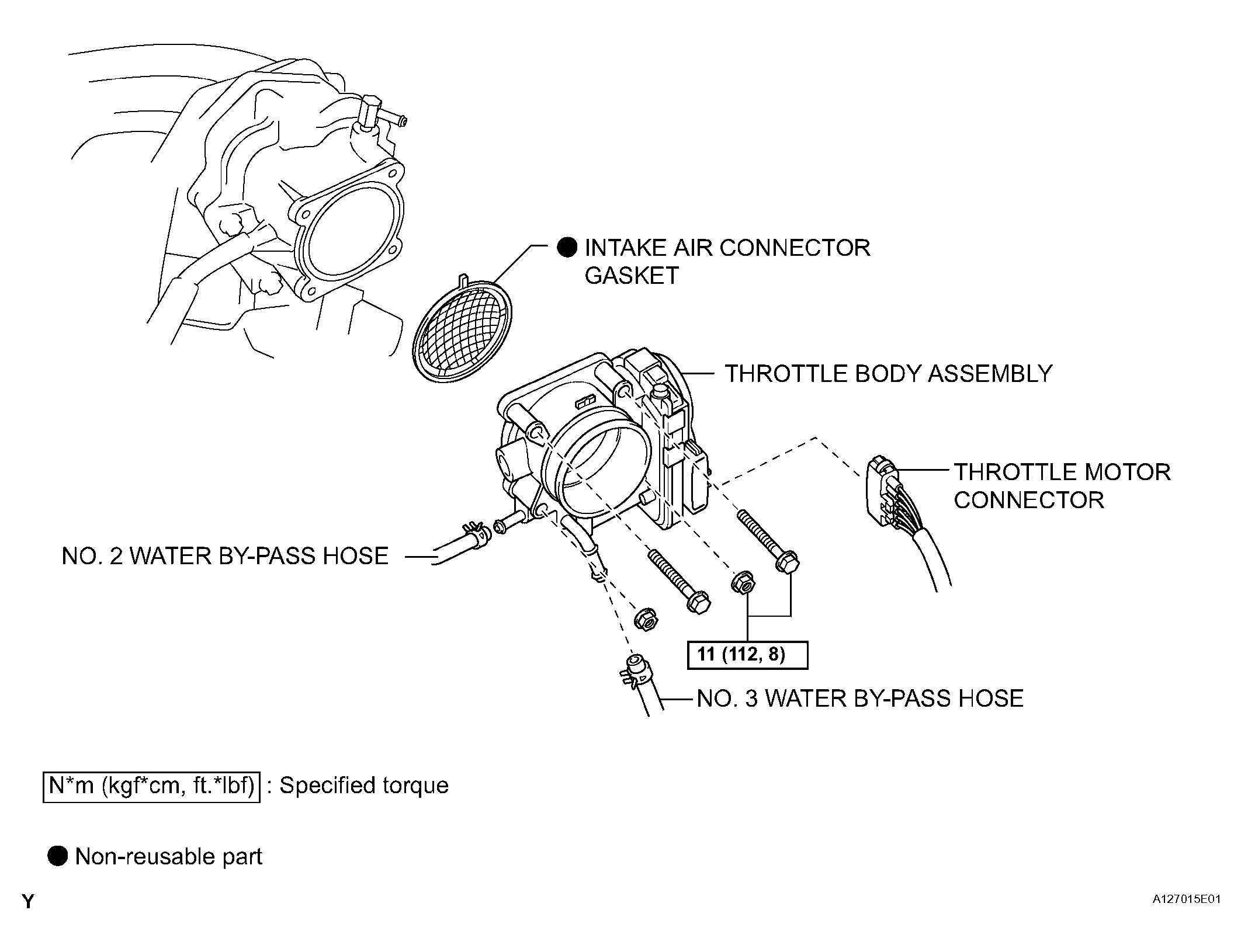

Fig 2: Identifying Throttle Body Components And Replacements (2 Of 2)
G04493860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
