Throttle Body: Inspection
- INSPECT THROTTLE BODY ASSEMBLY
- Resistance inspection

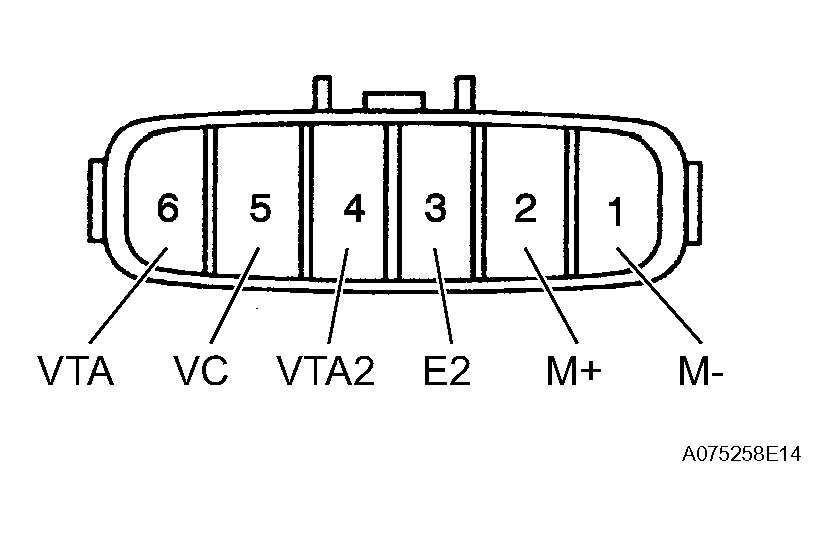

- Using an ohmmeter, measure the resistance between the terminals.
Standard Resistance
THROTTLE BODY ASSEMBLY
| Terminals |
Resistance |
Temperature |
| 2 (M+) - 1 (M-) |
0.3 to 100 Ω |
20°C (68°F) |
