Throttle Body: Components

Fig 1: Throttle Body Replacement Components With Torque Specifications (1 Of 2)
G04407893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

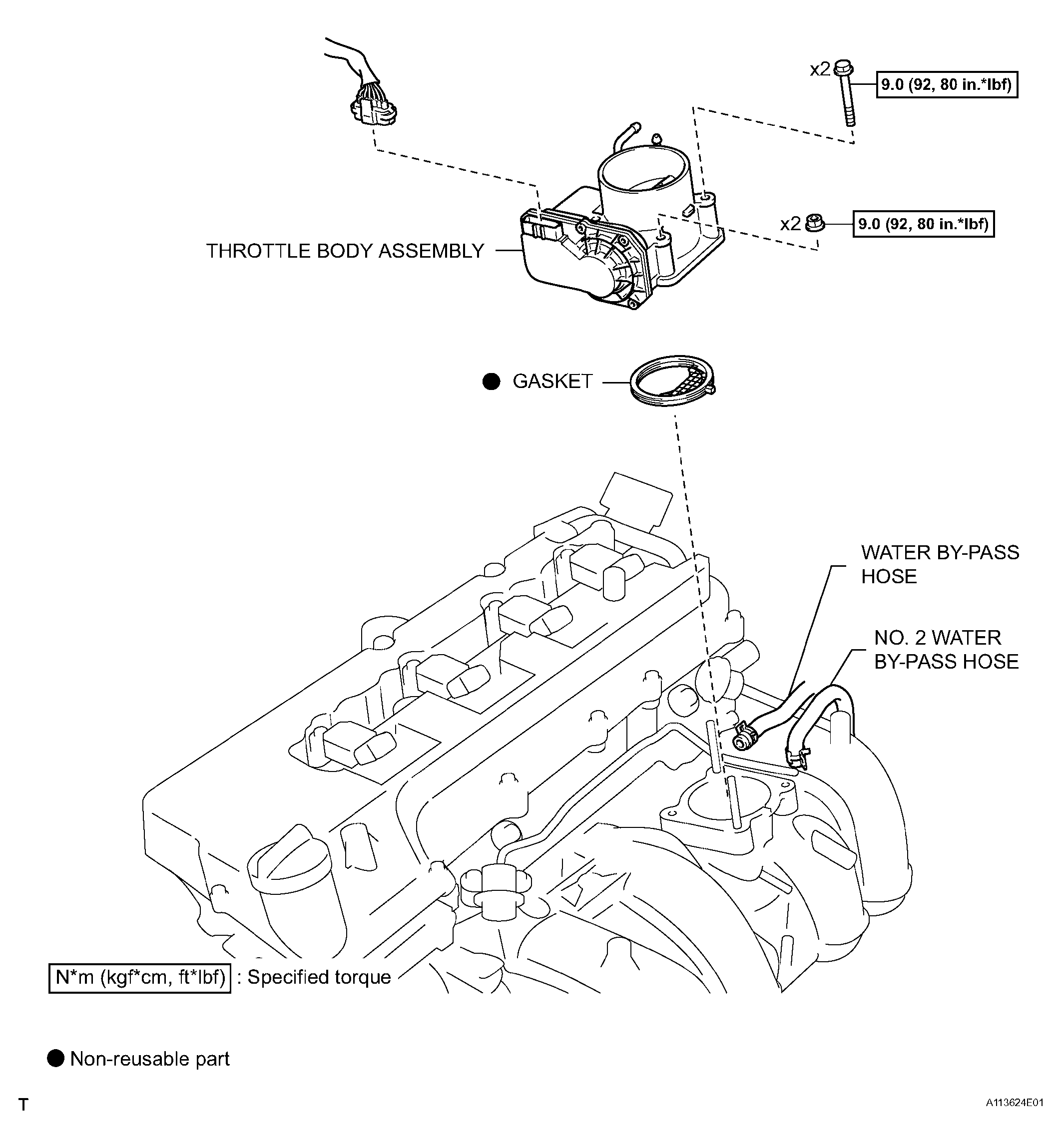

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)
G04407894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
