Home >> Toyota >> 2006 >> Tacoma X-Runner >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Preparation >> Supplemental Restraint System >> SST

Supplemental Restraint System: SST

SST TABLE - SUPPLEMENTAL RESTRAINT SYSTEM

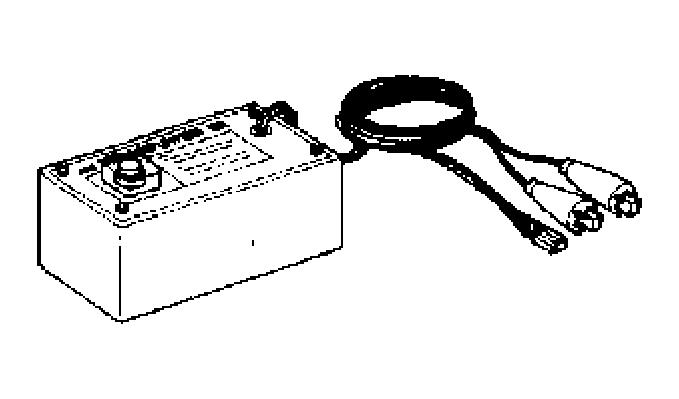

G04406970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00700 SRS Airbag Deployment Tool

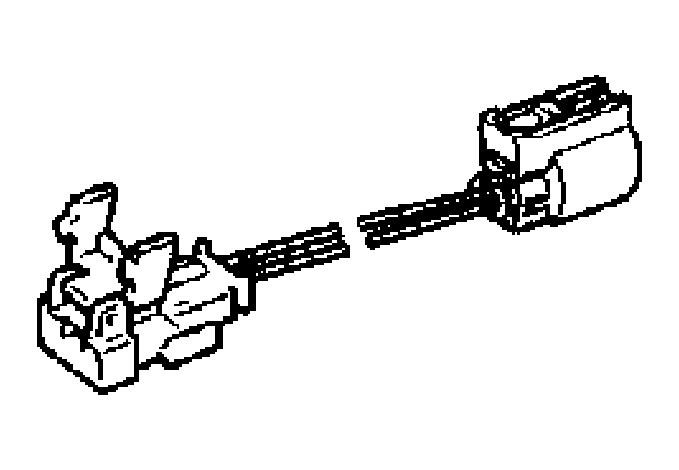

G04406971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00750 Airbag Deployment Wire Sub-harness No.3
G04406972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00780 Airbag Deployment Wire Sub-harness No.6

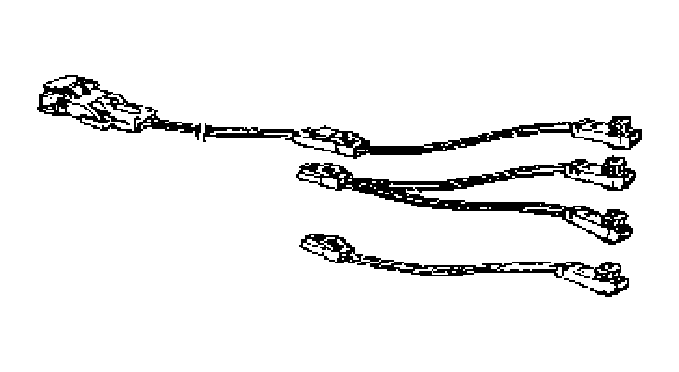

G04406973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00802 Airbag Deployment Wire Sub-Harness No. 8

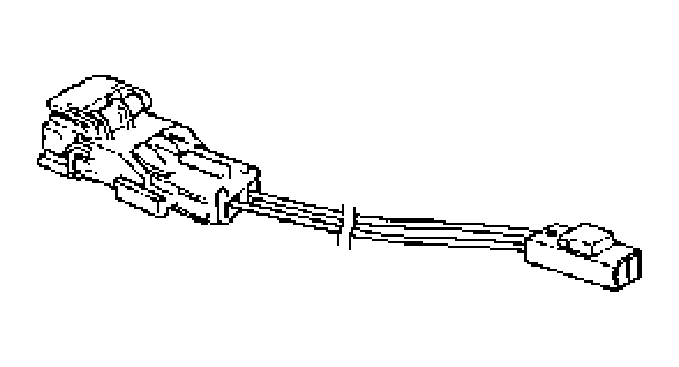

G04406974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-10801) Wire A

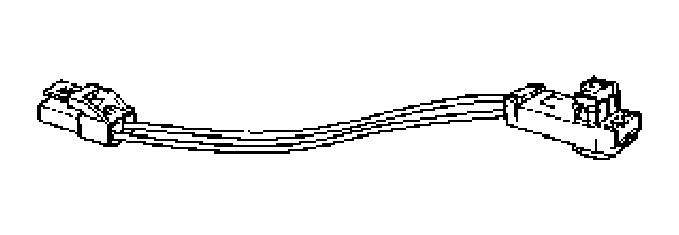

G04406975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-20801) Wire B

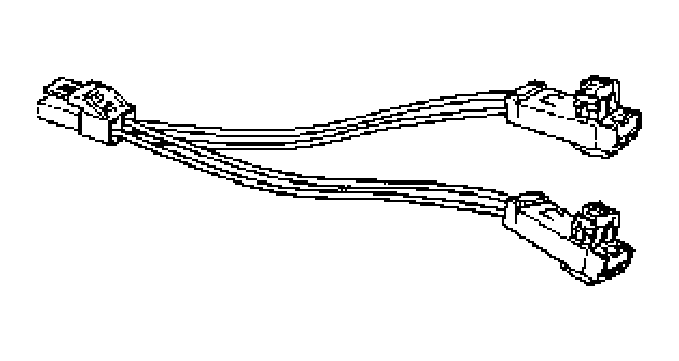

G04406976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-30801) Wire C
G04406977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09843-18040 Diagnosis Check Wire No.2
