Accelerator Pedal: Components

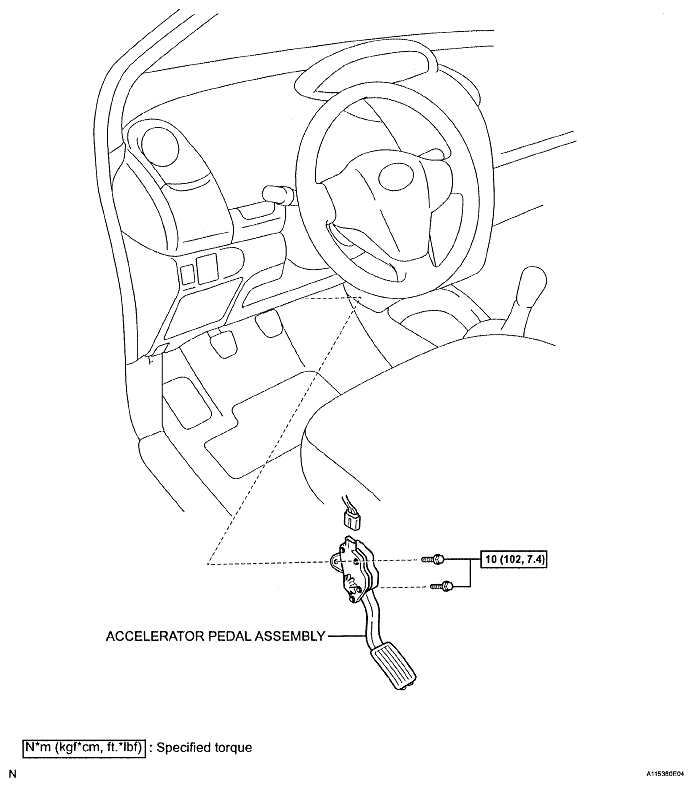

Fig 1: Accelerator Pedal Assembly With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
