Engine Control System: ECM: Component

Fig 1: ECM Replacement Components (1 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: ECM Replacement Components (2 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

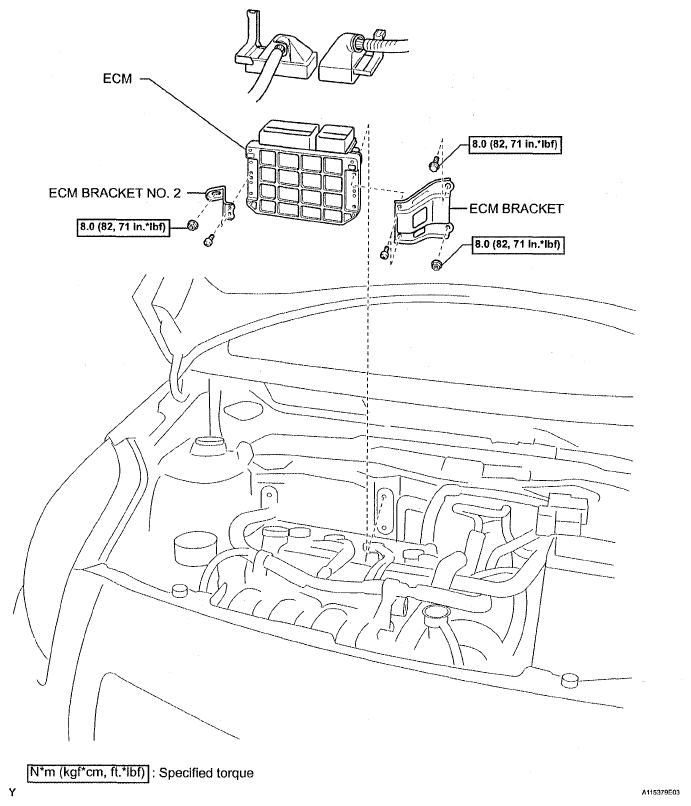

Fig 3: ECM Replacement Components (3 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
