Home >> Toyota >> 2006 >> Yaris CE, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> Engine Coolant Temperature Sensor >> Components

Engine Coolant Temperature Sensor: Components

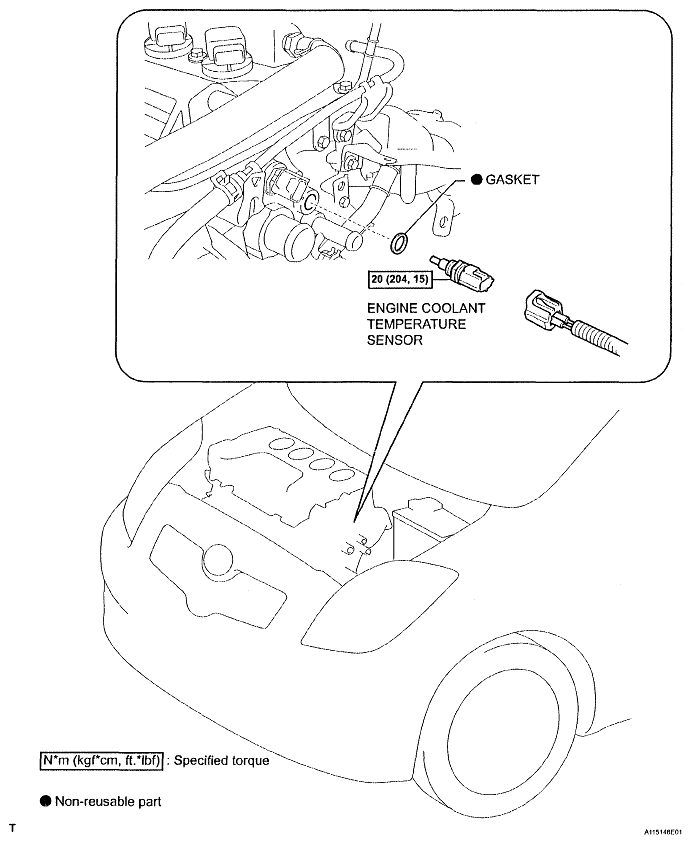

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications

G04828394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
