Home >> Toyota >> 2006 >> Yaris CE, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> SFI System >> ECM Power Source Circuit >> Wiring Diagram

ECM Power Source Circuit: Wiring Diagram

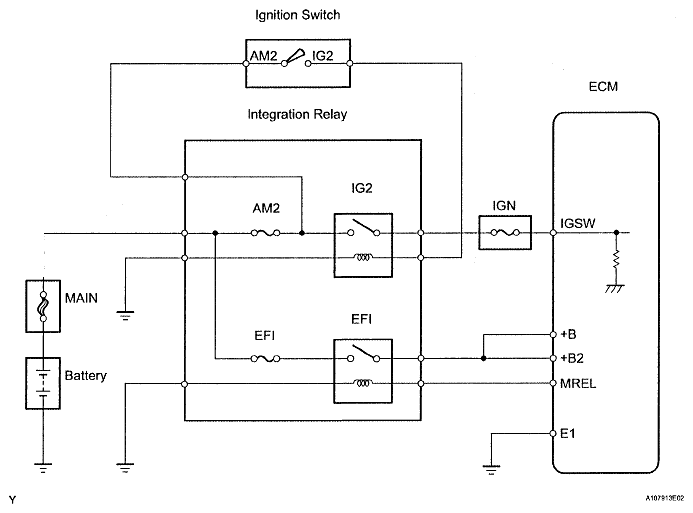

Fig 1: Identifying ECM Power Source Circuit Wiring Diagram

G04828324

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
