Yaris CE, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
SFI System
>>
Fuel Pump Control Circuit
>>
Wiring Diagram

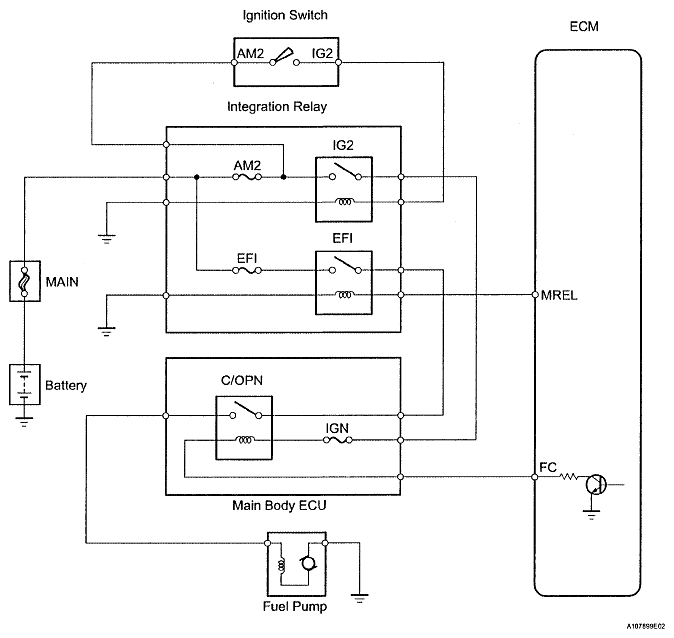

Fuel Pump Control Circuit: Wiring Diagram
Fig 1: Identifying Fuel Pump Control Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
