Parts Location

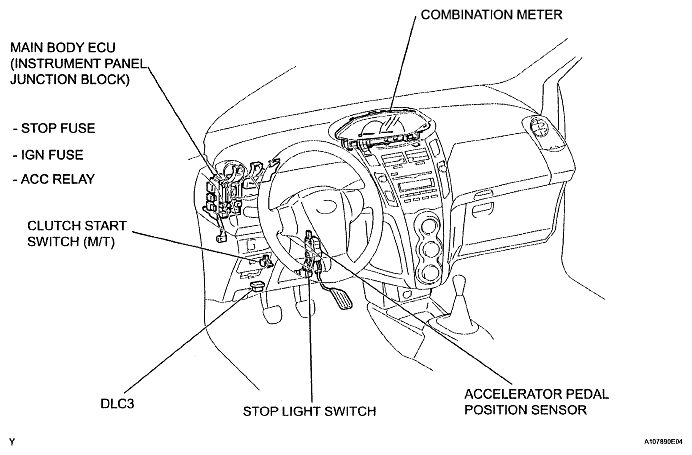

Fig 1: Identifying Engine Control System Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

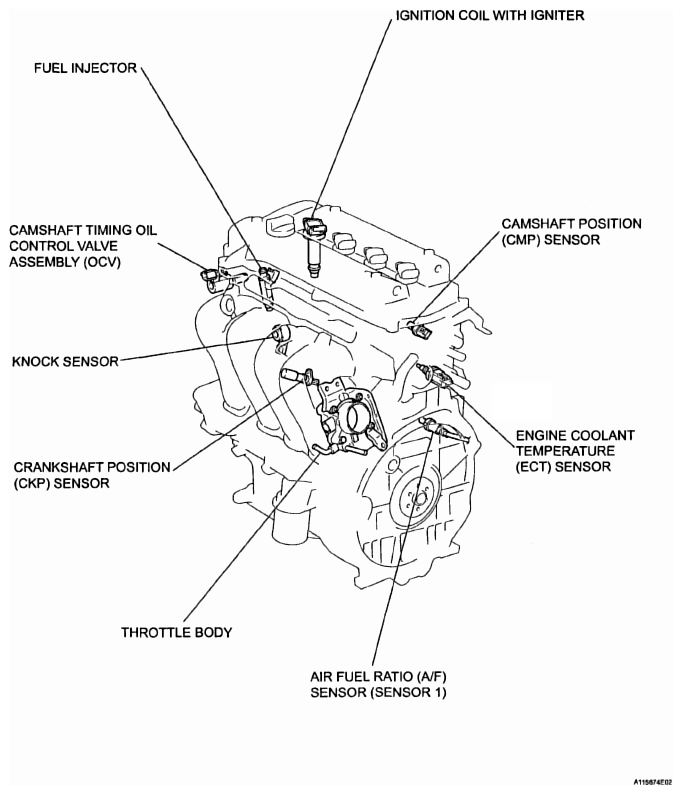

Fig 2: Identifying Engine Control System Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

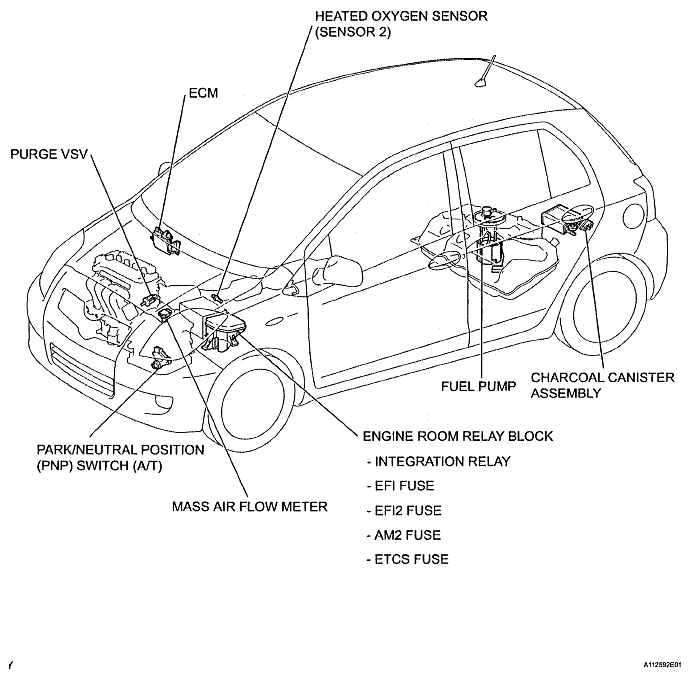

Fig 3: Identifying Engine Control System Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
