Throttle Body: Components

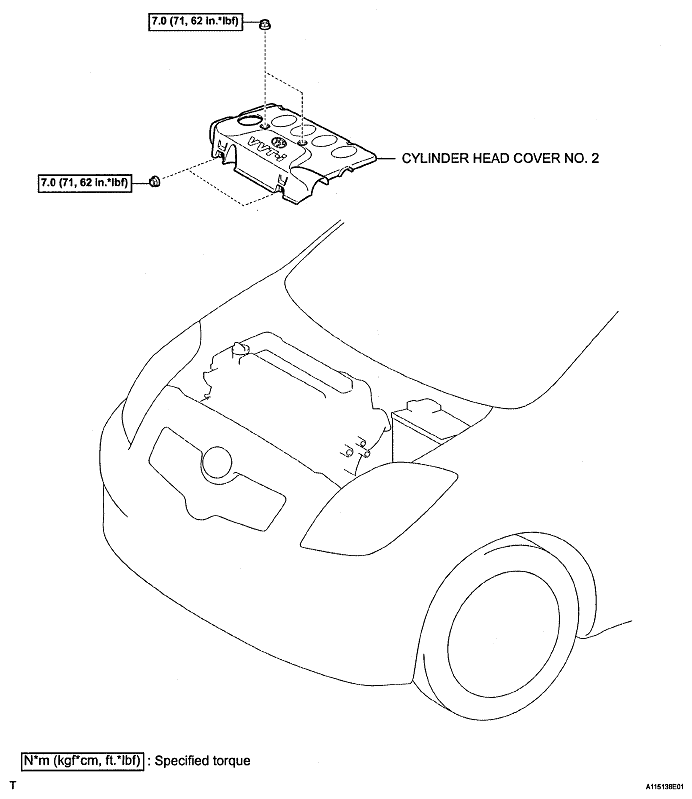

Fig 1: Throttle Body Replacement Components (1 Of 3) With Torque Specifications
G04828400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

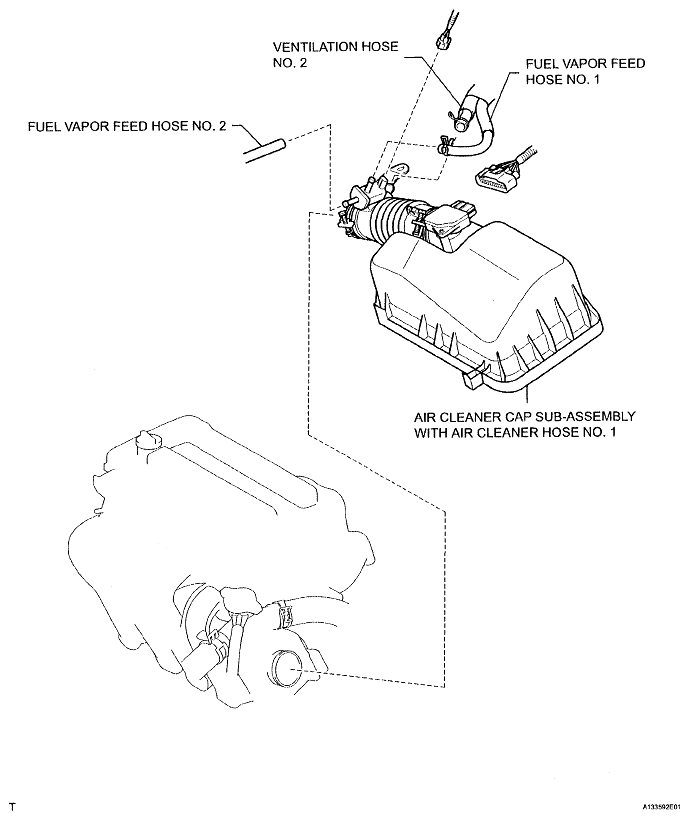

Fig 2: Identifying Throttle Body Components (2 Of 3)
G04828401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Knock Sensor Replacement Components (3 Of 5) With Torque Specifications
G04828402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
