Back Window Glass: Installation

  1. INSTALL BACK WINDOW GLASS STOPPER NO.2
    1. Coat the installation part of the stopper with Primer G.
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Dispose of any excess Primer G.
      • Do not apply too much Primer G.
    2. Install 2 new stoppers to the glass as shown in the illustration.

      Specification

      MEASUREMENT AREA

      Area Measurement
      A 12.5 mm (0.492 in.)
      B 50.0 mm (1.968 in.)

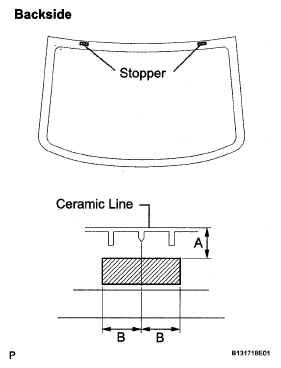

    Fig 1: Identifying Stoppers To Glass
    G05006609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BACK WINDOW GLASS STOPPER NO.1
    1. Install 2 new stoppers to the vehicle body as shown in the illustration.
  3. INSTALL BACK WINDOW MOLDING OUTSIDE UPPER
    1. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Dispose of any excess Primer G.
      • Do not apply too much Primer G.
    2. Install the molding.
    Fig 2: Identifying Stoppers To Vehicle Body
    G05006610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL BACK WINDOW GLASS
    1. Position the glass.
      1. Using a suction cup, place the glass in the correct position.
      2. Check that the whole contact surface of the glass rim perfectly even.
      3. Place reference marks on the glass and vehicle body.
        NOTE: Check that the stoppers are attached to the vehicle body correctly.

        HINT:

        When reusing the glass, check and correct the reference mark positions.

        Fig 3: Identifying Window Glass Installation Position
        G05006611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Using a suction cup, remove the glass.
    2. Using a brush, coat the exposed areas of the vehicle body, where all adhesive has been removed with Primer M.
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not coat the area adhesive is still remaining with Primer M.
      • Dispose of any excess Primer M.
      • Do not apply too much Primer M.
    3. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer M.

      HINT:

      If a non-specified area is coated by accident, wipe off the primer with a clean a piece of cloth before it dries out.

      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Dispose of any excess Primer M.
      • Do not apply too much Primer M.

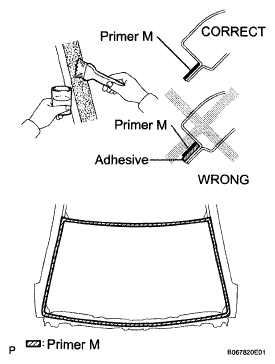

      Fig 4: Identifying Correct Way Of Primer Coating
      G05006612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Apply adhesive.

      Adhesive:

      Part No. 08850-00801 or equivalent

      1. Cut off the tip of the cartridge nozzle as shown in the illustration.

        HINT:

        After cutting off the tip, use adhesive within the time described in the table below.

        Usage time frame

        TEMPERATURE SPECIFICATION

        Temperature Usage time frame
        35°C(95°F) 15 minutes
        20°C(68°F) 1 hour 40 minutes
        5°C(41°F) 8 hours
      2. Load a sealer gun with the cartridge.
      3. Coat the glass with adhesive as shown in the illustration.

      Specification

      MEASUREMENT AREA

      Area Measurement
      a 8.0 mm (0.315 in.)
      b 12.0 mm (0.472 in.)
      c 7.0 mm (0.275 in.)

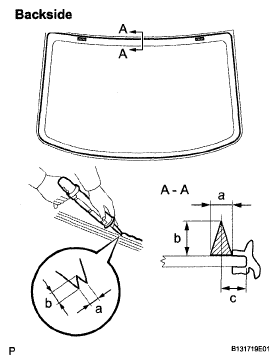

      Fig 5: Applying Adhesive On Glass
      G05006613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the glass.
      1. Using a suction cup, position the glass so that the reference marks are aligned. Press it in gently along the rim.
        NOTE:
        • Allow the primer coating to dry for 3 minutes or more.
        • Check that the stoppers are attached to the vehicle body correctly.
        • Check that there is a small gap between the vehicle body and glass.
      2. Lightly press the front surface of the glass to ensure that the glass is securely fit to the vehicle body.
        Fig 6: Identifying Window Glass Installation Position
        G05006614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Using a scraper, remove any excess adhesive.

        HINT:

        Make sure that adhesive is applied up to the glass rim.

        NOTE: The vehicle should not be driven until the time indicated in the table below has elapsed after applying adhesive.

        Minimum time

      Fig 7: Applying Excess Adhesive
      G05006615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEMPERATURE SPECIFICATION

      Temperature Minimum time prior to driving vehicle
      35°C(95°F) 1 hour 30 minutes
      20°C(68°F) 5 hours
      5°C(41°F) 24 hours
  5. INSPECT FOR LEAKS AND REPAIR
    1. Conduct a leak test after the adhesive has completely hardened.
    2. Seal any leaks with auto glass sealer.
  6. INSTALL ROOF HEADLINING ASSEMBLY
  7. INSTALL REAR ROOM LIGHT ASSEMBLY
  8. INSTALL ASSIST GRIP SUB-ASSEMBLY
  9. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
  10. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER RH  (See INSTALLATION )
  11. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER LH  (See INSTALLATION )
  12. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
  13. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
