Power Window Master Switch Power Source Circuit: Wiring Diagram

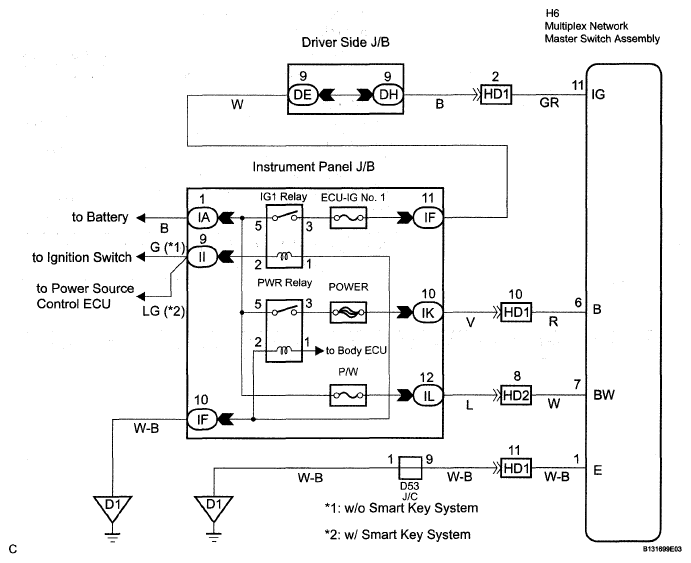

Fig 1: Power Window Master Switch Power Source Circuit - Wiring Diagram

G05006552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
