Window Lock Signal Circuit: Wiring Diagram

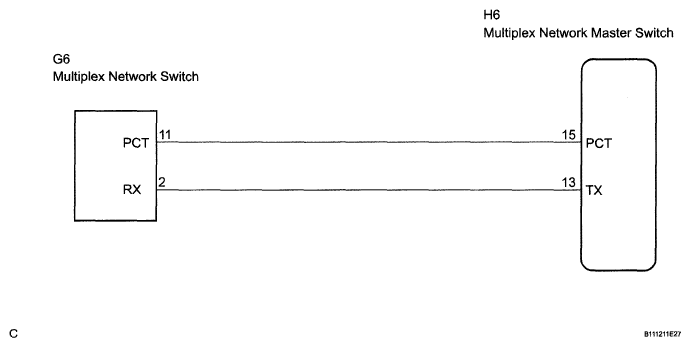

Fig 1: Window Lock Signal Circuit - Wiring Diagram

G05006574

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
