Multiplex Communication System - AVC-LAN: Notes

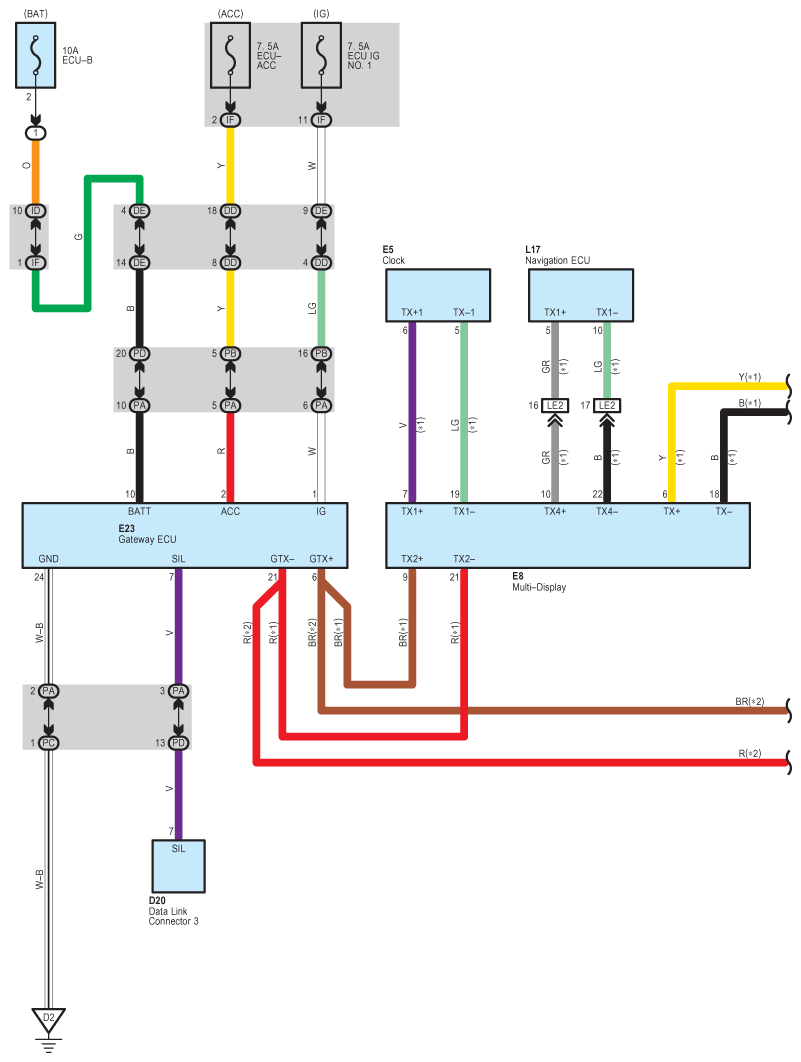

Fig 1: Multiplex Communication (AVC-LAN) System Wiring Diagram (1 Of 2)
G08780732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

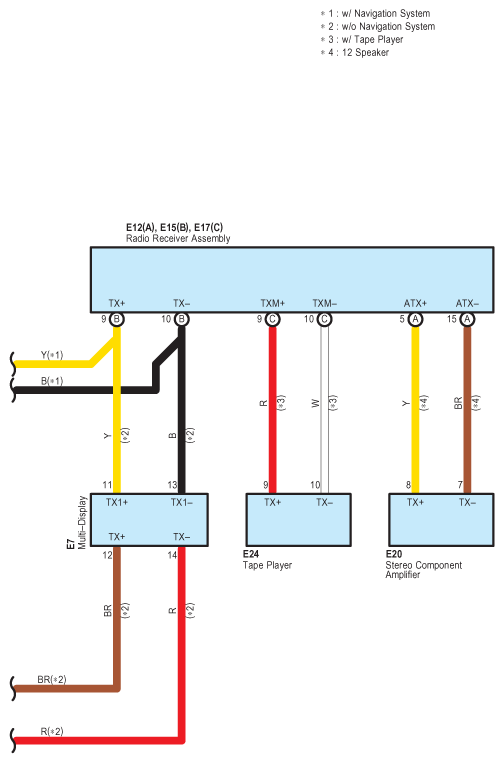

Fig 2: Multiplex Communication (AVC-LAN) System Wiring Diagram (2 Of 2)
G08780733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
