Starting without Smart Key System: Notes

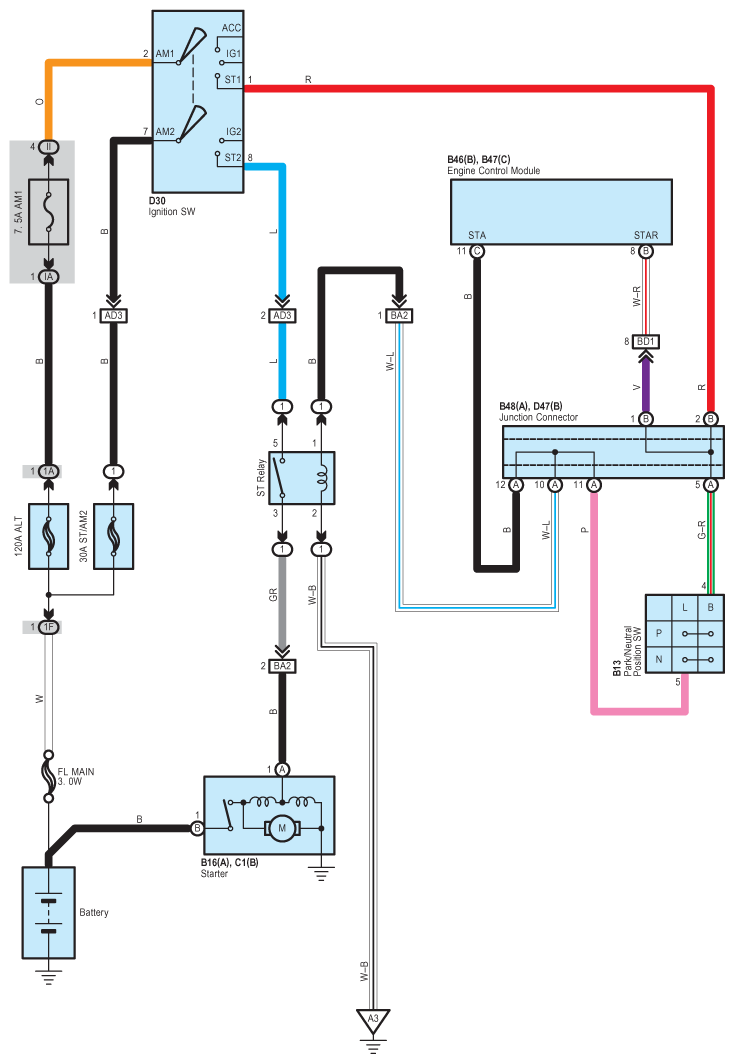

Fig 1: Starting Without Smart Key System Wiring Diagram

G08780701

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
