Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

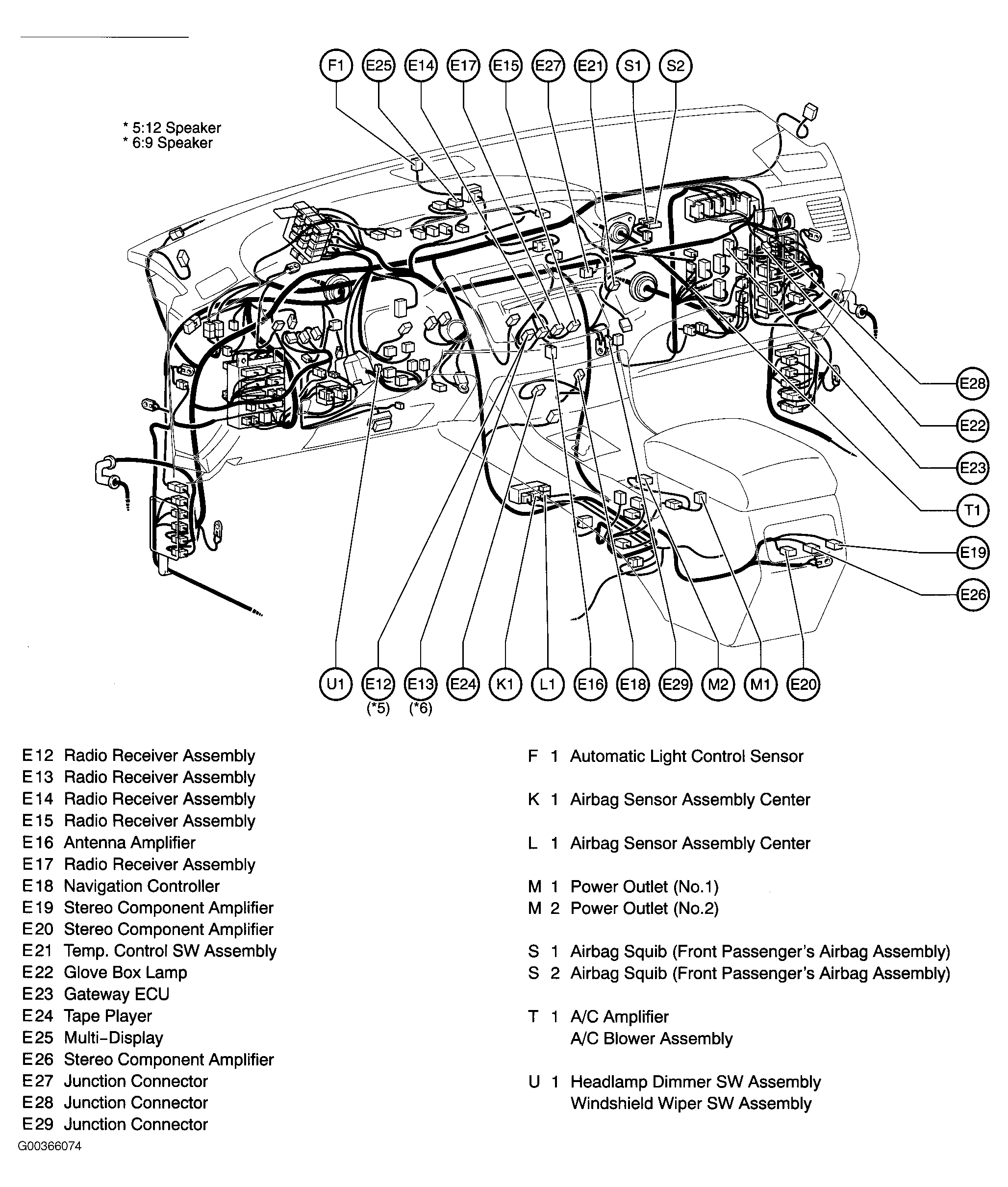

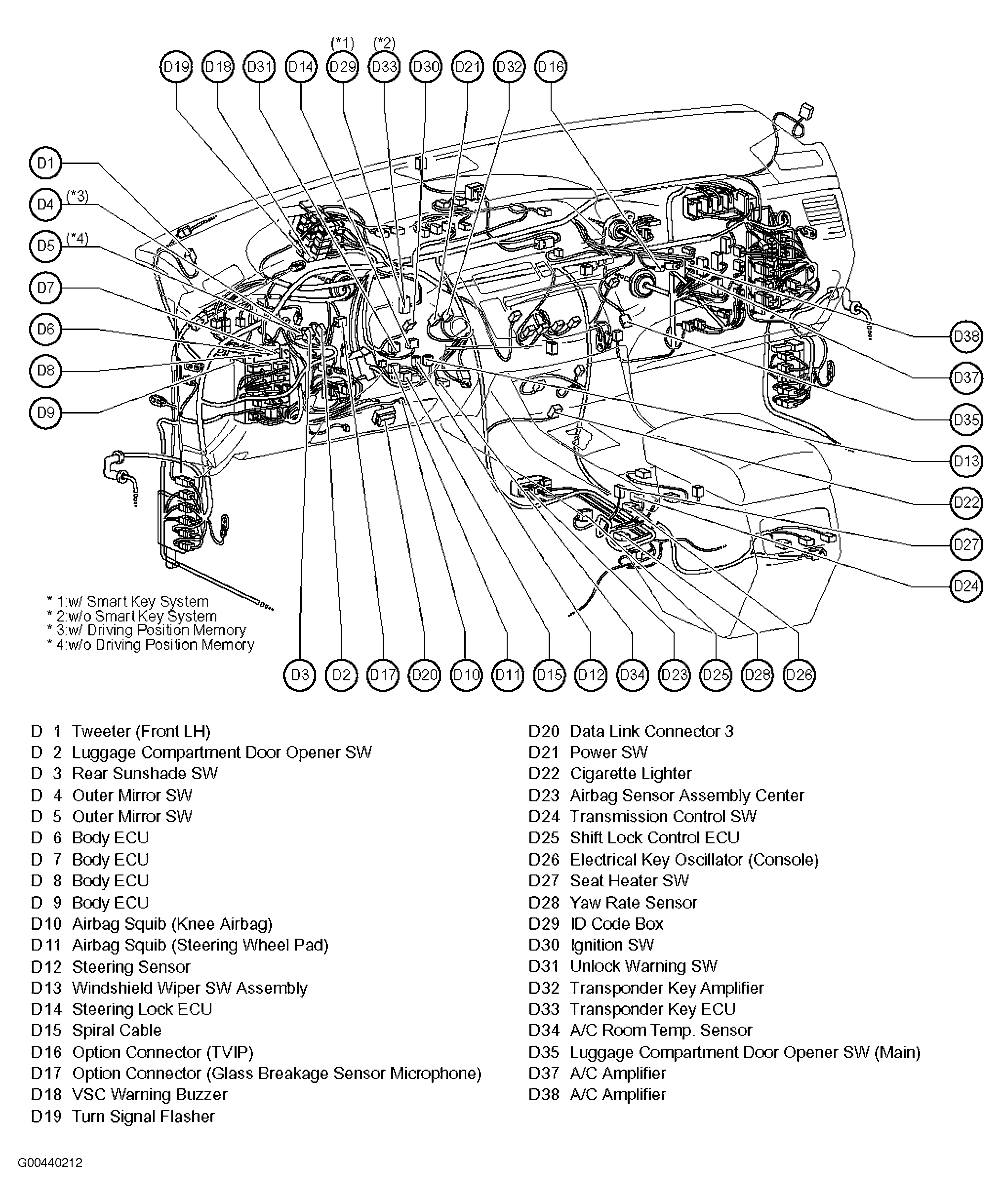

Fig 2: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

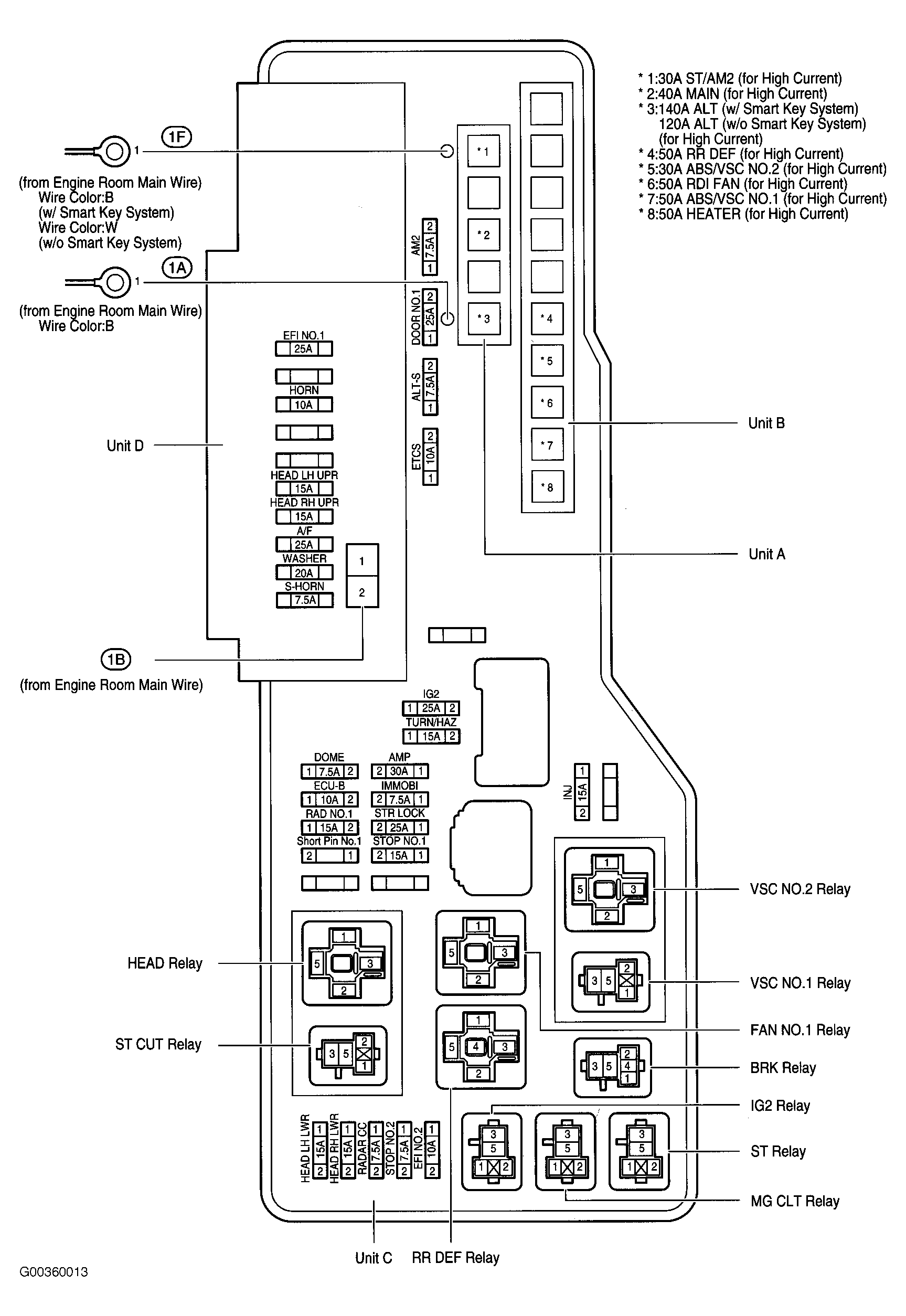

Fig 3: Engine Room R/B & J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM JUNCTION BLOCK RELAY IDENTIFICATION

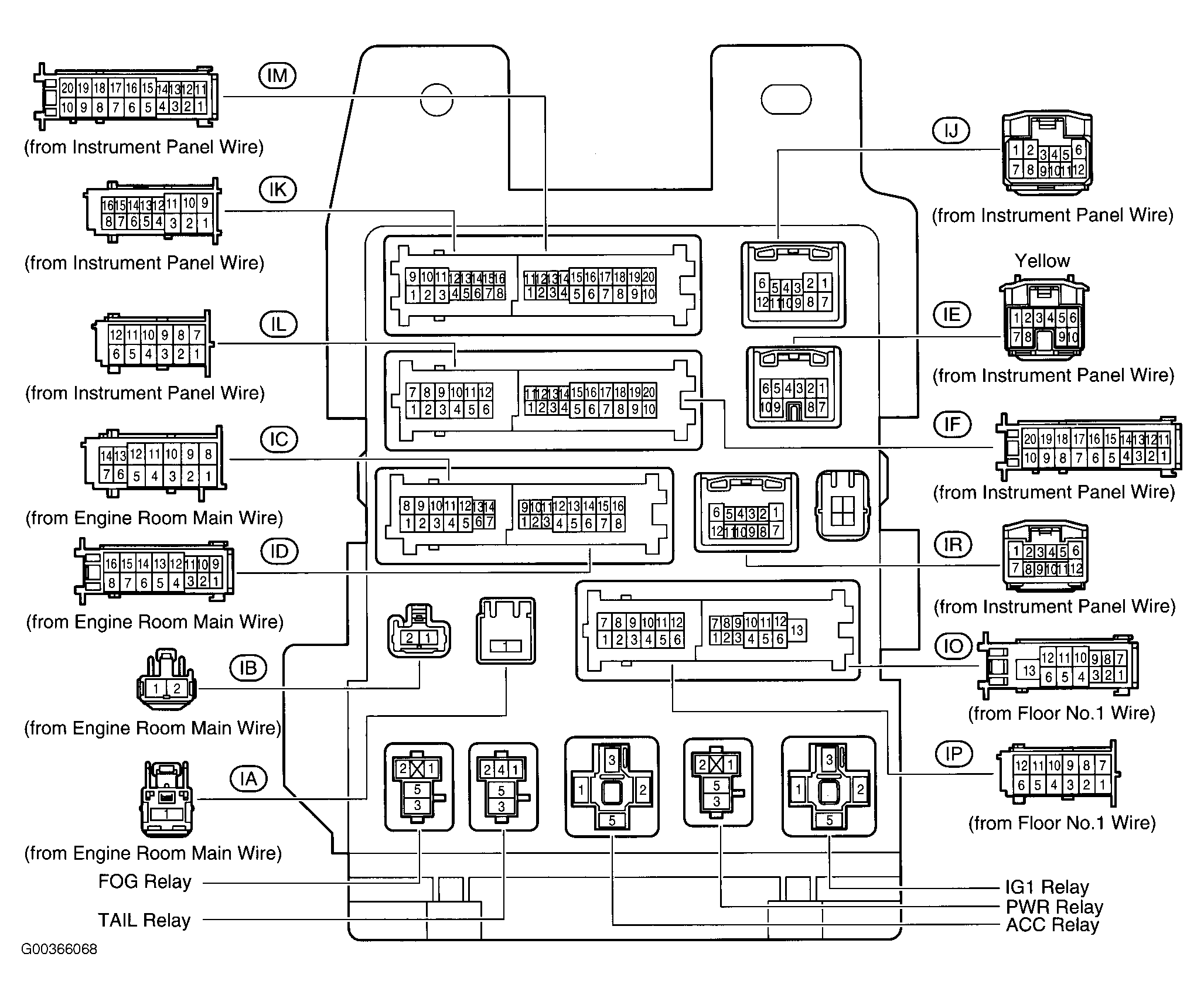

Fig 4: Instrument Panel J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVERS SIDE JUNCTION BLOCK RELAY IDENTIFICATION

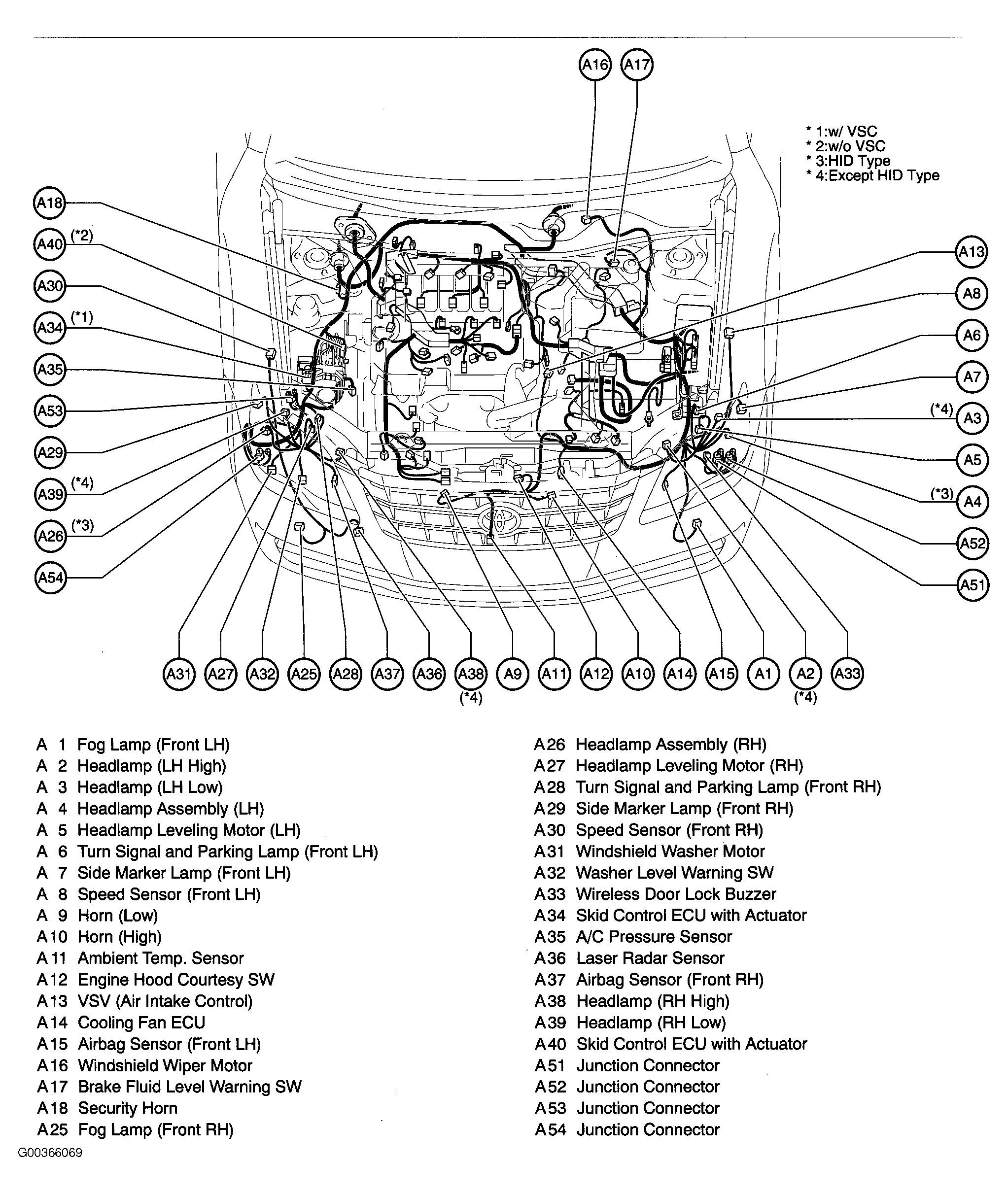

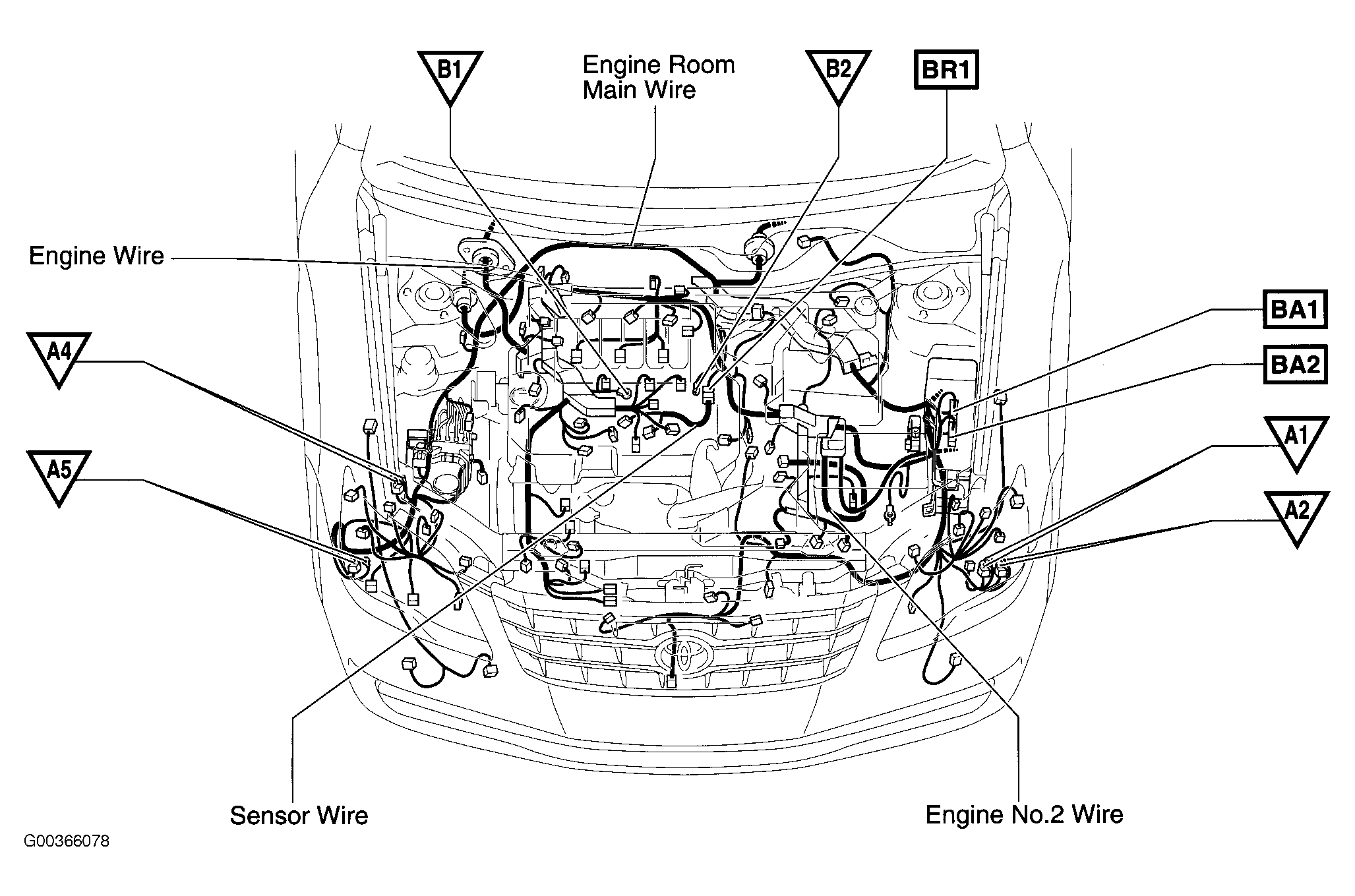

Fig 5: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

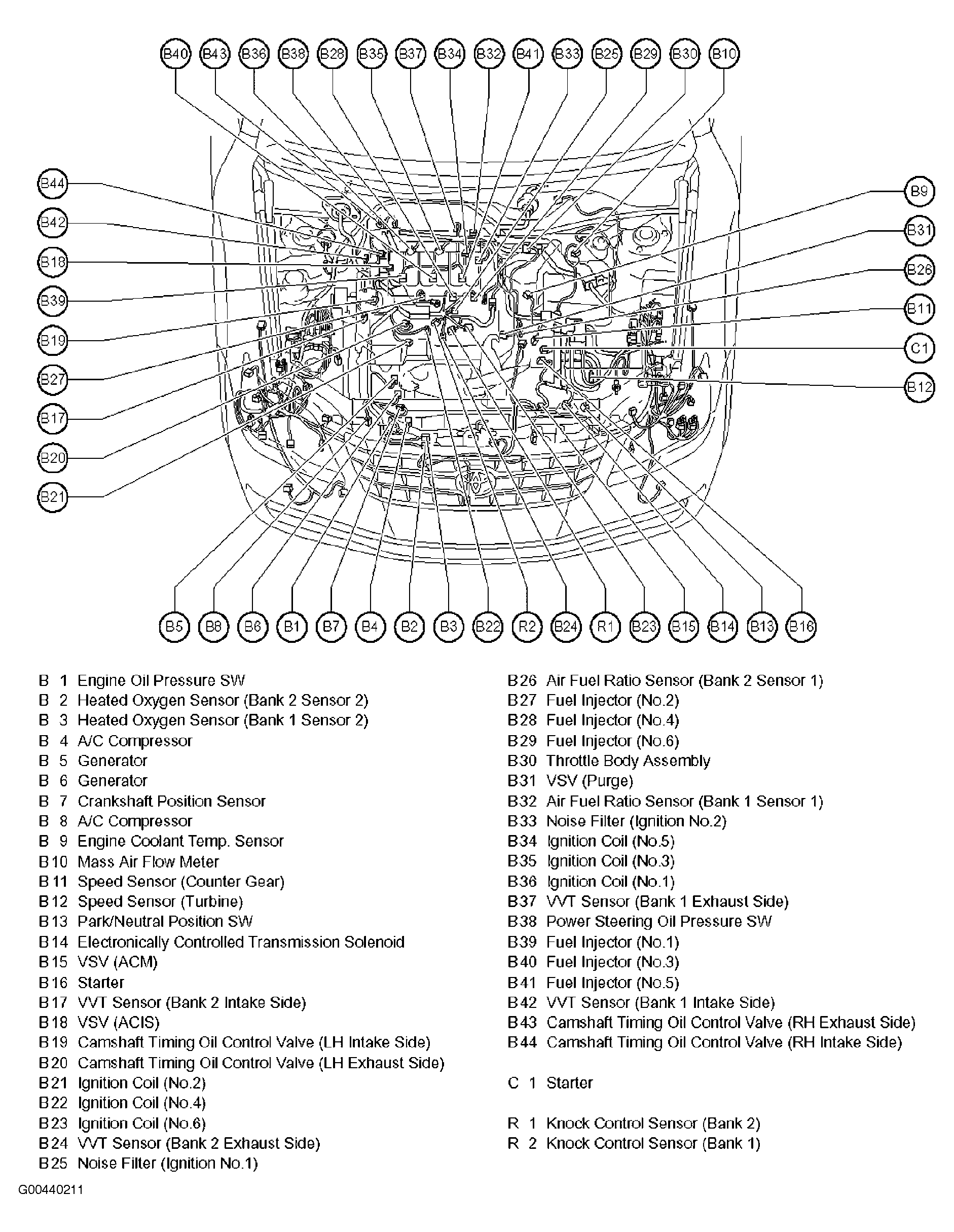

Fig 6: Engine

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

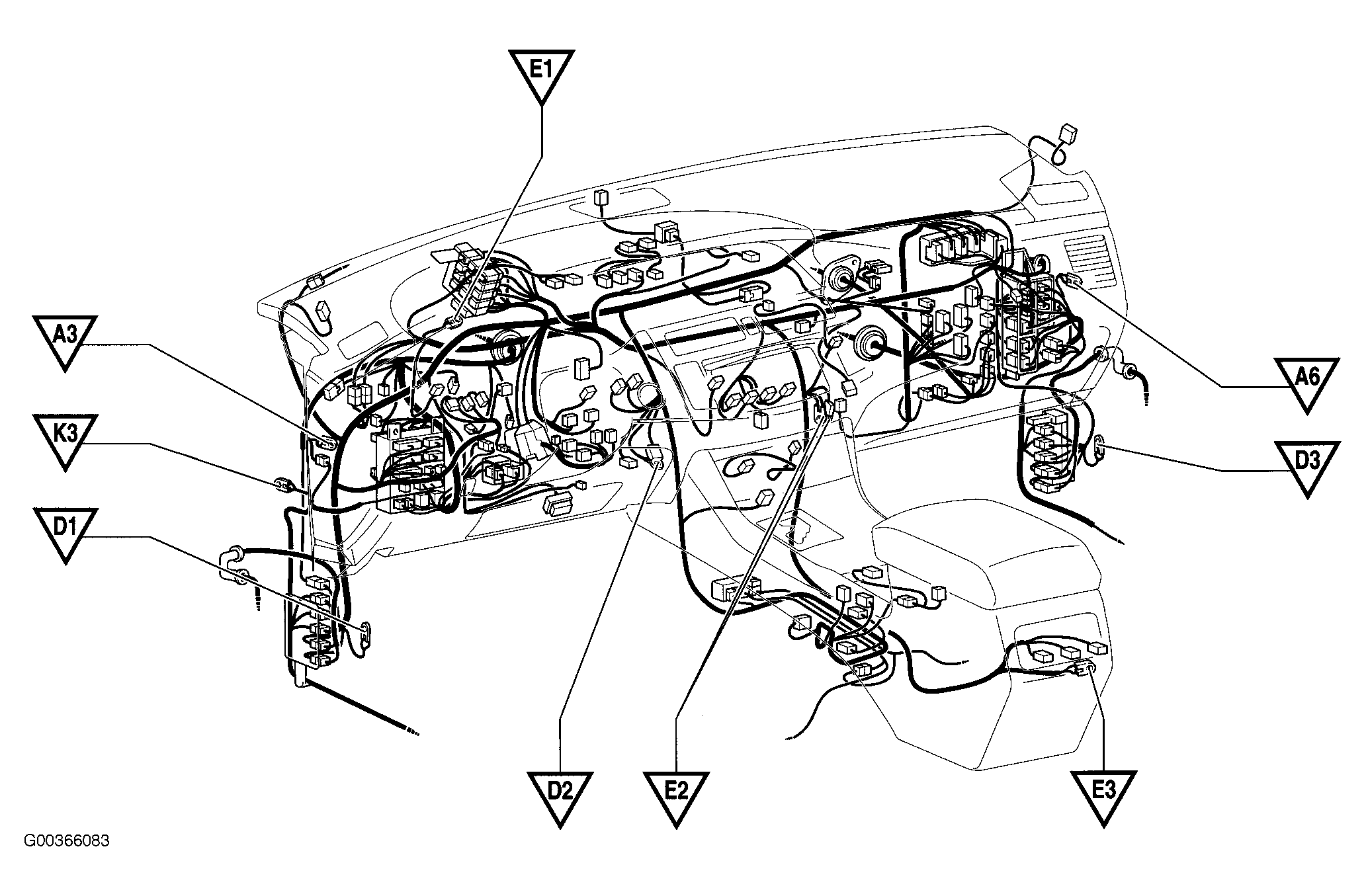

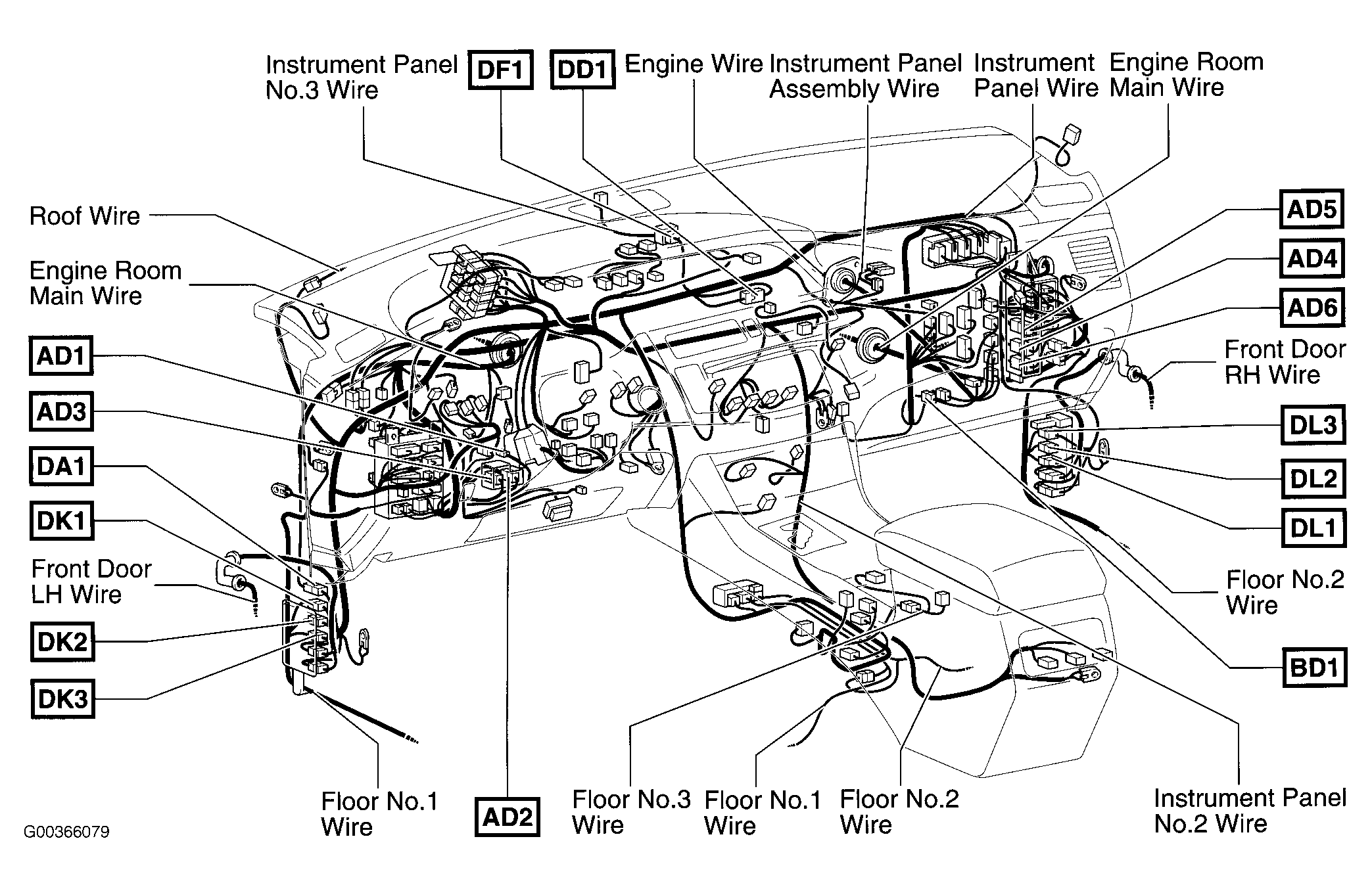

Fig 7: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

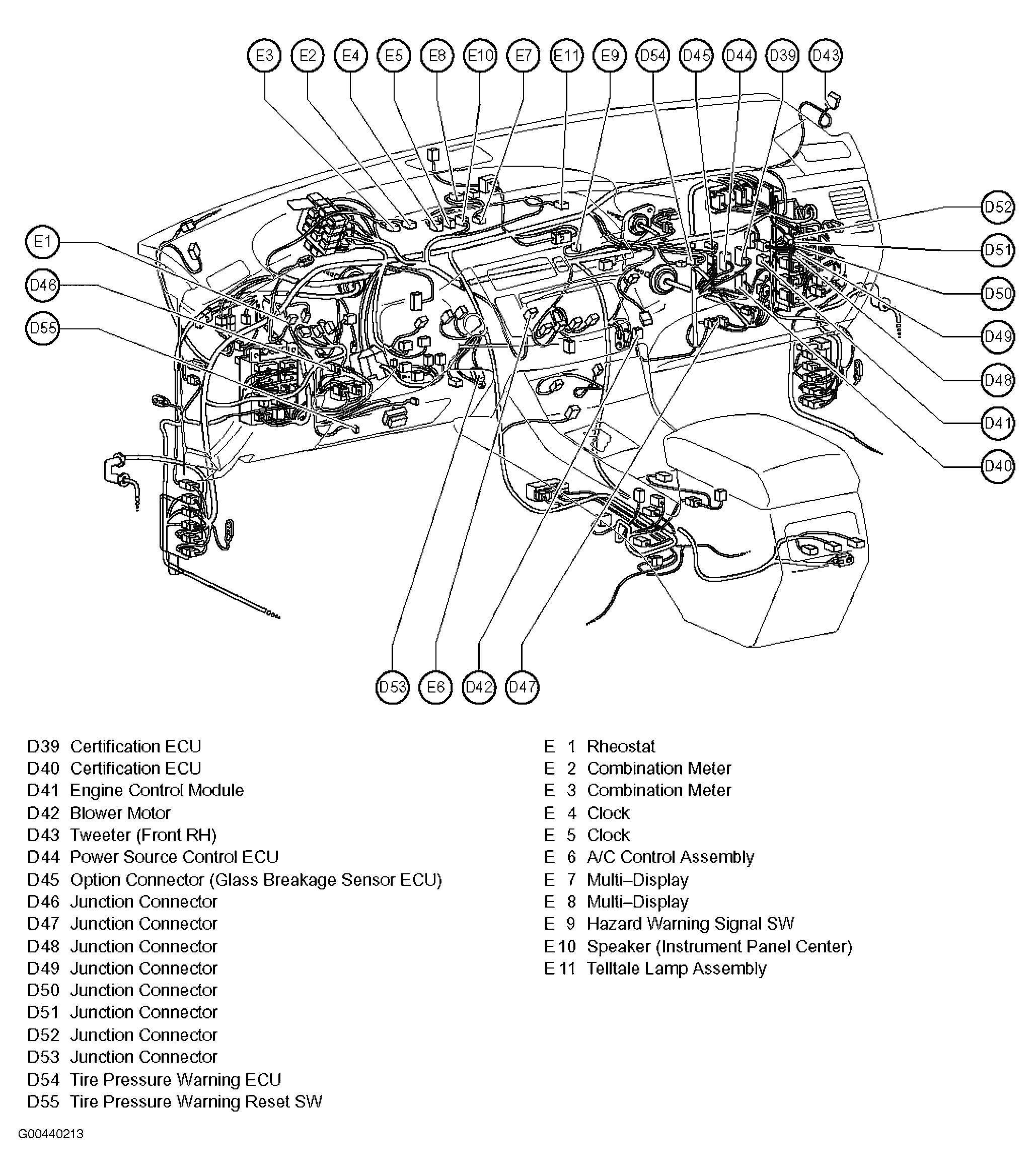

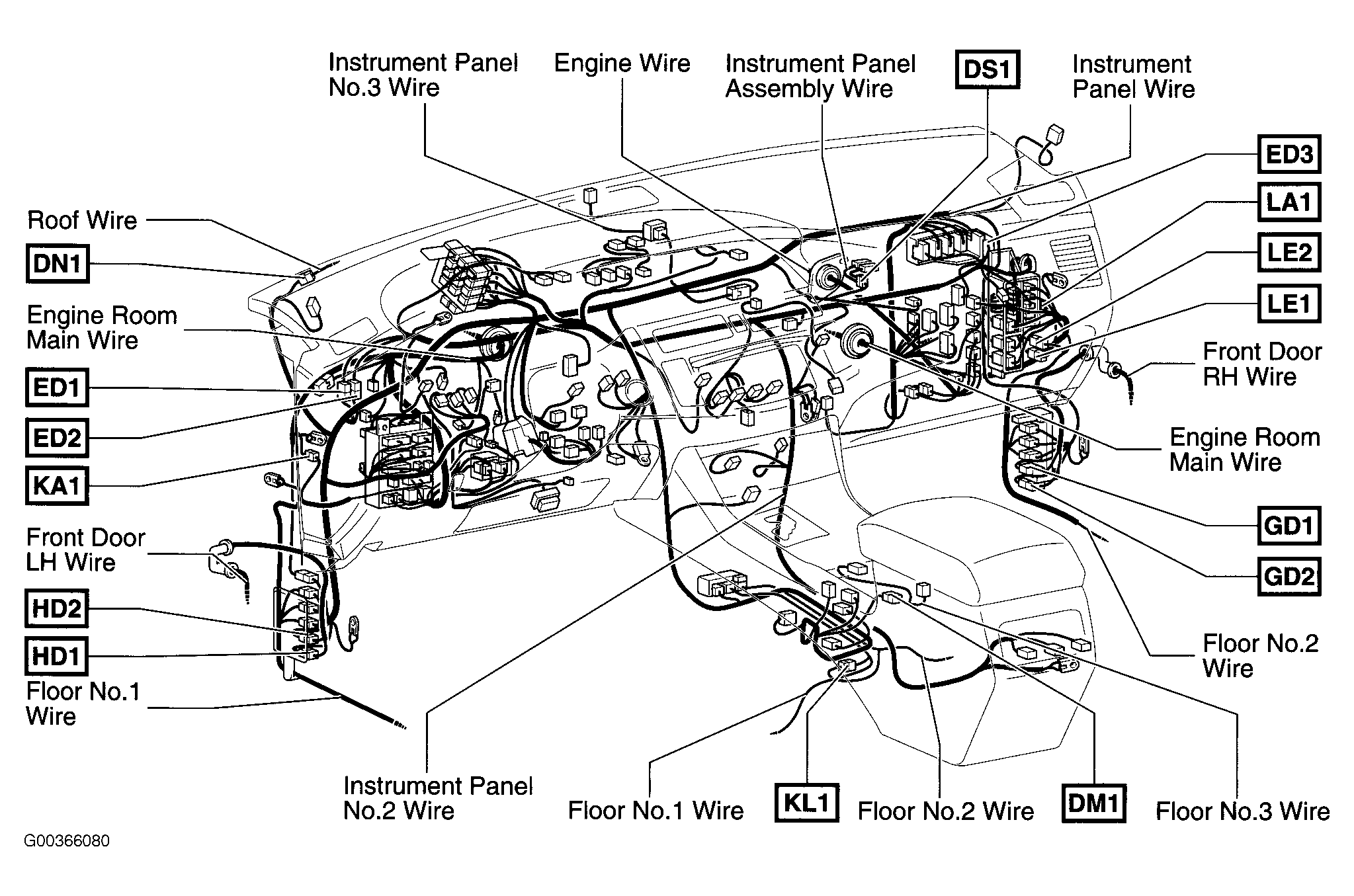

Fig 8: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

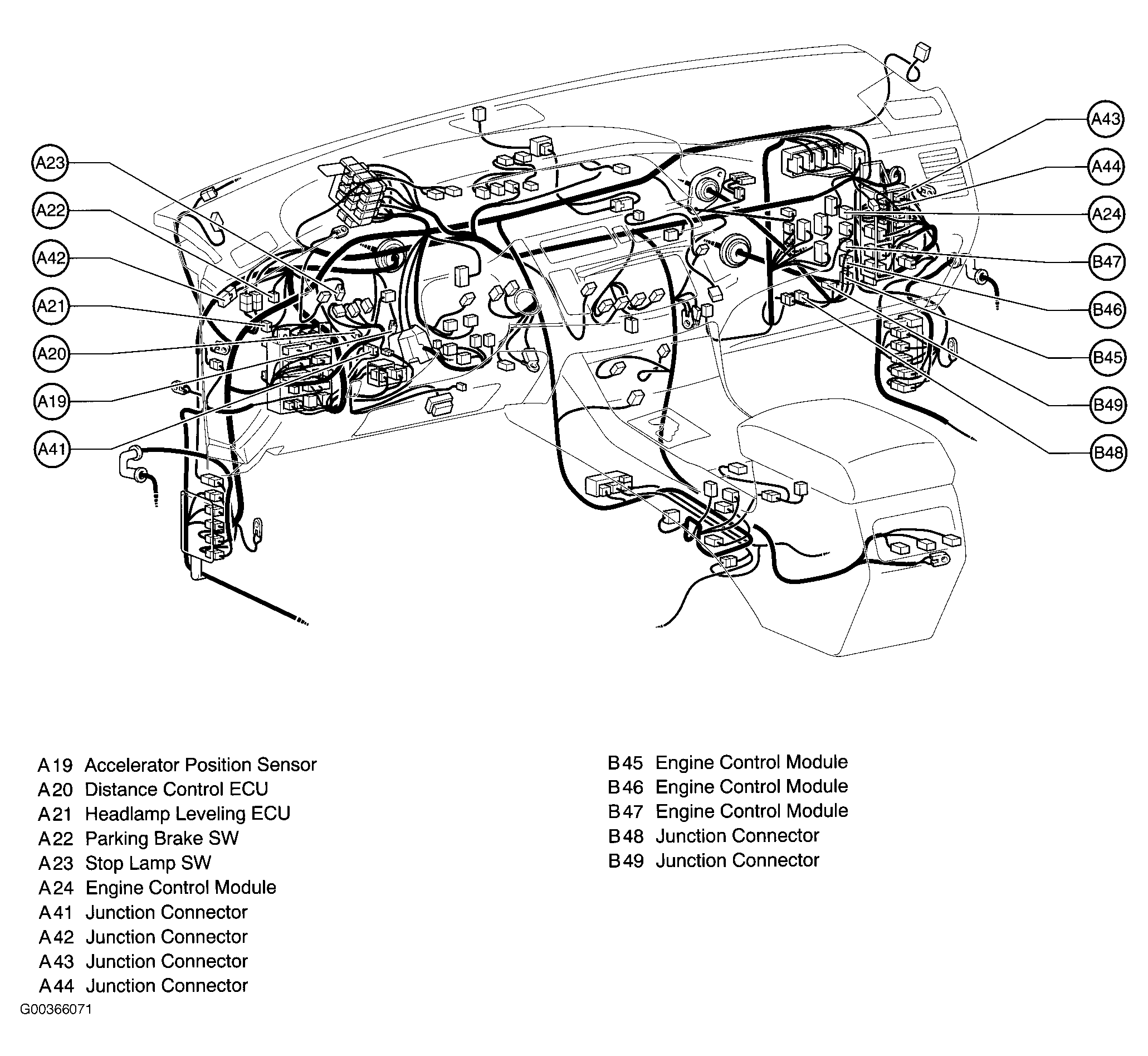

Fig 9: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

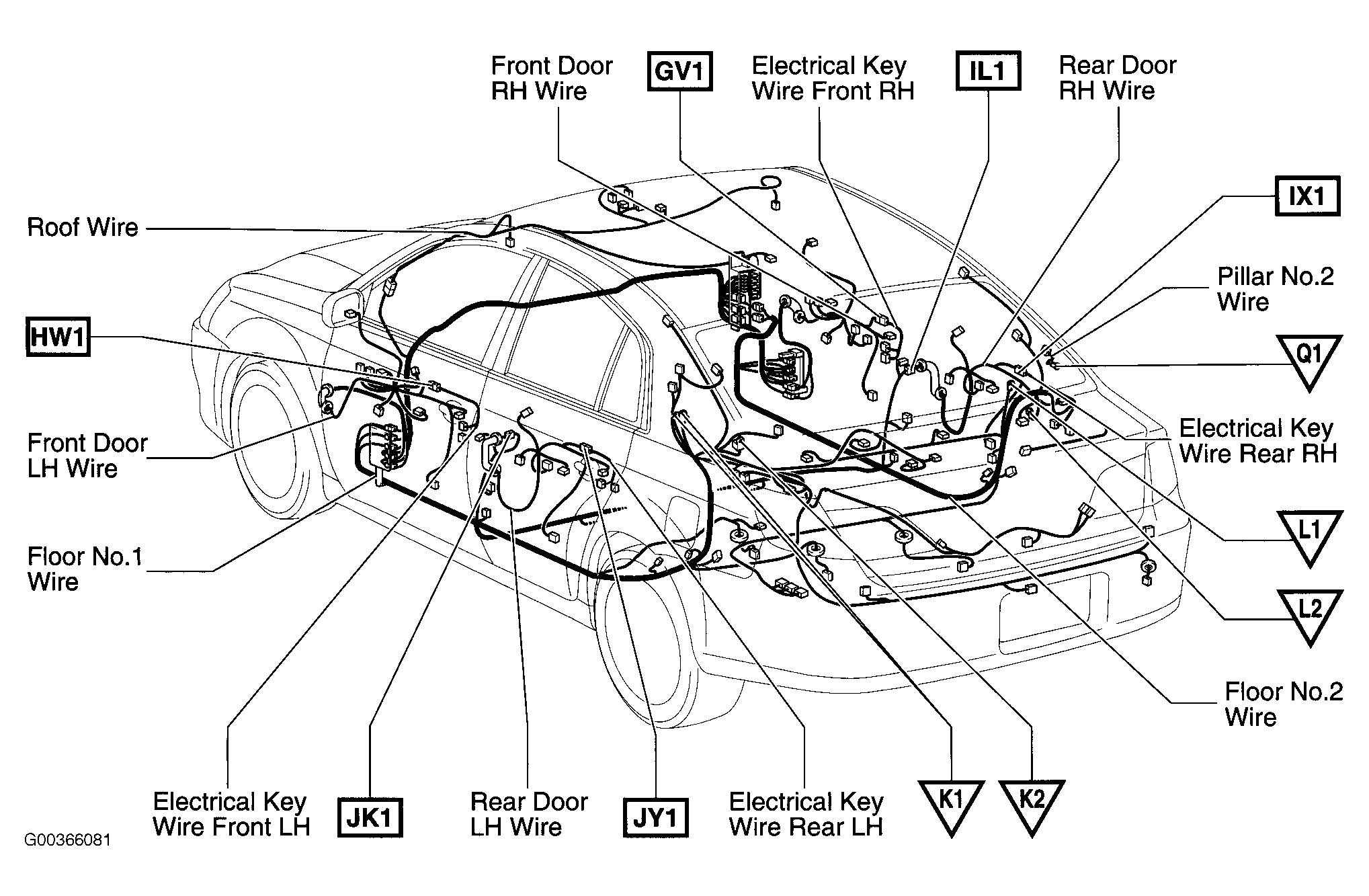

Fig 11: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

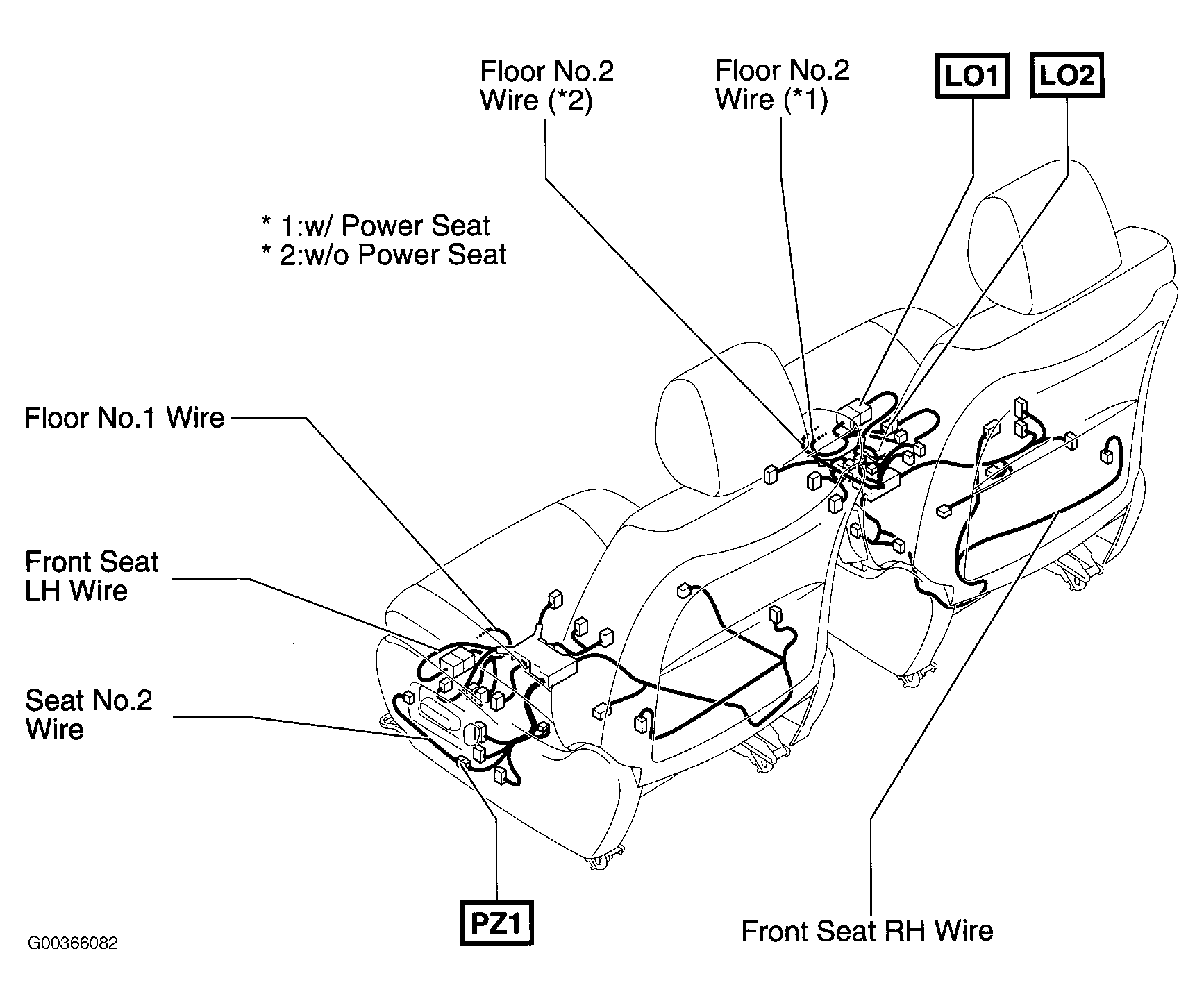

Fig 13: Front Seats

Fig 14: Engine Compartment

Fig 15: Dash & Center Console

Fig 16: Dash & Center Console

Fig 17: Dash & Center Console

Fig 18: Vehicle Overview

Fig 19: Front Seats
