Home >> Toyota >> 2007 >> Avalon XLS >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter >> Components

Starting System: Starter: Components

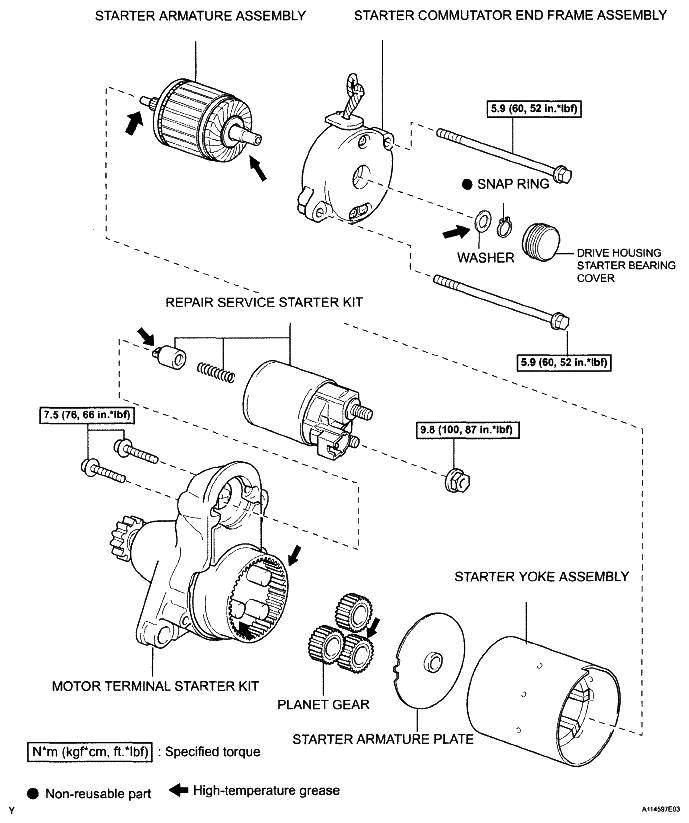

Fig 1: Starter Replacement Components With Torque Specifications
G05000384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
