Fuel Pressure Pulsation Damper: Components

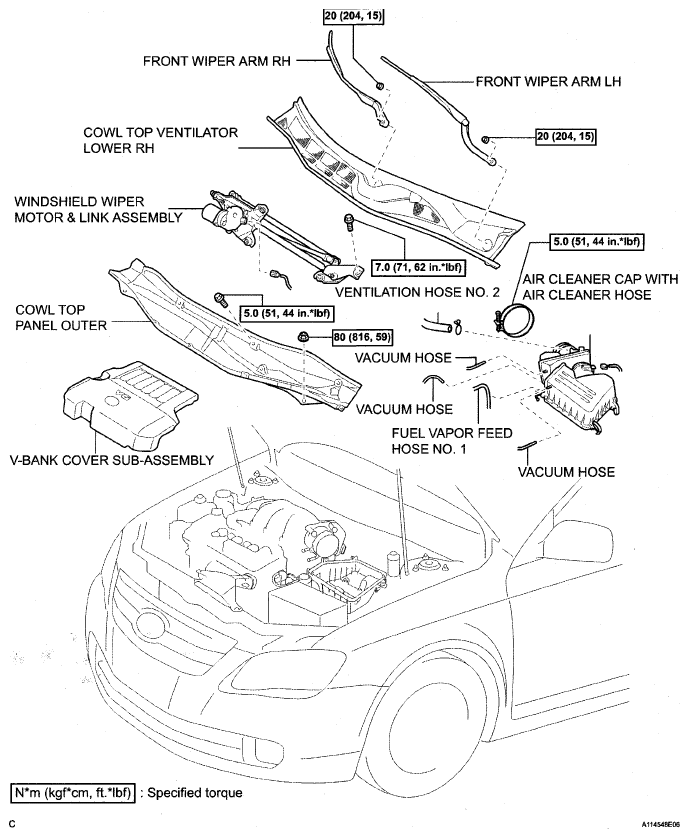

Fig 1: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (1 Of 2)
G04997047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

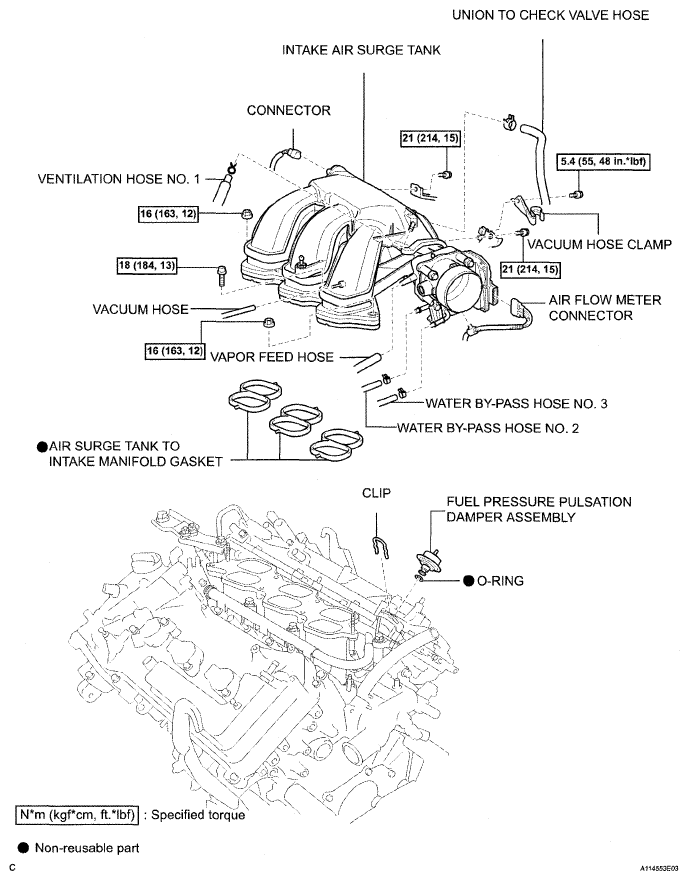

Fig 2: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (2 Of 2)
G04997048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
