Rear Stabilizer Bar: Components

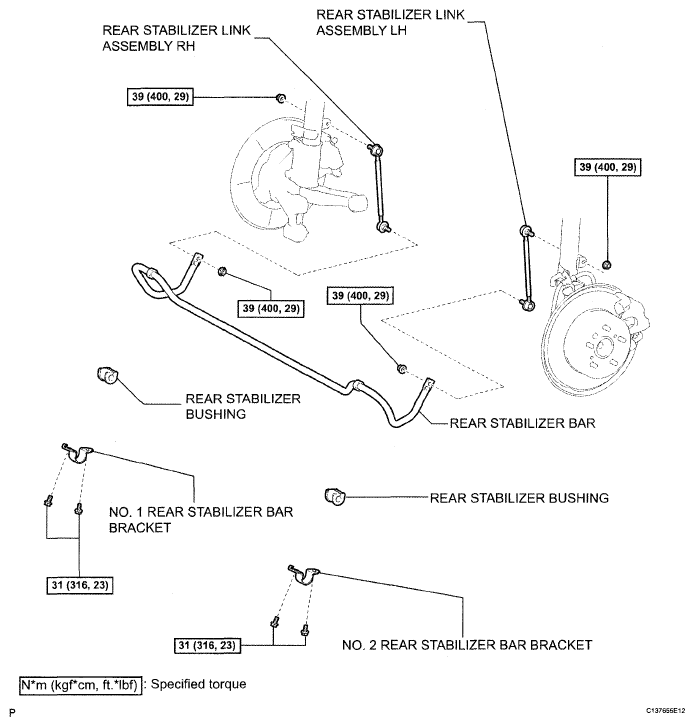

Fig 1: Identifying Rear Stabilizer Bar Component Replacement

G05001325

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
