Home >> Toyota >> 2007 >> Camry Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control System (Hybrid) >> Engine Coolant Temperature Sensor >> Components

Engine Coolant Temperature Sensor: Components

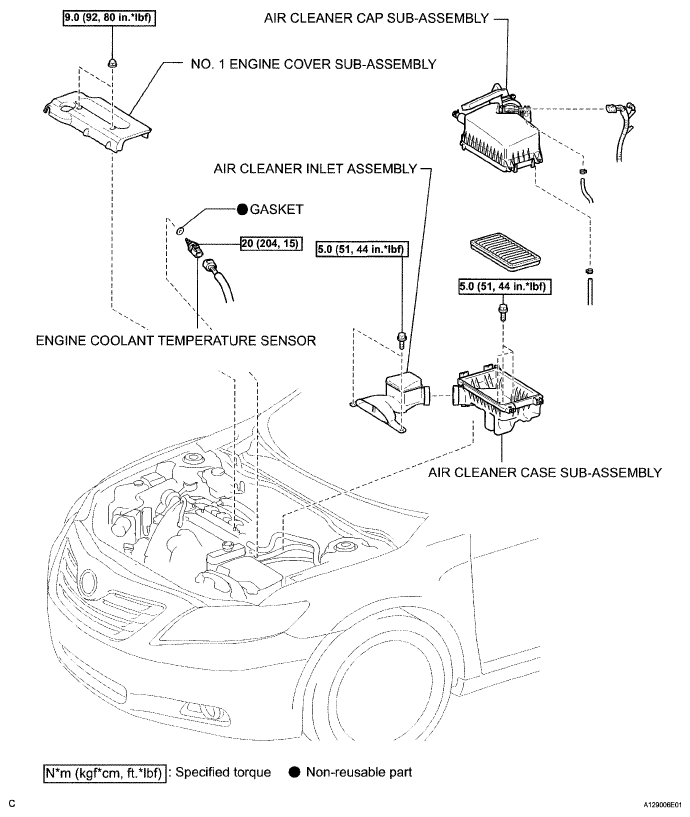

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications

G05008002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
