Knock Sensor: Installation
- INSTALL KNOCK SENSOR
- Install the 2 knock sensors with the 2 nuts, as shown in the illustration.
Torque: 20 N*m (199 kgf*cm, 14 ft.*lbf)
- Connect the 2 knock sensor connectors.
- Install the 2 knock sensors with the 2 nuts, as shown in the illustration.
- INSTALL WATER OUTLET
- Install 2 new gaskets to the 2 cylinder heads.
- Install the water outlet together with the water bypass hose No. 1 and unlock the hose clamp.
- Tighten the 2 bolts, 2 nuts and 2 washers.
Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)
- Install the clamp.
- Connect the ECT sensor connector.
- Connect the radiator hose inlet.
- INSTALL INTAKE MANIFOLD

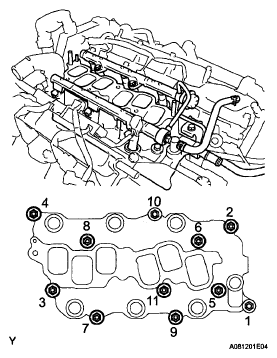

- Tighten the intake manifolds's 9 bolts and 2 nuts uniformly in the numerical order shown in the illustration.
Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)
NOTE: Fully tightening one of these bolts or nuts without partially tightening the other bolts or nuts in the group may damage the intake manifold, bolts and nuts. - Retighten the water outlet mounting bolts and nuts.
Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)
- Install the ground cable with the nut.
Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)
- Connect the heater inlet water hose.
- Connect the fuel pipe No. 1.
- Push the quick connector into the pipe until a "click" sound is heard.NOTE:
- Check if there is any damage or contamination on the connected part.
- After connecting, confirm that the connector and pipe are securely connected by trying to pull them apart.
- Install the fuel pipe clamp.
- Push the quick connector into the pipe until a "click" sound is heard.
- Tighten the intake manifolds's 9 bolts and 2 nuts uniformly in the numerical order shown in the illustration.
- INSTALL INTAKE AIR SURGE TANK
- INSTALL EMISSION CONTROL VALVE SET
- INSTALL AIR CLEANER CAP SUB-ASSEMBLY
- CHECK CONNECTION OF VACUUM HOSE
- ADD ENGINE COOLANT
- CHECK FOR ENGINE COOLANT LEAKS (See COOLANT )
- CHECK FOR FUEL LEAKS (See REMOVAL )
- INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
