Home >> Toyota >> 2007 >> Camry Solara SLE, 2D Convertible >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (3MZ-FE) >> Throttle Body >> Components

Throttle Body: Components

Fig 1: Throttle Body Replacement Components With Torque Specifications (1 Of 2)
G05128718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

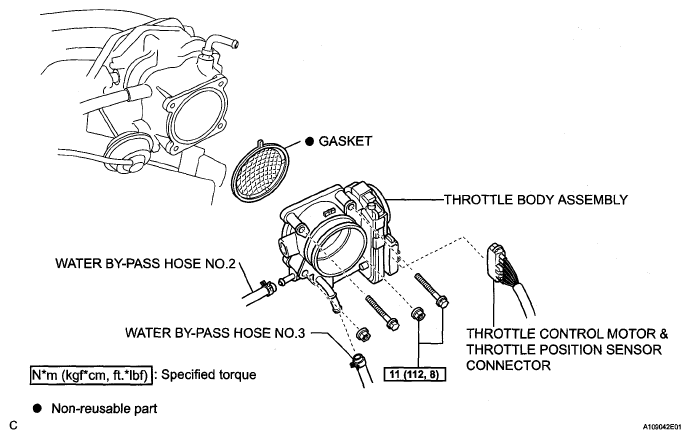

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)
G05128719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
