Home >> Toyota >> 2007 >> Corolla LE, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Power Window Control System >> Windshield Glass >> Components

Windshield Glass: Components

Fig 1: Identifying Windshield Glass Components (1 Of 2)
G05196251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

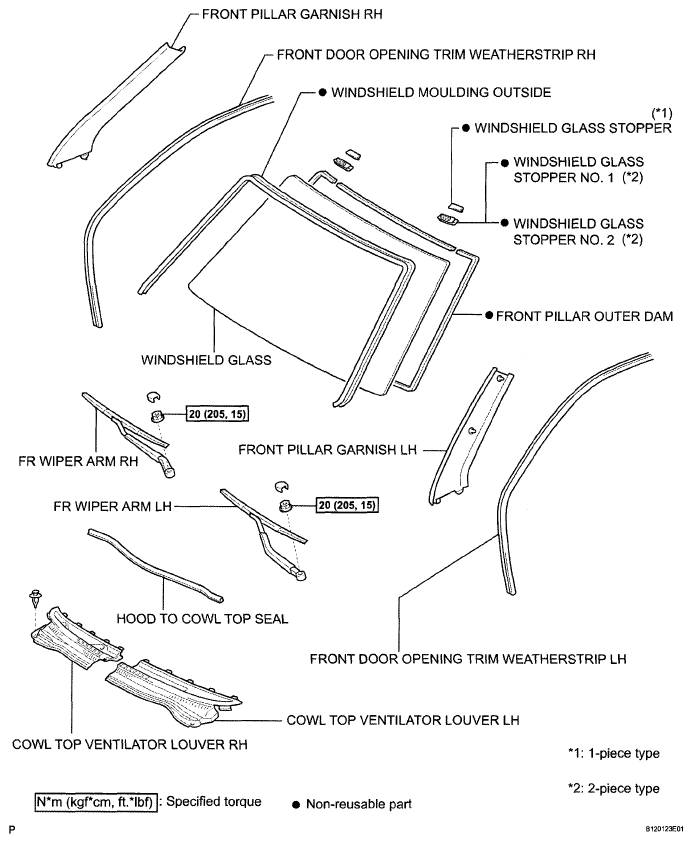

Fig 2: Windshield Glass Replacement Components With Torque Specifications (2 Of 2)
G05196252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
