Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

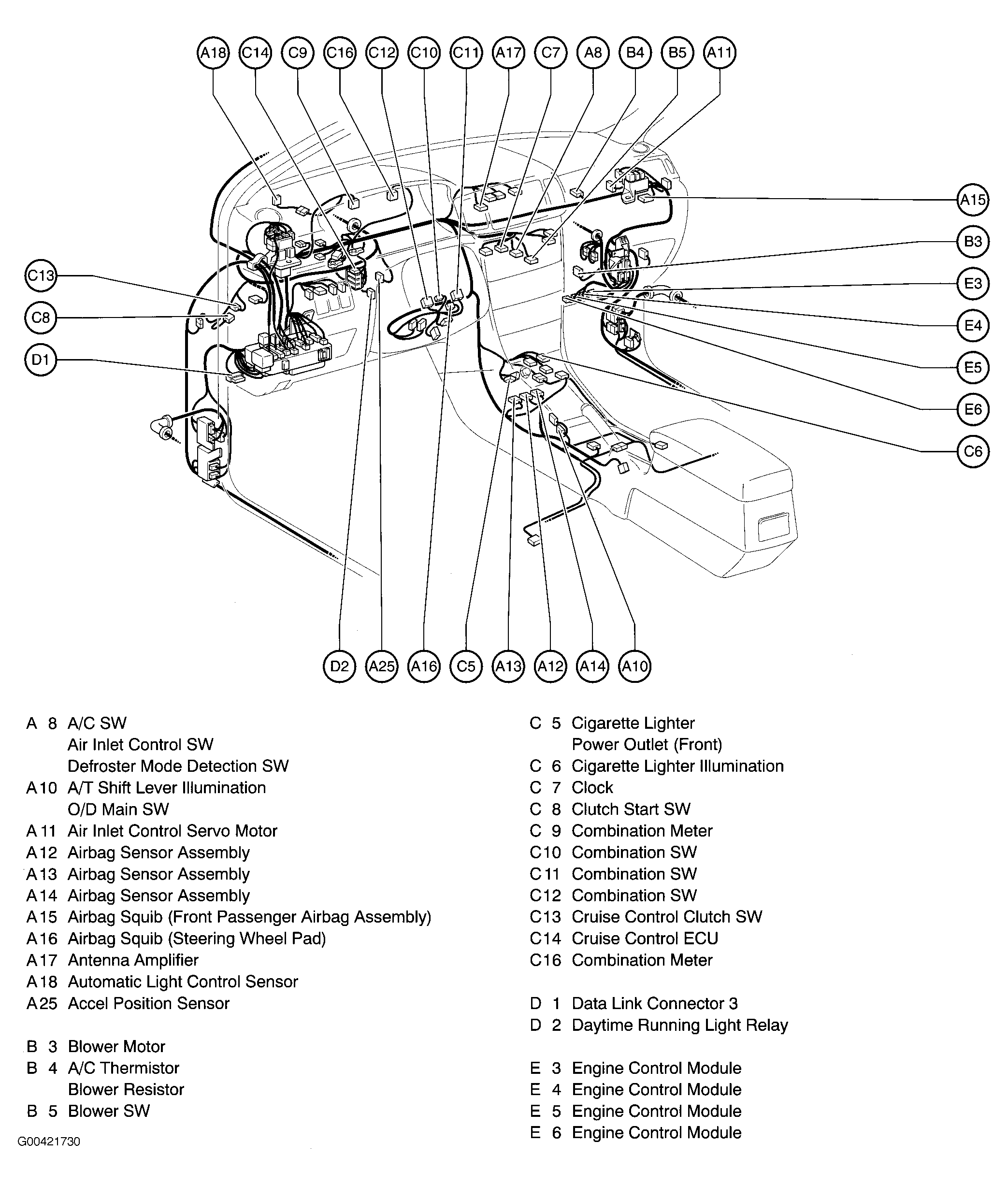

Fig 1: Dash & Center Console

G00421730

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash & Center Console

G00440235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

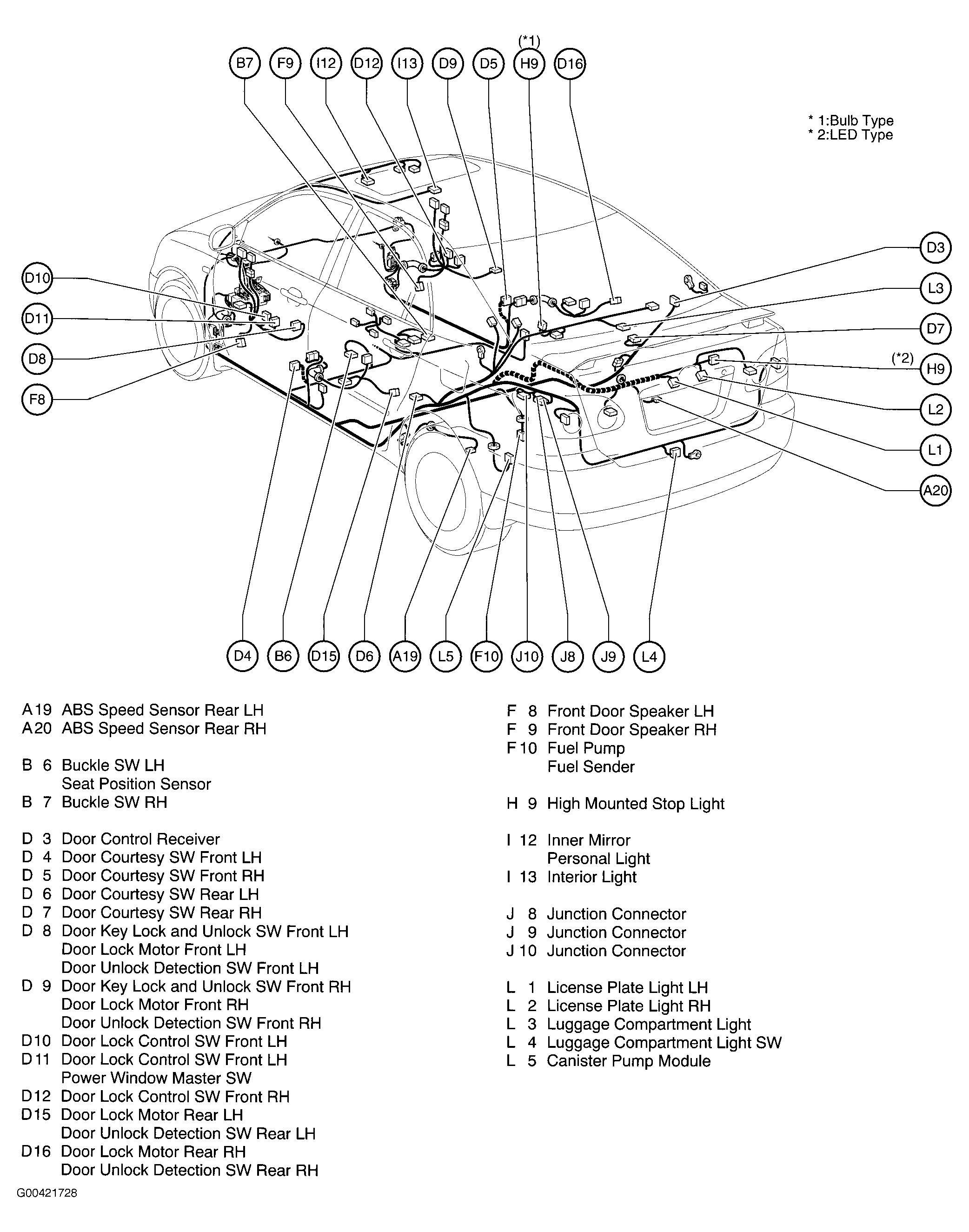

Fig 3: Vehicle Overview (W/O Side Airbag And/Or Stereo Amplifier)

G00421728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

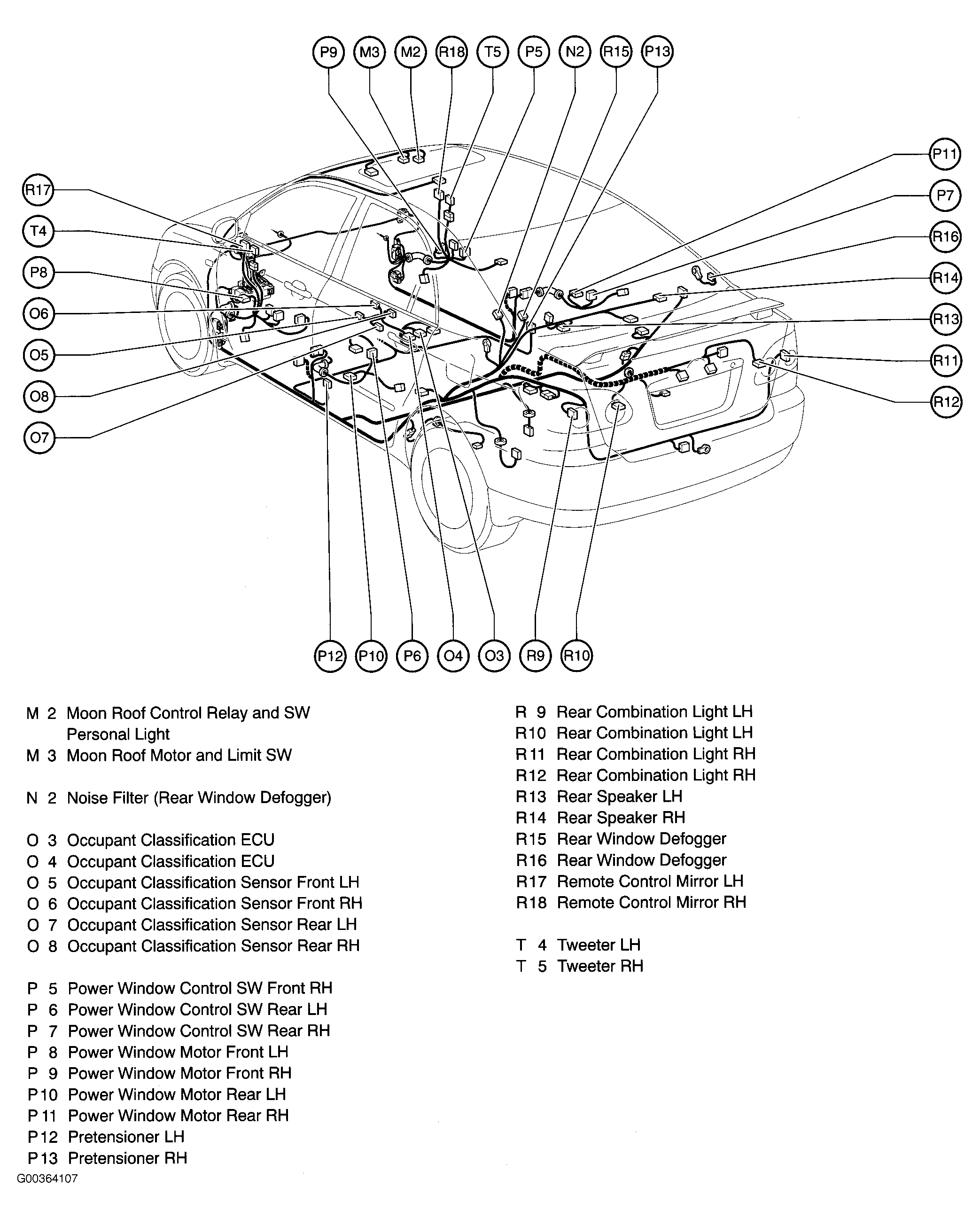

Fig 4: Vehicle Overview (W/O Side Airbag And/Or Stereo Amplifier)

G00364107

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

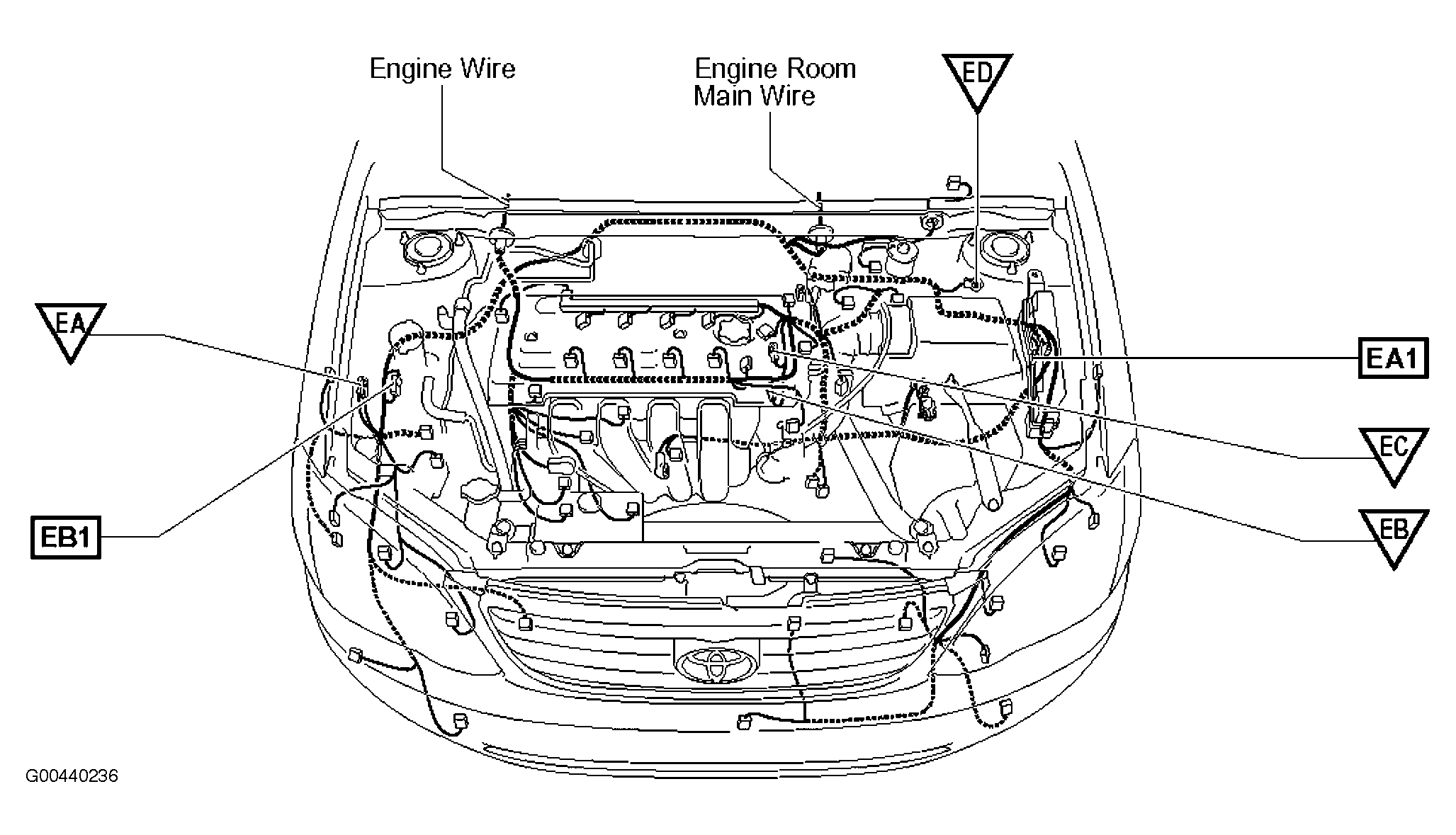

Fig 5: Engine Compartment

G00440236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

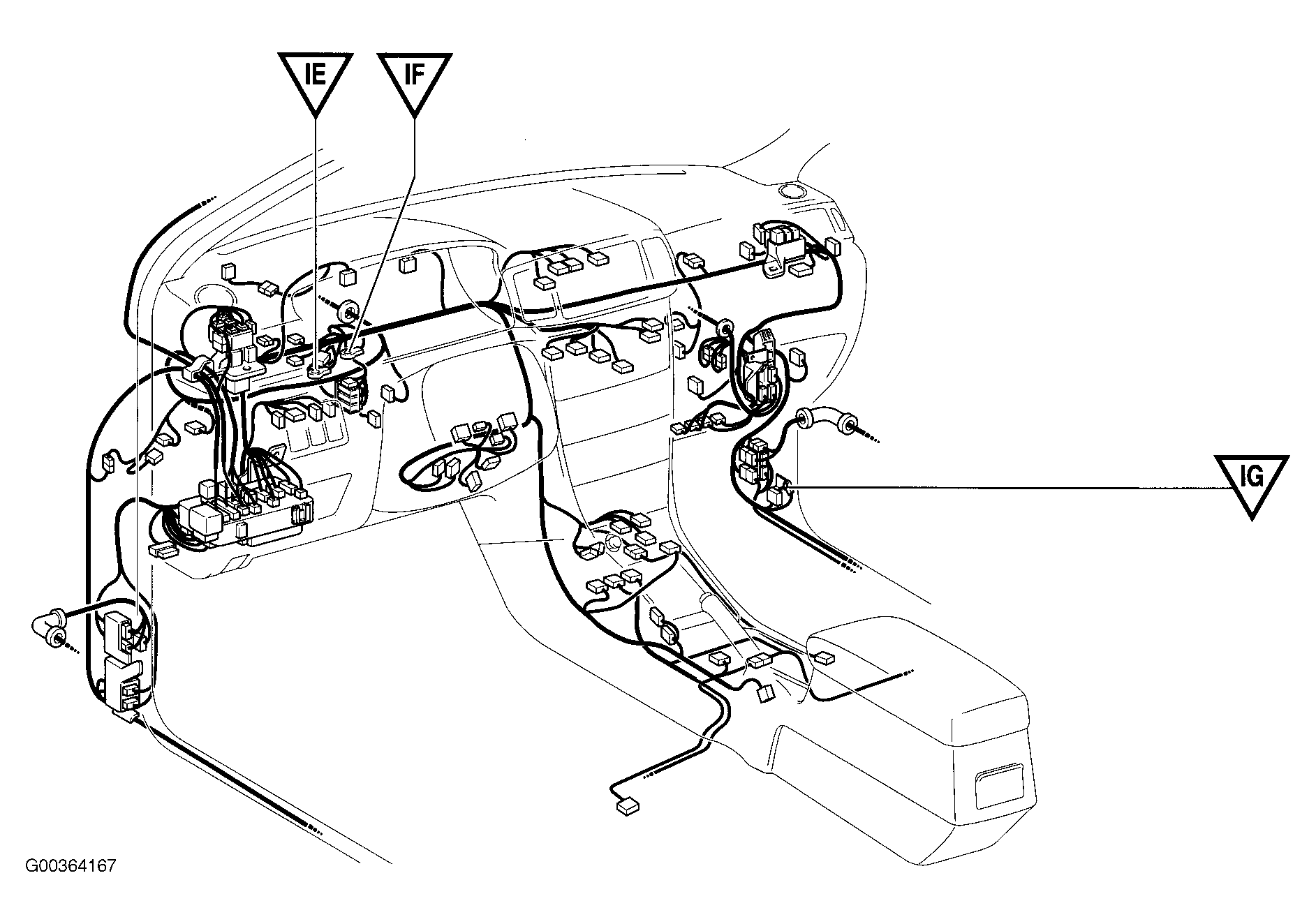

Fig 6: Dash & Center Console

G00364167

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

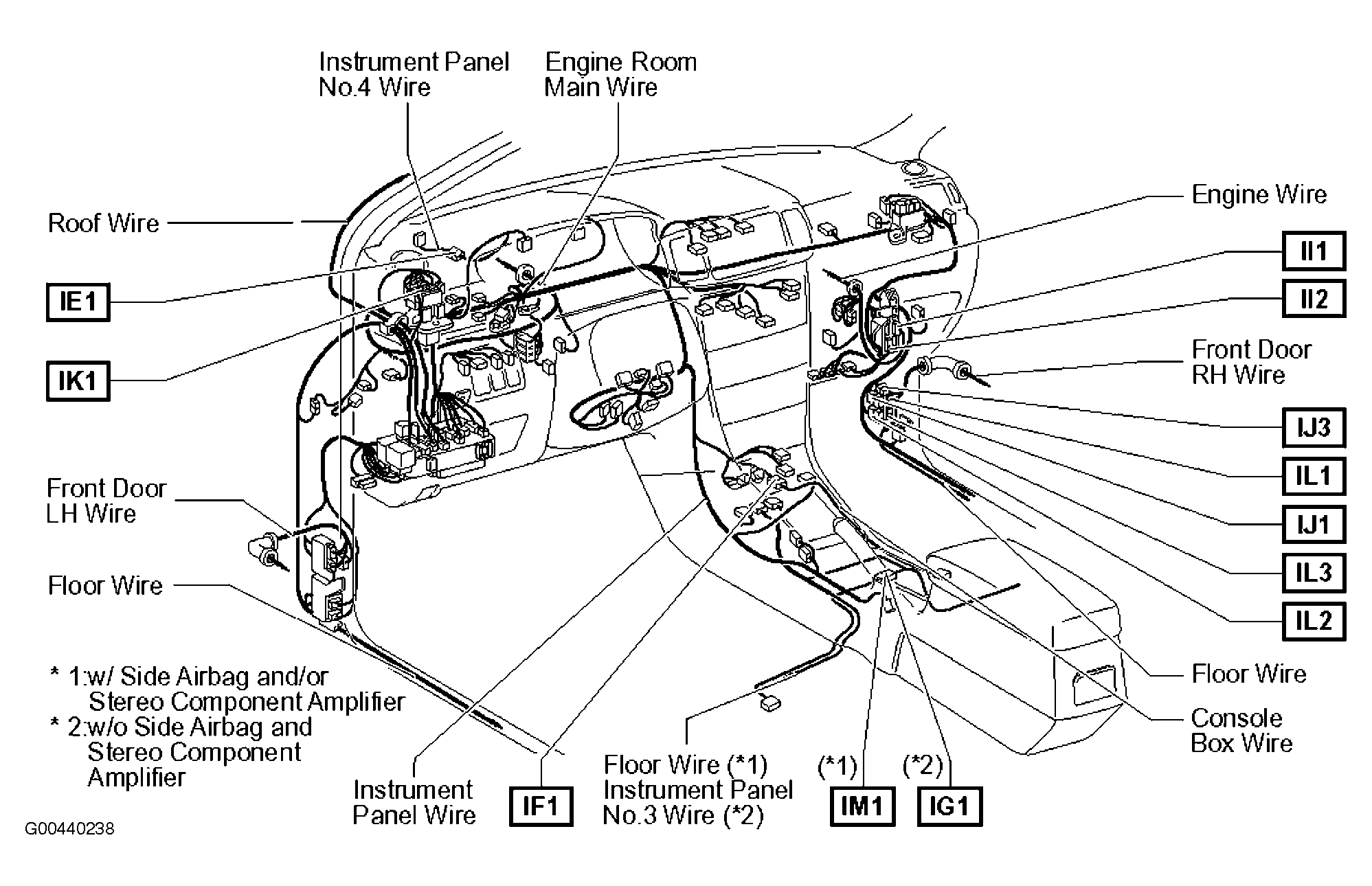

Fig 7: Dash & Center Console

G00440238

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

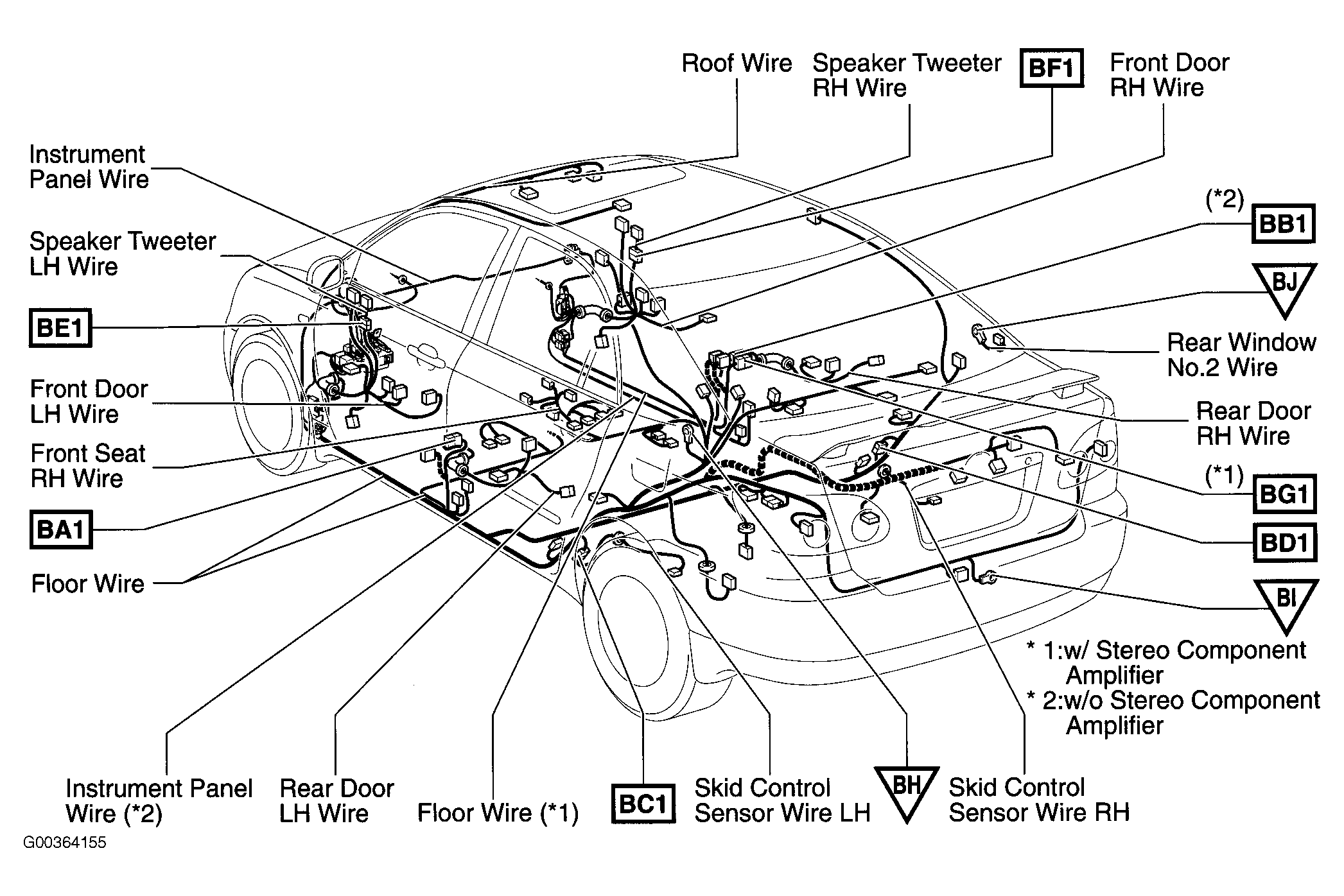

Fig 8: Vehicle Overview (W/Side Airbag And/Or Stereo Component Amplifier)

G00364155

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

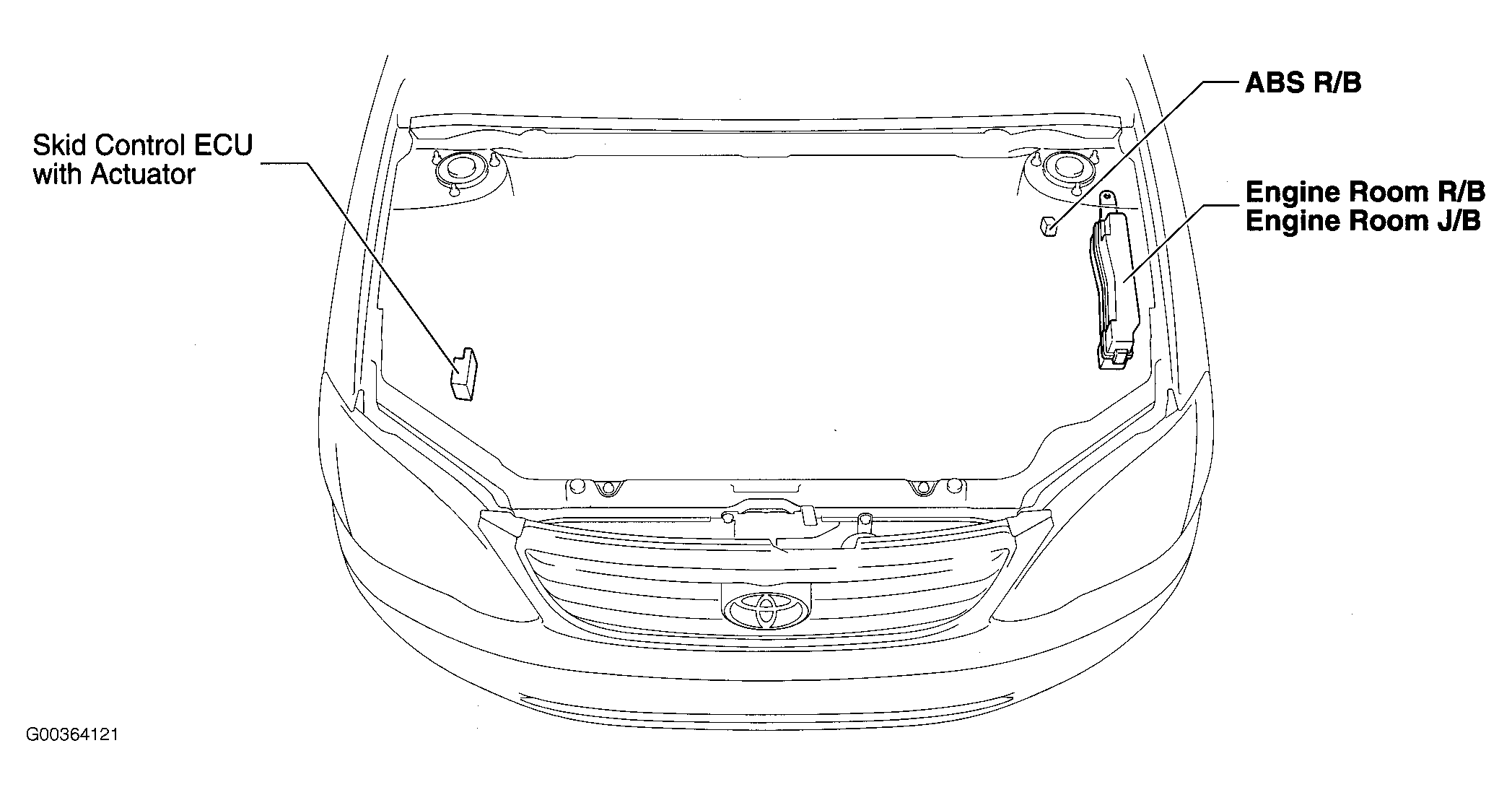

Fig 9: Engine Compartment

G00364121

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

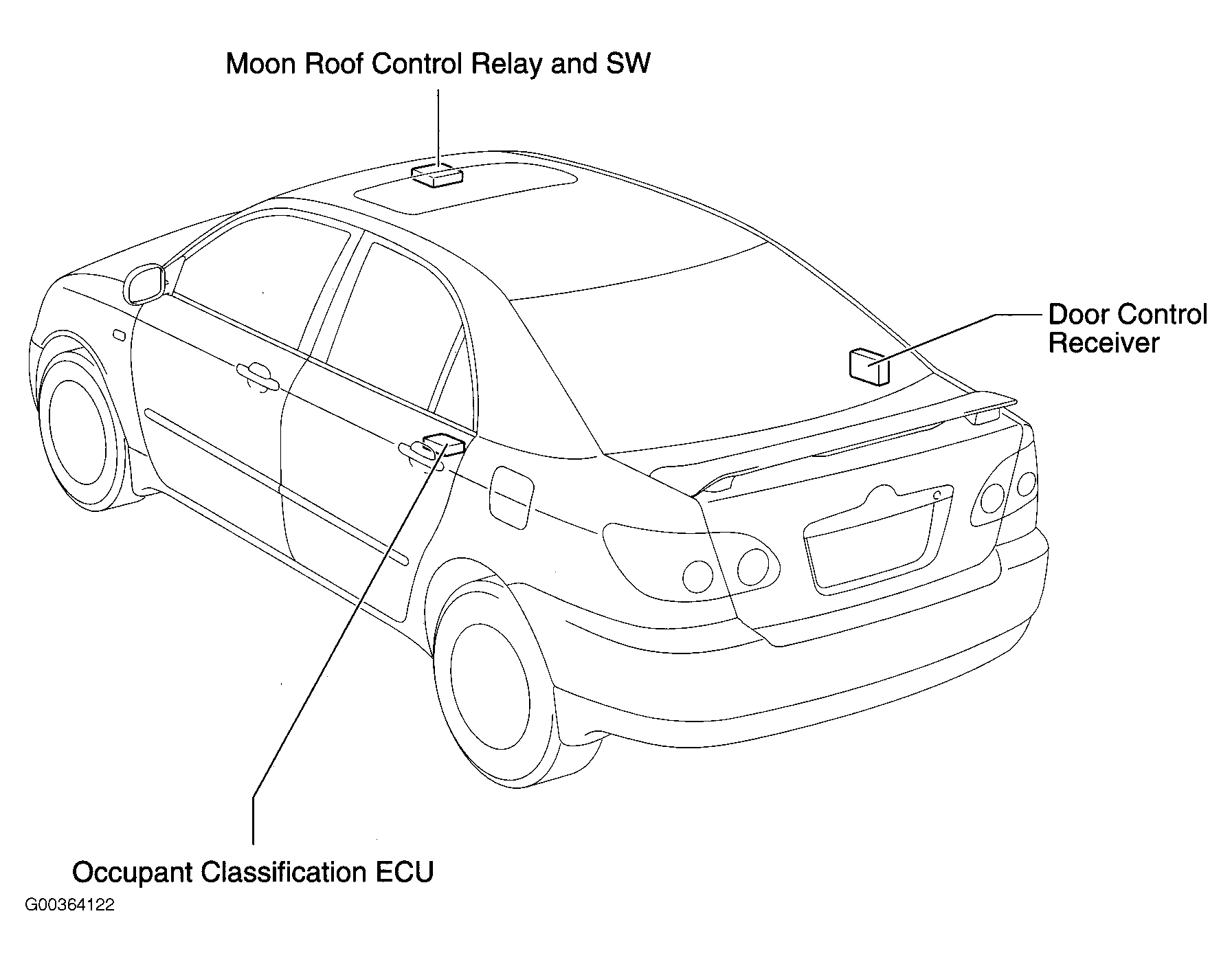

Fig 10: Vehicle Overview

G00364122

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

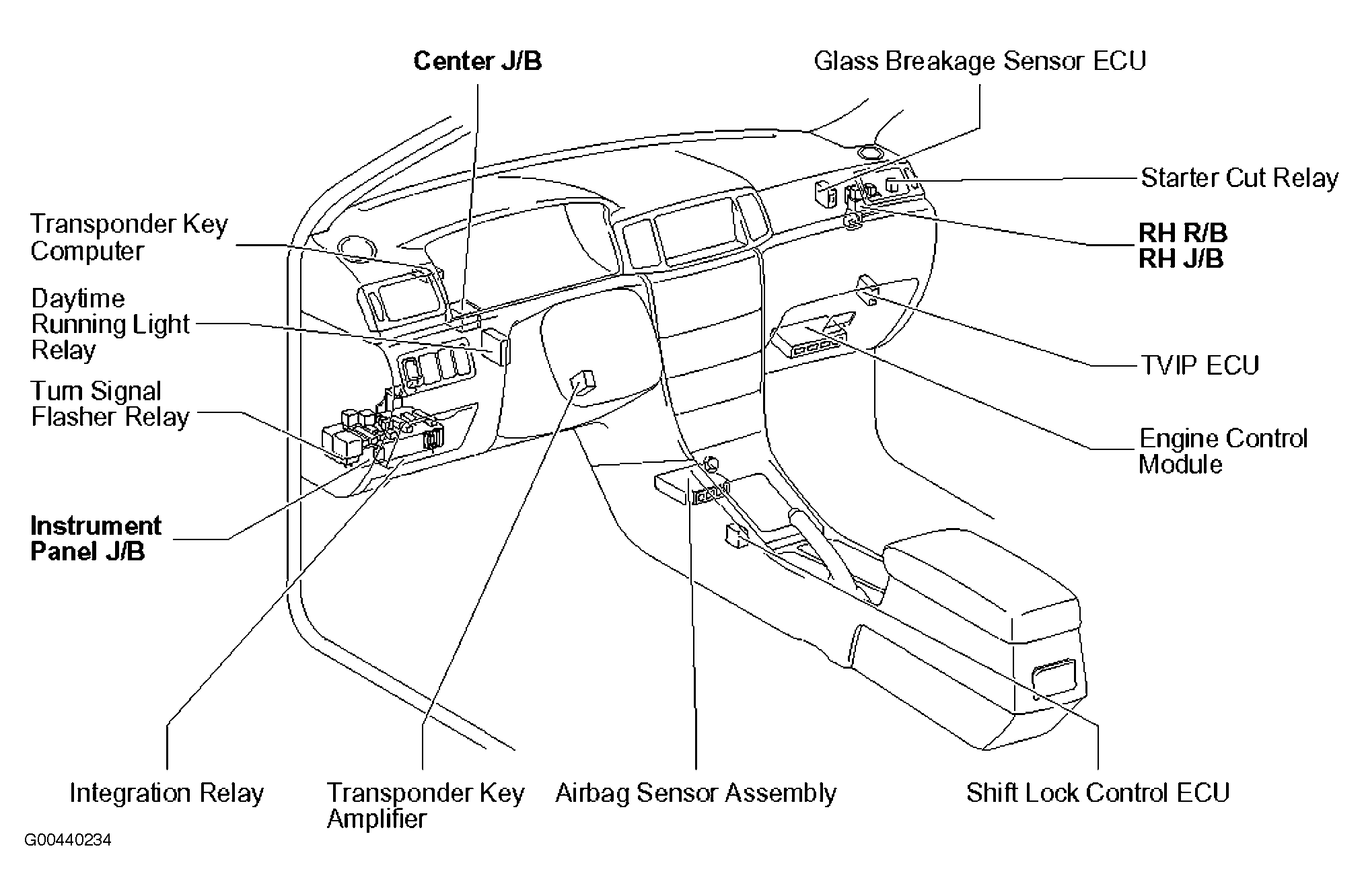

Fig 11: Dash & Center Console

G00440234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Room R/B

G00262719

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Instrument Panel J/B

G00262720

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Instrument Panel J/B

G00262721

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Right Hand R/B

G00262722

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

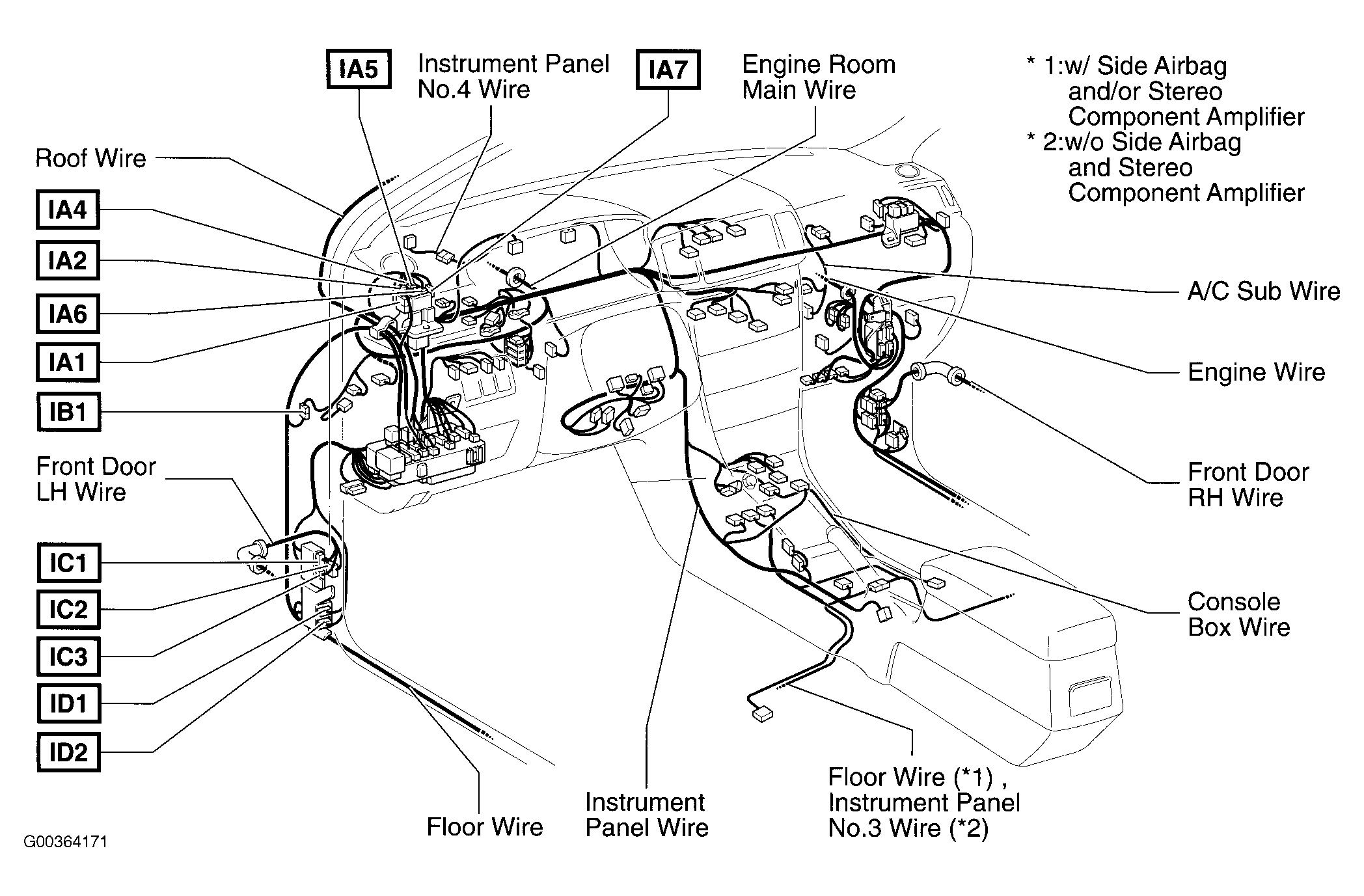

Fig 16: Dash & Center Console

G00364171

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

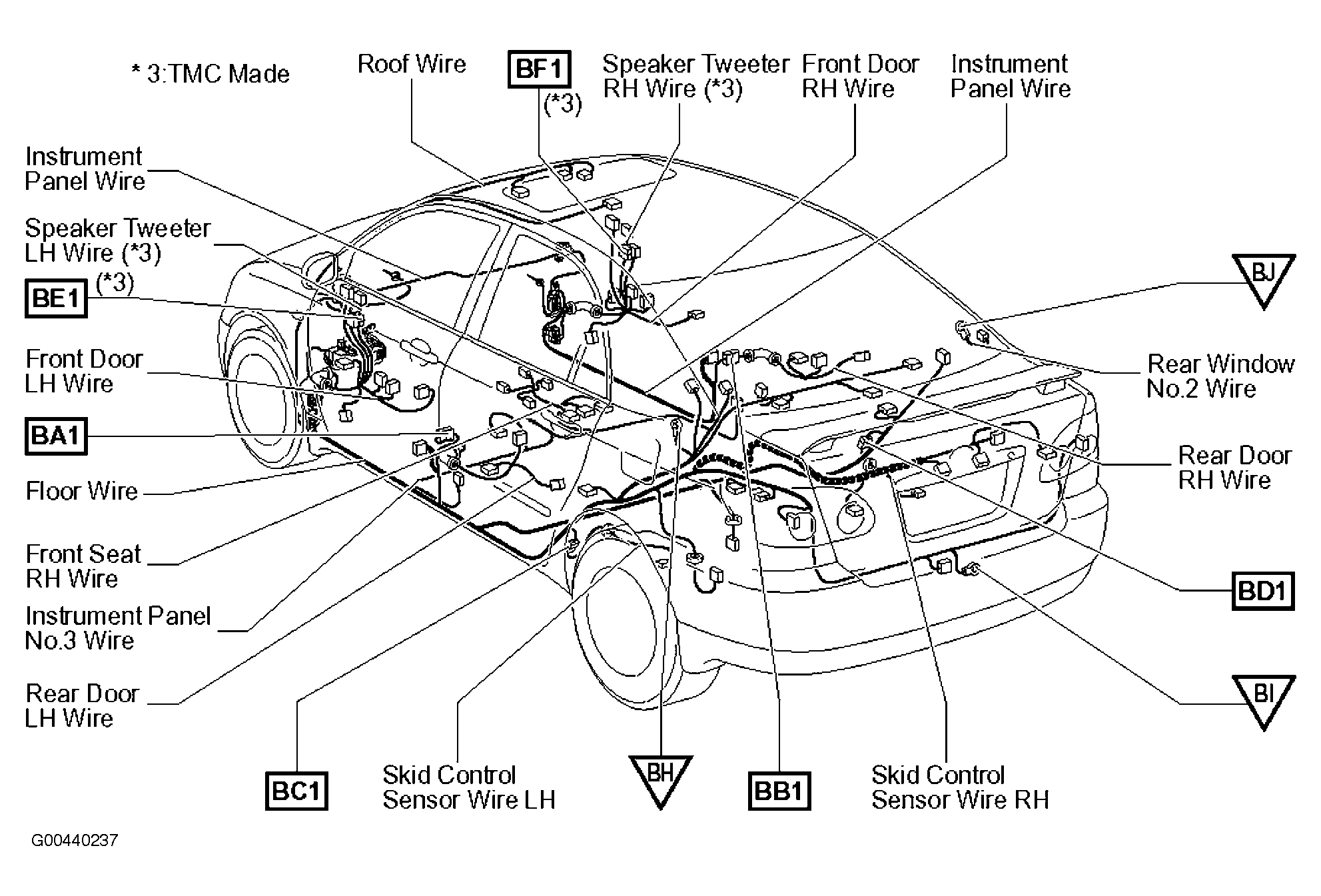

Fig 17: Vehicle Overview (W/O Side Airbag And/Or Stereo Amplifier)

G00440237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

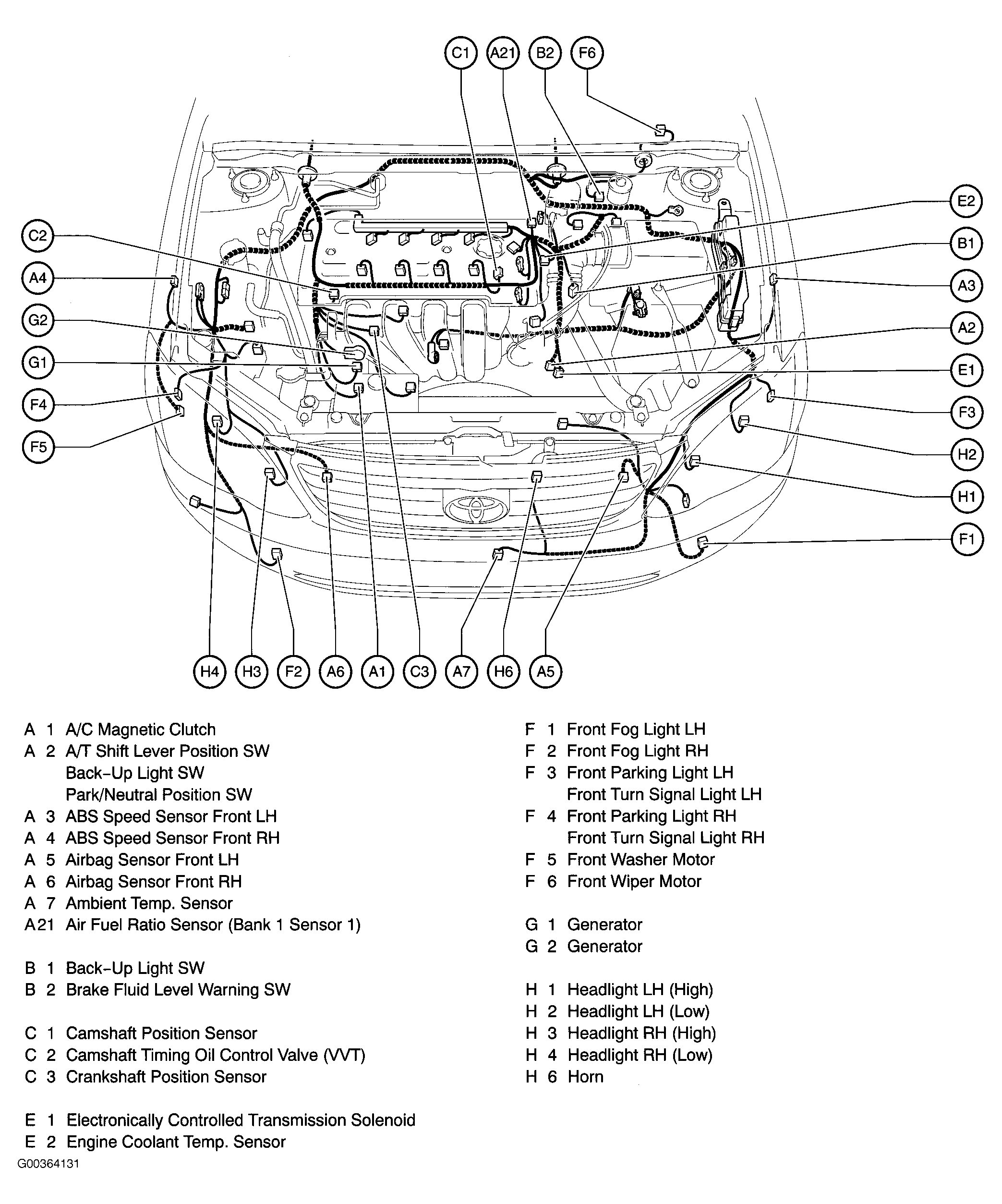

Fig 18: Engine Compartment

G00364131

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

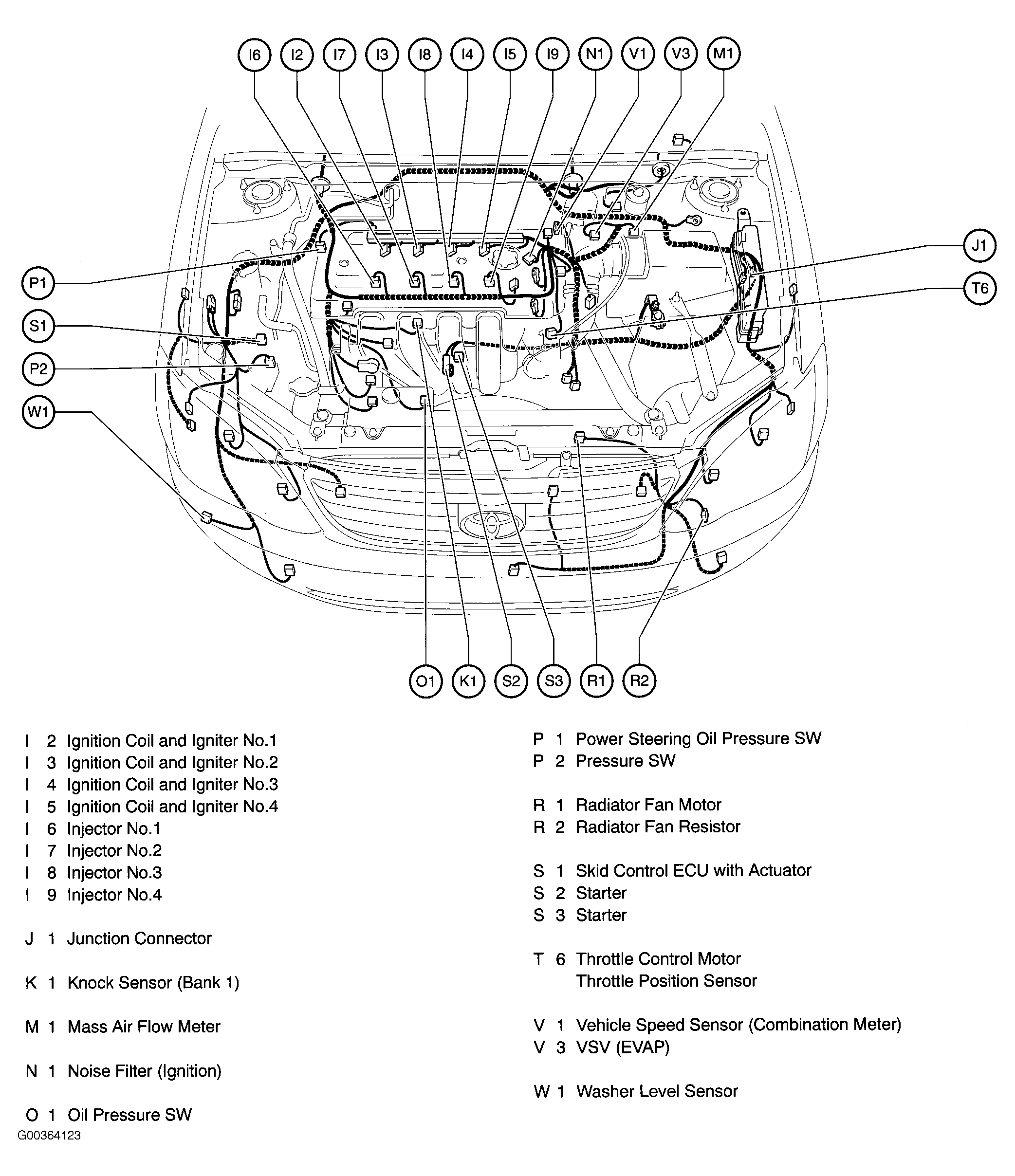

Fig 19: Engine Compartment

G00364123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

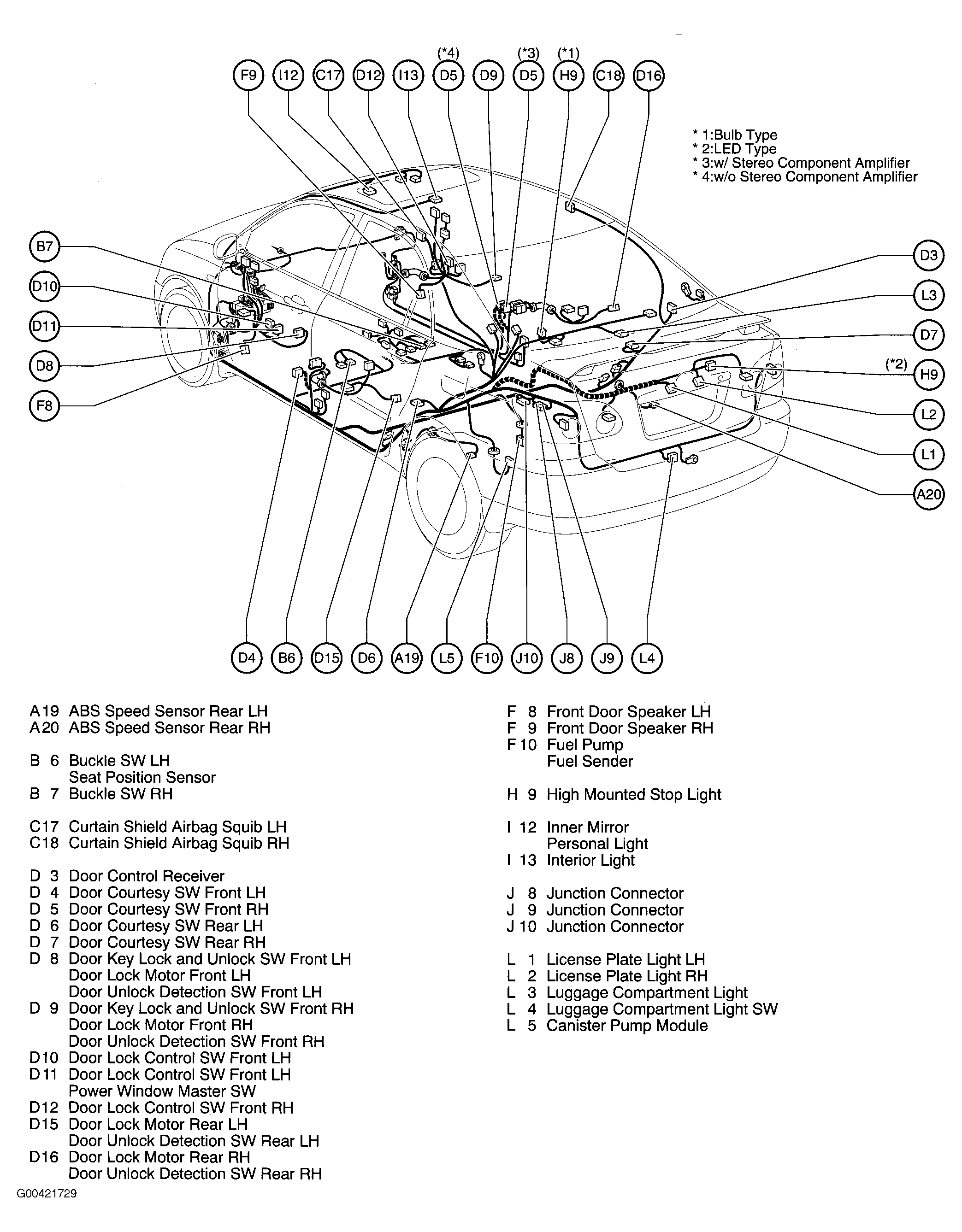

Fig 20: Vehicle Overview (W/Side Airbag And/Or Stereo Amplifier)

G00421729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

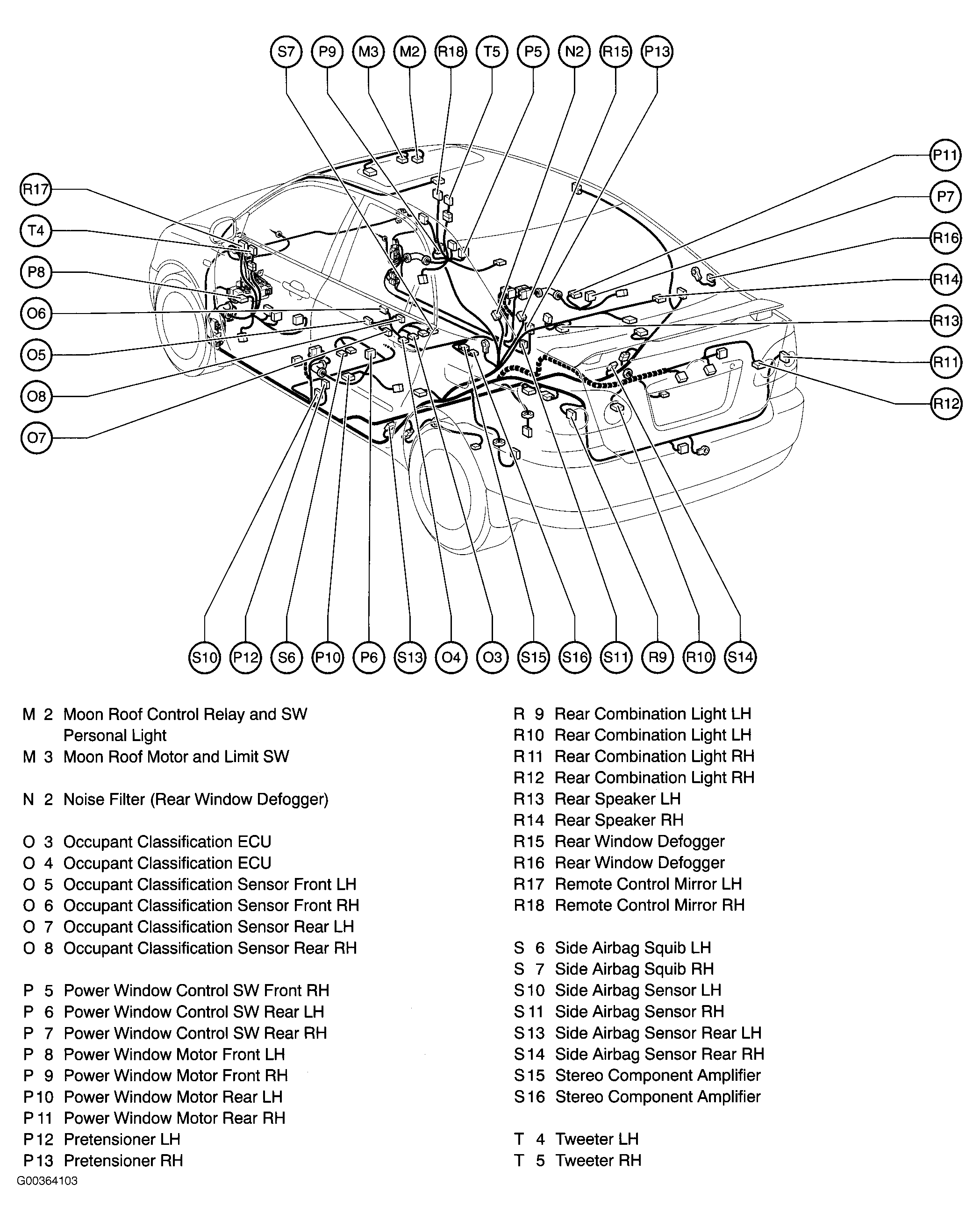

Fig 21: Vehicle Overview (W/Side Airbag And/Or Stereo Amplifier)

G00364103

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

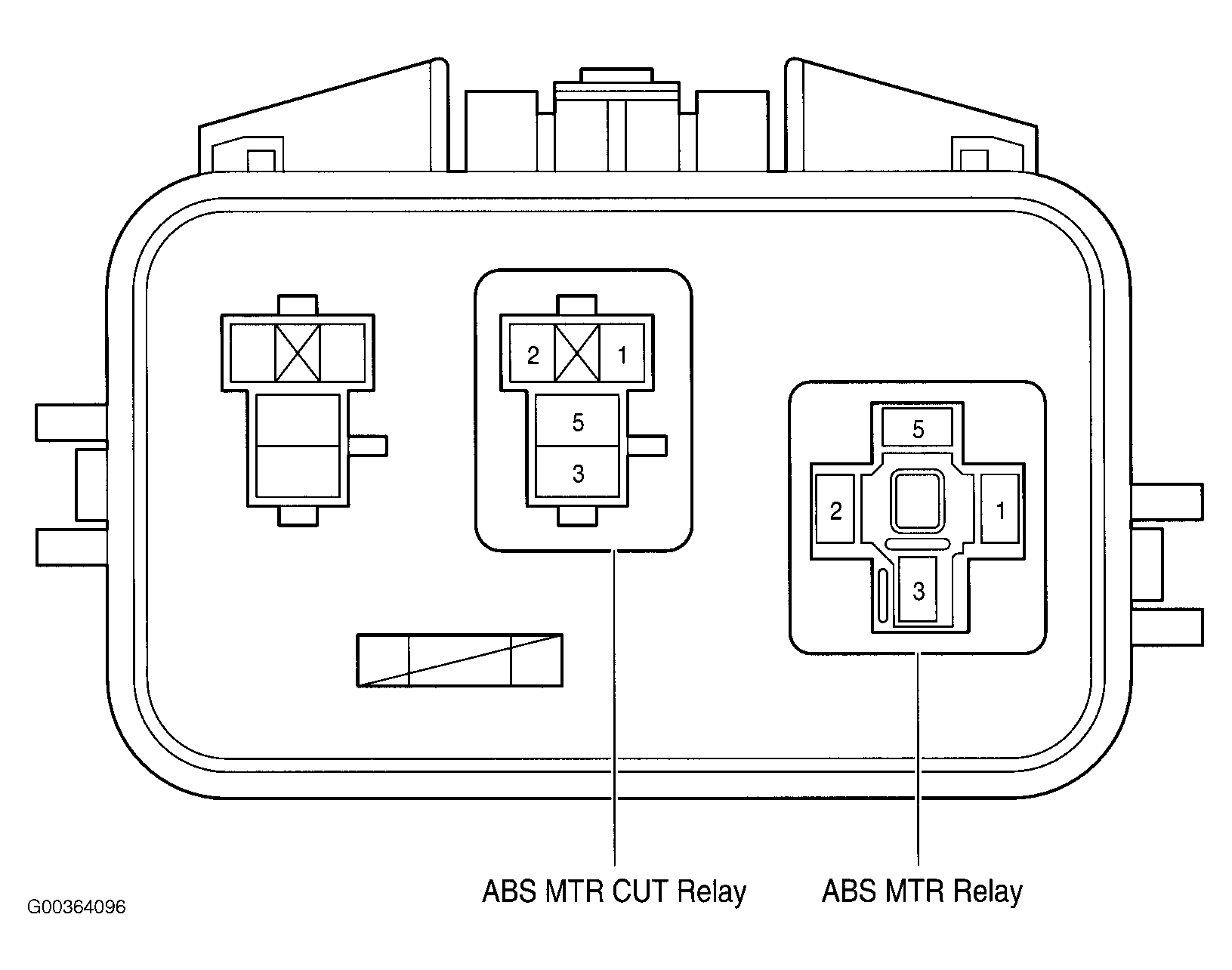

Fig 22: ABS R/B

G00364096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
