System Diagram

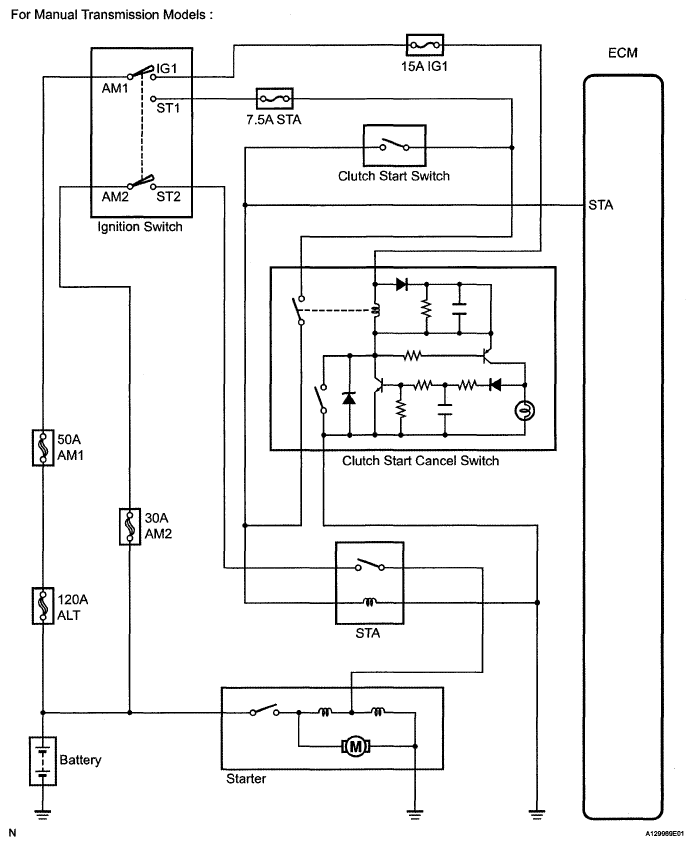

Fig 1: Identifying Starting System Diagram (For Manual Transmission Models)
G05109926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

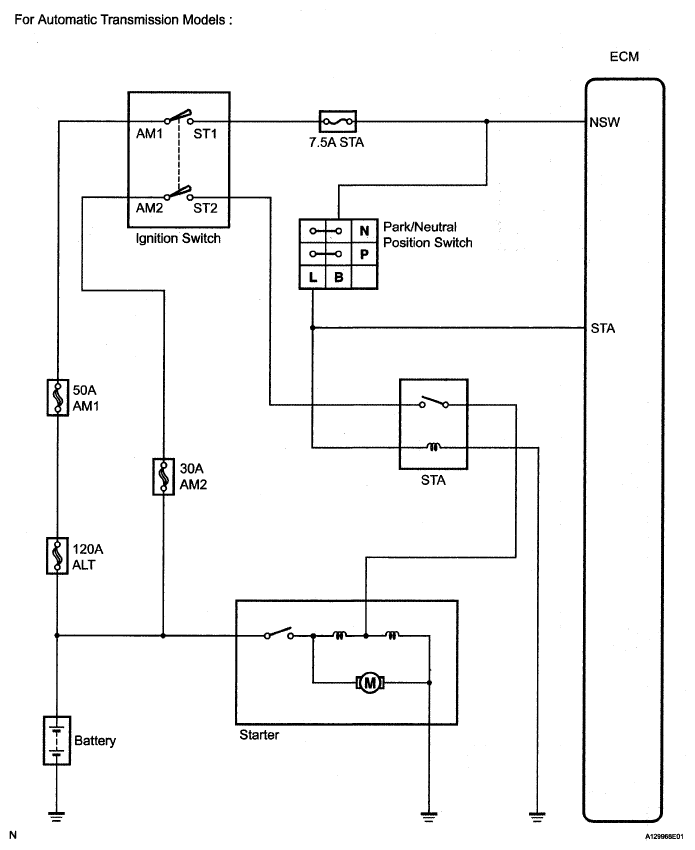

Fig 2: Identifying Starting System Diagram (For Automatic Transmission Models)
G05109927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
