Back Window Lock: Inspection

  1. INSPECT BACK WINDOW LOCK
    1. Check the operation of the back window lock actuator.
      1. Connect the cable from the positive (+) battery lead to terminal 4 and the negative (-) battery lead to terminal 3, then check the operation of the actuator.

        Standard: Actuator operates to unlock back window.

        If the result is not as specified, replace the back window lock.

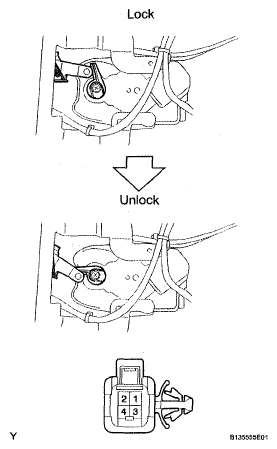

        Fig 1: Identifying Back Window Lock
        G05114392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the resistance of the back door window courtesy switch.
      1. Using an ohmmeter, measure the resistance between the terminals when the latch is operated with a screwdriver.

        Standard Resistance

        STANDARD RESISTANCE SPECIFICATIONS

        Tester Connection Condition Specified Condition
        1-2 Unlocked Below 1 Ω
        1-2 Locked 10 kΩ or higher

        If the result is not as specified, replace the back window lock.

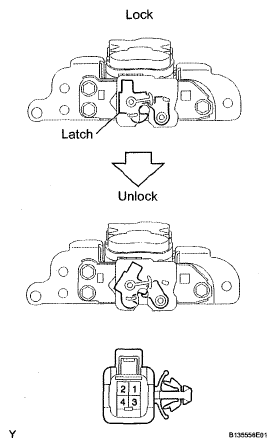

        Fig 2: Identifying Back Door Window Courtesy Switch
        G05114393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
