Windshield Glass: Installation
- CLEAN WINDSHIELD GLASS
- Using a scraper, remove the damaged stoppers, dam and adhesive from the windshield glass.
- Clean the outer circumference of the windshield glass with a non-residue solvent.NOTE:
- Do not touch the windshield glass surface after cleaning it.
- Even if using a new windshield glass, clean the windshield glass with a non-residue solvent.
- CLEAN VEHICLE BODY
- Clean and shape the contact surface of the vehicle body.
- Using a knife, cut away any rough adhesive on the contact surface of the vehicle body to ensure the appropriate surface shape.NOTE: Do not damage the vehicle body.
HINT:
Leave as much adhesive on the vehicle body as possible.
- Clean the contact surface of the vehicle body with a shop rag or piece of cloth saturated with cleaner.
HINT:
Clean the vehicle body even if all the adhesive has been removed.
- Using a knife, cut away any rough adhesive on the contact surface of the vehicle body to ensure the appropriate surface shape.
- Clean and shape the contact surface of the vehicle body.
- INSTALL WINDSHIELD GLASS STOPPER NO. 1
- Install 2 new stoppers onto the vehicle body.
- INSTALL WINDSHIELD GLASS STOPPER NO. 2
- Apply Primer G to the installation parts of the stoppers.NOTE:
- Allow the primer to dry for 3 minutes or more.
- Throw away any leftover Primer G.
- Do not apply too much Primer G.
- Install 2 new stoppers onto the windshield glass, as shown in Fig 4.
Specification
AREA MEASUREMENTArea Measurement A 40 mm (1.57 In.) B 7.8 mm (0.307 in.) C 12.5 mm (0.482 in.)
- Apply Primer G to the installation parts of the stoppers.

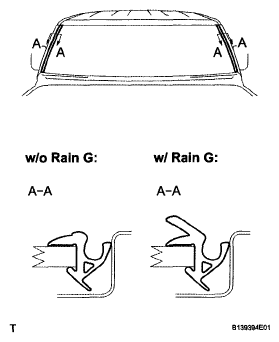

- INSTALL WINDSHIELD OUTSIDE MOLDING
- Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Do not coat the adhesive with Primer G.
- Throw away any leftover Primer G.
- Install the molding onto the windshield glass.
- Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.

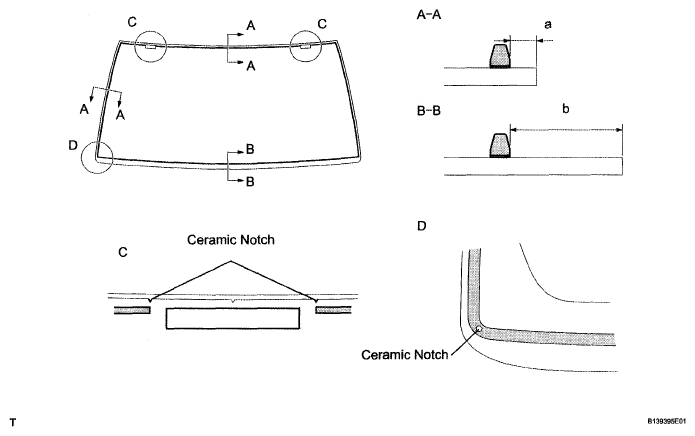

- INSTALL WINDOW GLASS ADHESIVE DAM
- Apply Primer G to the installation parts of new dams.NOTE:
- Allow the primer to dry for 3 minutes or more.
- Throw away any leftover Primer G.
- Do not apply too much Primer G.
- Install 3 new dams by applying double-sided tape all the way around the windshield glass except where the stoppers are installed.
Specification
AREA MEASUREMENTArea Measurement a 7.0 mm (0.276 In.) b 15.8 mm (0.622 In.)
- Apply Primer G to the installation parts of new dams.
- INSTALL WINDSHIELD GLASS
- Position the windshield glass.
- Using suction cups place the windshield glass in the correct position.
- Check that the entire contact surface of the windshield glass rim is perfectly even.
- Place matchmarks on the windshield glass and vehicle body.NOTE: Check that the stoppers are correctly attached to the vehicle body.
HINT:
When reusing a windshield glass, check and correct the matchmark positions.
- Using suction cups, remove the windshield glass.

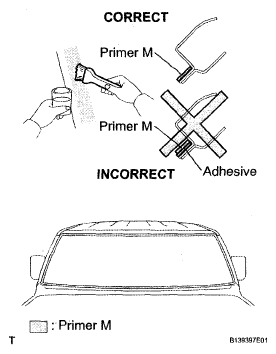

- Using a brush, apply Primer M to the exposed part of the vehicle body.NOTE:
- Allow the primer to dry for 3 minutes or more.
- Do not apply Primer M to the adhesive.
- Throw away any leftover Primer M.
- Do not apply too much Primer M.

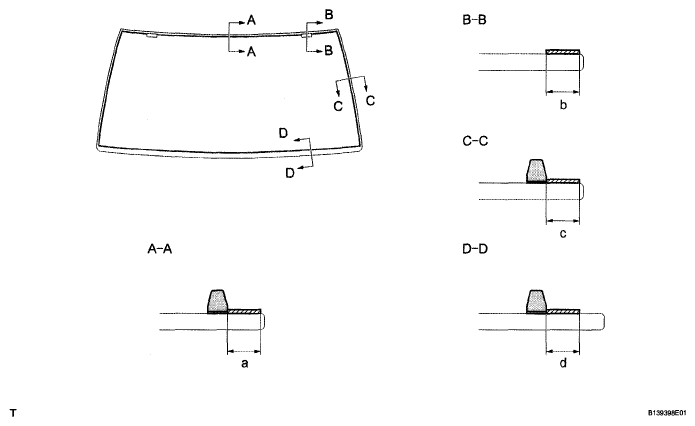

- Using a brush or sponge, apply Primer G to the edge of the windshield glass and the contact surface.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Specification
AREA MEASUREMENTArea Measurement a 7.8 mm (0.307 In.) b 7.8 mm (0.307 In.) c 7.0 mm (0.276 in.) d 8.0 mm (0.315 In.) NOTE:- Allow the primer to dry for 3 minutes or more.
- Throw away any leftover Primer G.
- Do not apply too much Primer G.
HINT:
If Primer G is applied to any areas other than those specified, wipe off the primer with a clean shop rag or piece of cloth before it dries.
- Apply adhesive.
Adhesive: Toyota Genuine Windshield Glass Adhesive or the equivalent
- Cut the tip off the cartridge nozzle.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
After cutting off the tip, use all adhesive within the times indicated in TEMPERATURE SPECIFICATIONS TABLE .
Usage time frame
TEMPERATURE SPECIFICATIONS TABLETemperature Usage Time Frame 35°C (95°F) 15 minutes 20°C (68°F) 1 hour 40 minutes 5°C (41°F) 8 hours - Load the sealer gun with the cartridge.

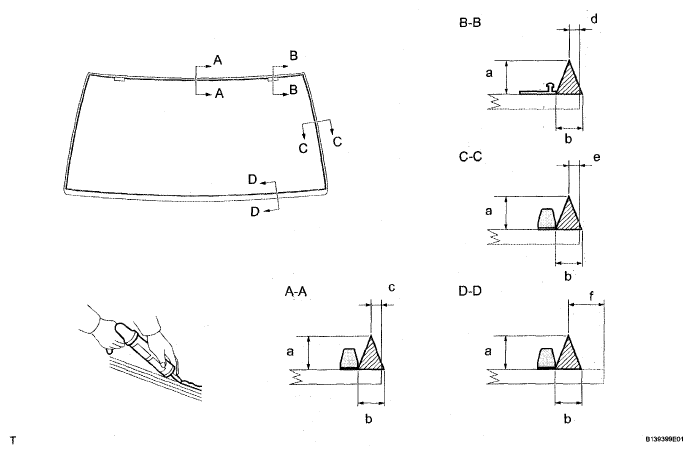

- Apply adhesive to the windshield glass.
Specification
AREA MEASUREMENTArea Measurement a 12 mm (0.472 In.) b 8 mm (0.315 in.) c 3 mm (0.118 in.) d 3 mm (0.118 in.) e 3 mm (0.118 in.) f 11.8 mm (0.465 in.)
- Cut the tip off the cartridge nozzle.
- Install the windshield glass onto the vehicle body.
- Using suction cups, position the windshield glass so that the matchmarks are aligned. Gently press it in along the rim.NOTE:
- Allow the primer to dry for 3 minutes or more.
- Check that the stoppers are attached to the vehicle body correctly.
- Check that there is a small gap between the vehicle body and the windshield glass.
- Gently press the front surface of the windshield glass to ensure that the windshield glass is securely fitted to the vehicle body.
- Using a scraper, remove any excessive or protruding adhesive.
HINT:
Apply adhesive to the windshield glass rim.
NOTE: Do not drive the vehicle within the time indicated in TEMPERATURE SPECIFICATIONS TABLE .Minimum time
TEMPERATURE SPECIFICATIONS TABLETemperature Minimum time prior to driving vehicle 35°C (95°F) 1 hour 30 minutes 20°C (68°F) 5 hours 5°C (41°F) 24 hours
- Using suction cups, position the windshield glass so that the matchmarks are aligned. Gently press it in along the rim.
- Position the windshield glass.
- INSTALL WINDSHIELD OUTSIDE LOWER MOLDING
- Engage the 6 claws and install the windshield outside lower molding.
- CHECK FOR LEAKAGE AND REPAIR
- Conduct a leak test by applying water to the adhesive portions after the adhesive has completely hardened.
- Seal any leakage with auto glass sealer.
- INSTALL ROOF SIDE GARNISH PROTECTOR (See INSTALLATION )
- INSTALL FRONT PILLAR OUTER GARNISH (See INSTALLATION )
- INSTALL ROOF DRIP SIDE FINISH MOLDING RETAINER (See INSTALLATION )
- INSTALL WINDSHIELD OUTSIDE UPPER MOLDING SUB-ASSEMBLY (See INSTALLATION )
- INSTALL ROOF HEADLINING
- INSTALL ROOM LIGHT ASSEMBLY (See INSTALLATION )
- INSTALL INNER REAR VIEW MIRROR ASSEMBLY (See INSTALLATION )
- INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER (See INSTALLATION )
- INSTALL VISOR HOLDER (See INSTALLATION )
- INSTALL VISOR ASSEMBLY RH (See INSTALLATION )
- INSTALL VISOR ASSEMBLY LH (See INSTALLATION )
- INSTALL FRONT PILLAR GARNISH RH (See INSTALLATION )
- INSTALL FRONT PILLAR GARNISH LH (See INSTALLATION )
- INSTALL ASSIST GRIP ASSEMBLY (See INSTALLATION )
- INSTALL ASSIST GRIP PLUG (See INSTALLATION )
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH (See INSTALLATION )
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH (See INSTALLATION )
- INSTALL ROOF SIDE RAIL GARNISH RH (See INSTALLATION )
- INSTALL ROOF SIDE RAIL GARNISH LH (See INSTALLATION )
- INSTALL ROOF SIDE INNER GARNISH COVER RH (See INSTALLATION )
- INSTALL ROOF SIDE INNER GARNISH COVER LH (See INSTALLATION )
- INSTALL COWL SIDE TRIM BOARD RH (See INSTALLATION )
- INSTALL COWL SIDE TRIM BOARD LH (See INSTALLATION )
- INSTALL FOOTREST CLIP (See INSTALLATION )
- INSTALL FRONT FLOOR FOOTREST (See INSTALLATION )
- INSTALL REAR DOOR SCUFF PLATE RH (See INSTALLATION )
- INSTALL REAR DOOR SCUFF PLATE LH (See INSTALLATION )
- INSTALL FRONT DOOR SCUFF PLATE RH (See INSTALLATION )
- INSTALL FRONT DOOR SCUFF PLATE LH (See INSTALLATION )
- INSTALL COWL TOP VENTILATOR LOUVER LH (See INSTALLATION )
- INSTALL COWL TOP VENTILATOR LOUVER RH (See INSTALLATION )
- INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (See INSTALLATION )
- INSTALL FRONT FENDER SIDE PANEL UPPER LH (See INSTALLATION )
- INSTALL FRONT FENDER SIDE PANEL UPPER RH (See INSTALLATION )
- INSTALL ANTENNA ORNAMENT (See INSTALLATION )
- INSTALL ROOF ANTENNA POLE SUB-ASSEMBLY (See INSTALLATION )
- INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (See INSTALLATION )
- INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (CENTER SIDE) (See INSTALLATION )
- INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (See INSTALLATION )
- INSTALL WINDSHIELD WIPER ARM COVER (See INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
