Multiplex Communication System - CAN: Notes

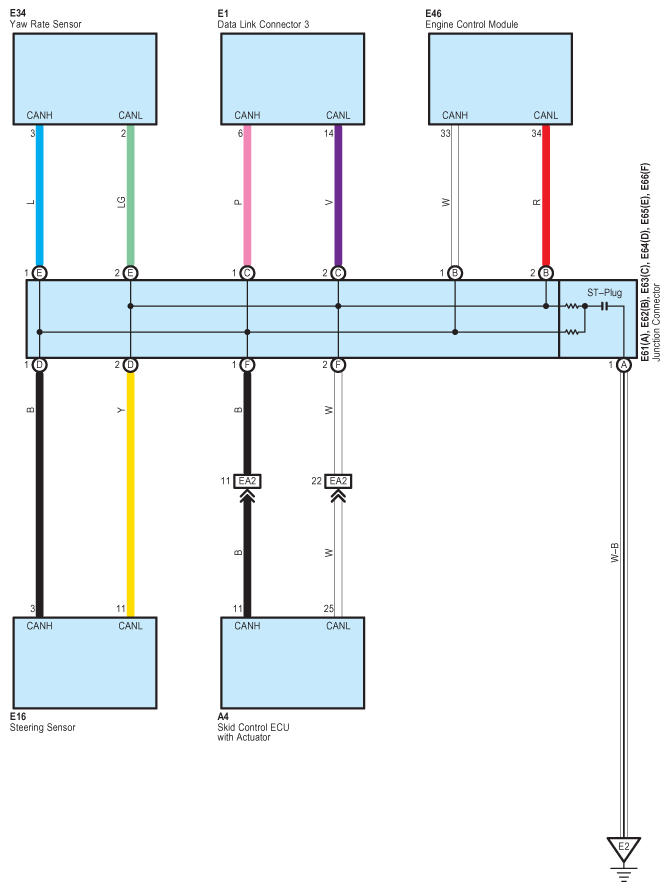

Fig 1: Multiplex Communication System Wiring Diagram (CAN)
G08781817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
