Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00440130

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash

G00440131

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Vehicle Overview

G00440132

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Seats

G00440133

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

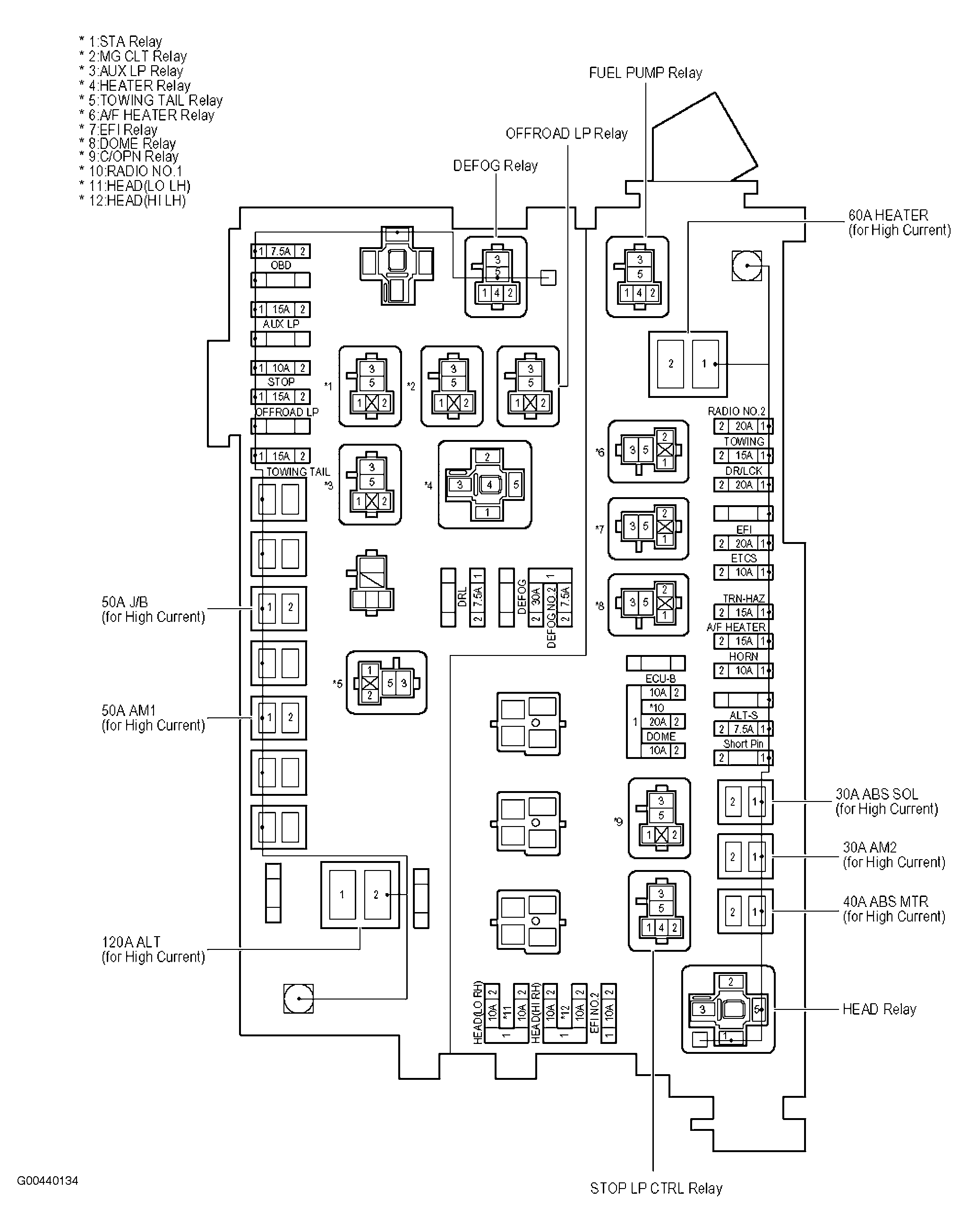

Fig 5: Engine Room R/B No. 2

G00440134

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

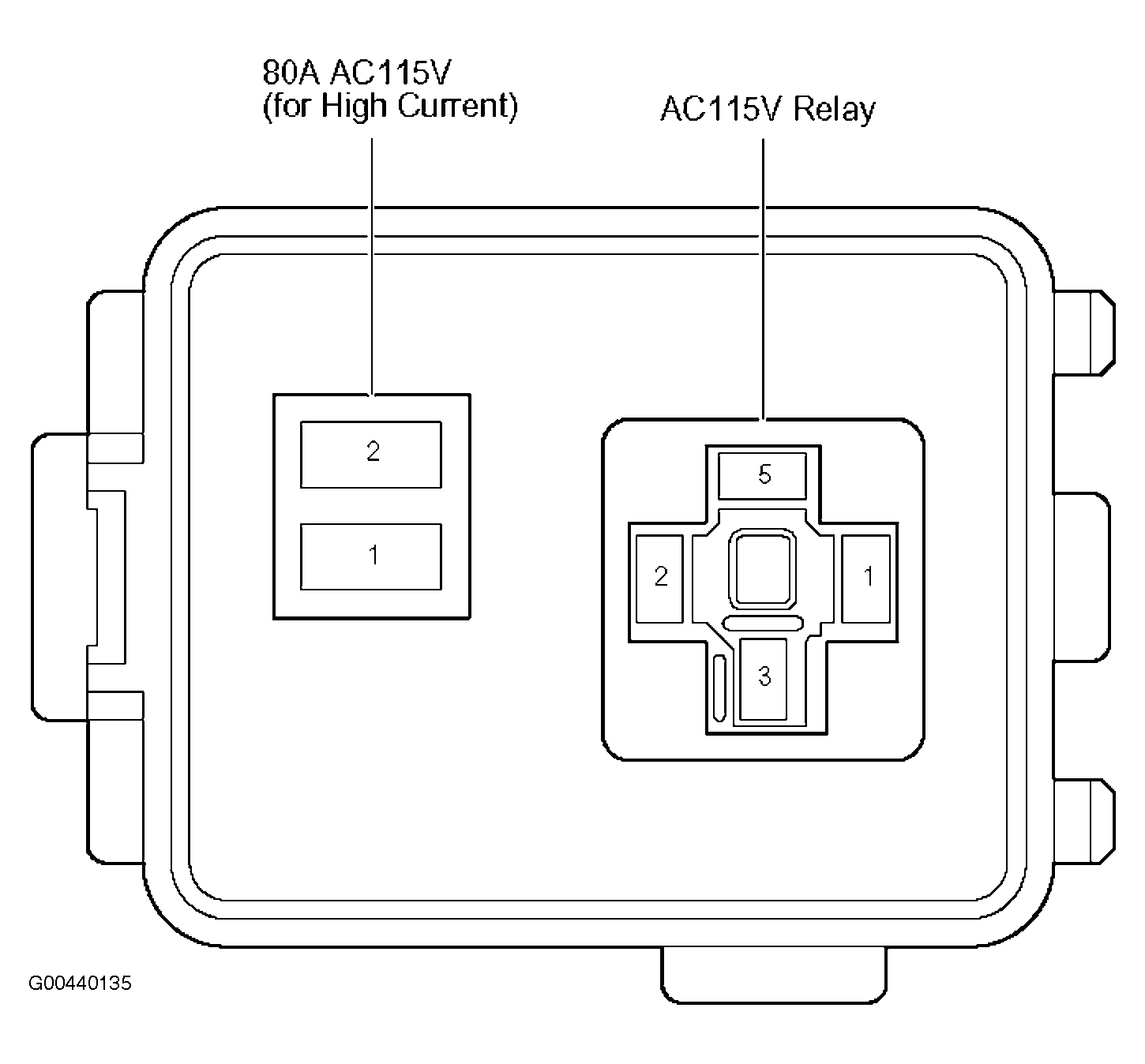

Fig 6: Engine Room R/B No. 3

G00440135

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

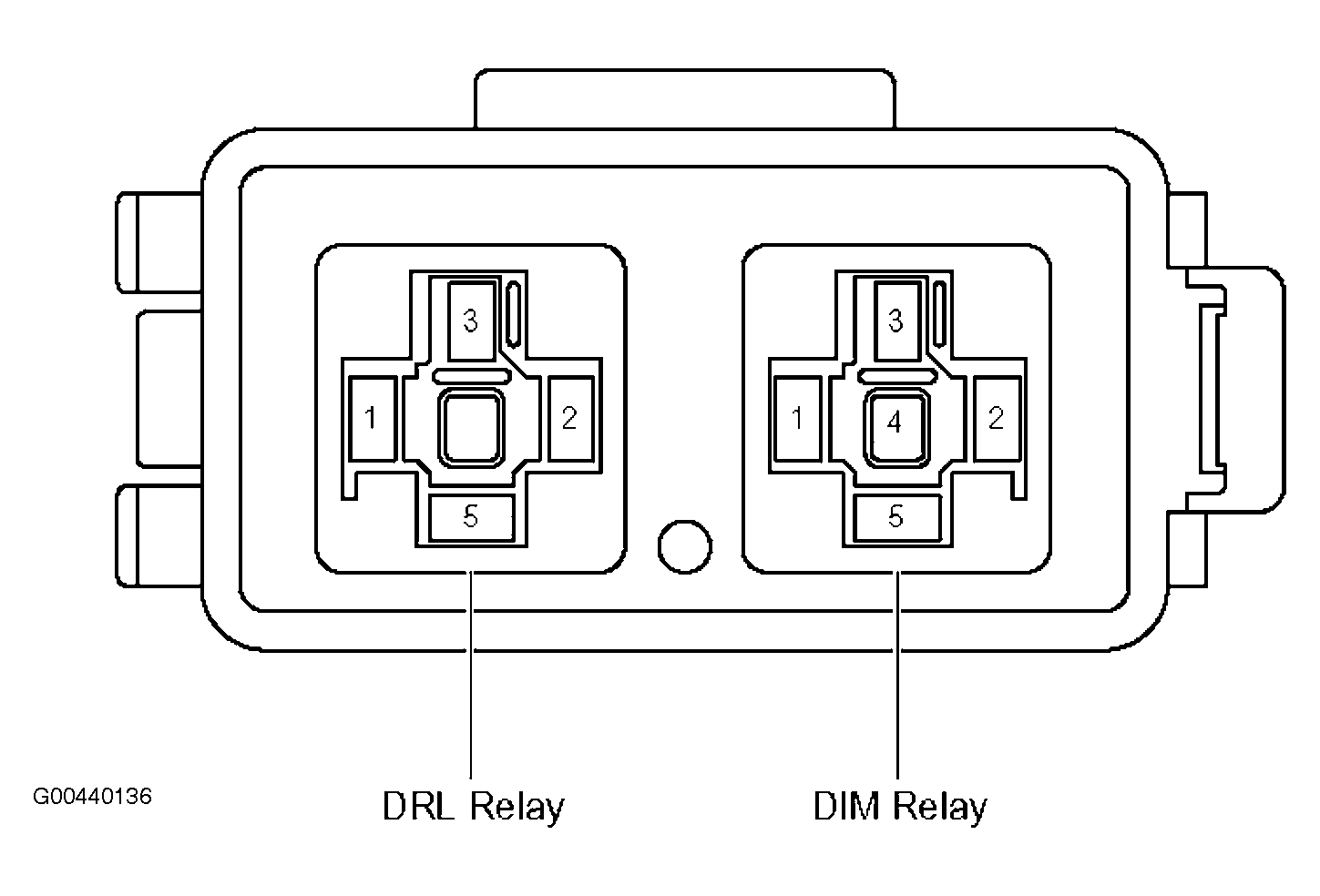

Fig 7: Engine Room R/B No. 4

G00440136

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

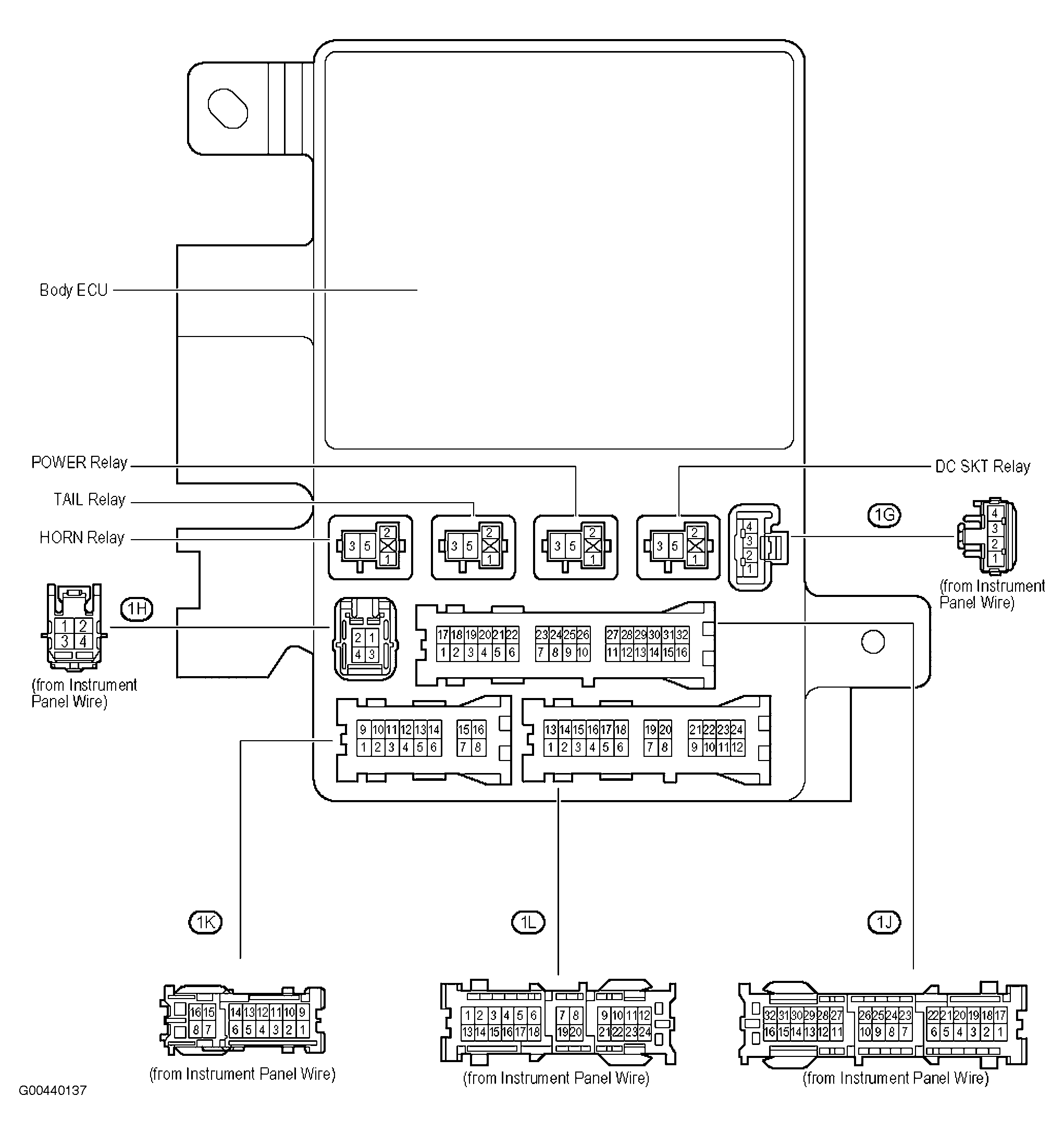

Fig 8: Driver Side J/B

G00440137

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Compartment

G00440138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

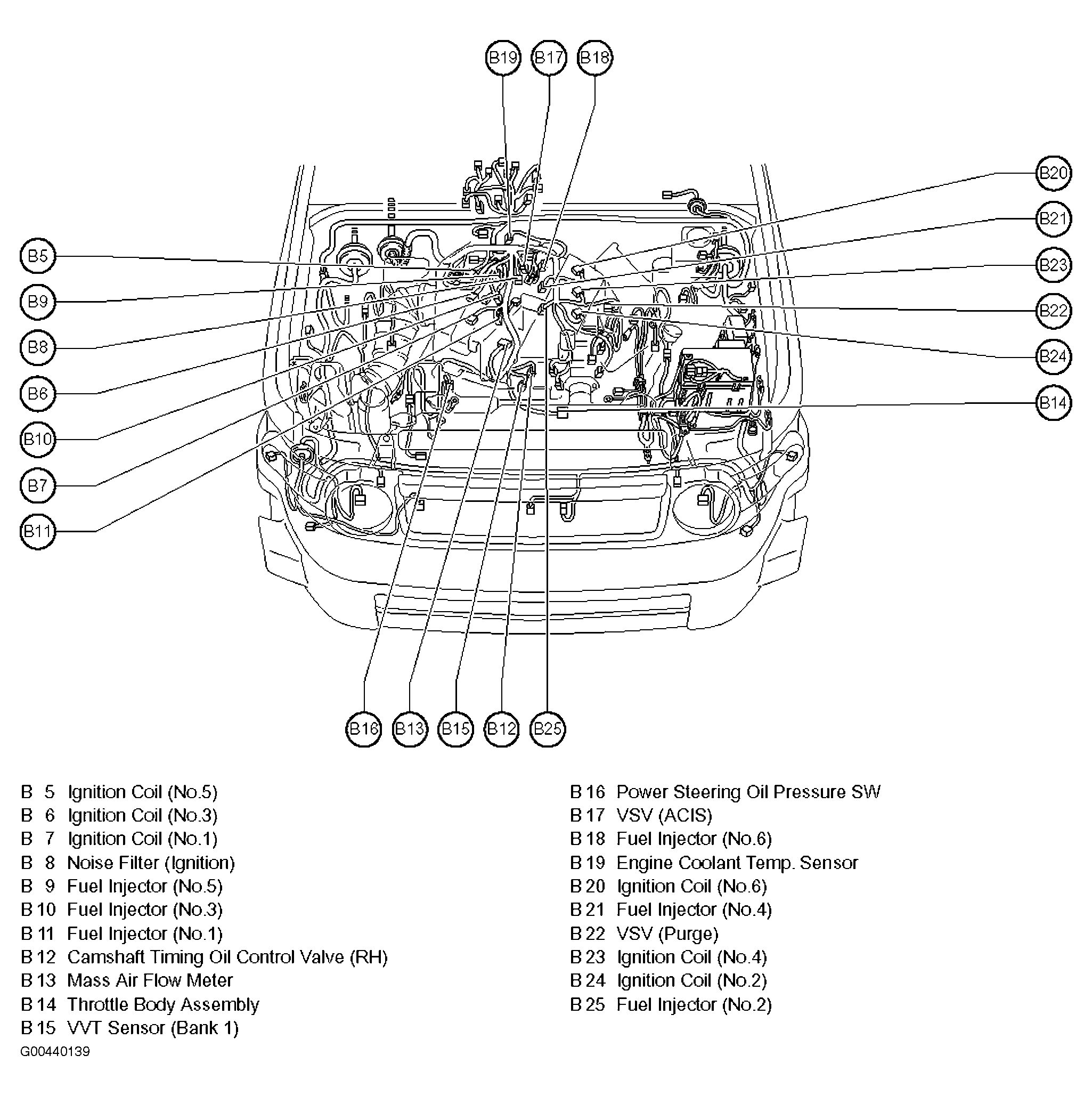

Fig 10: Engine Compartment

G00440139

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

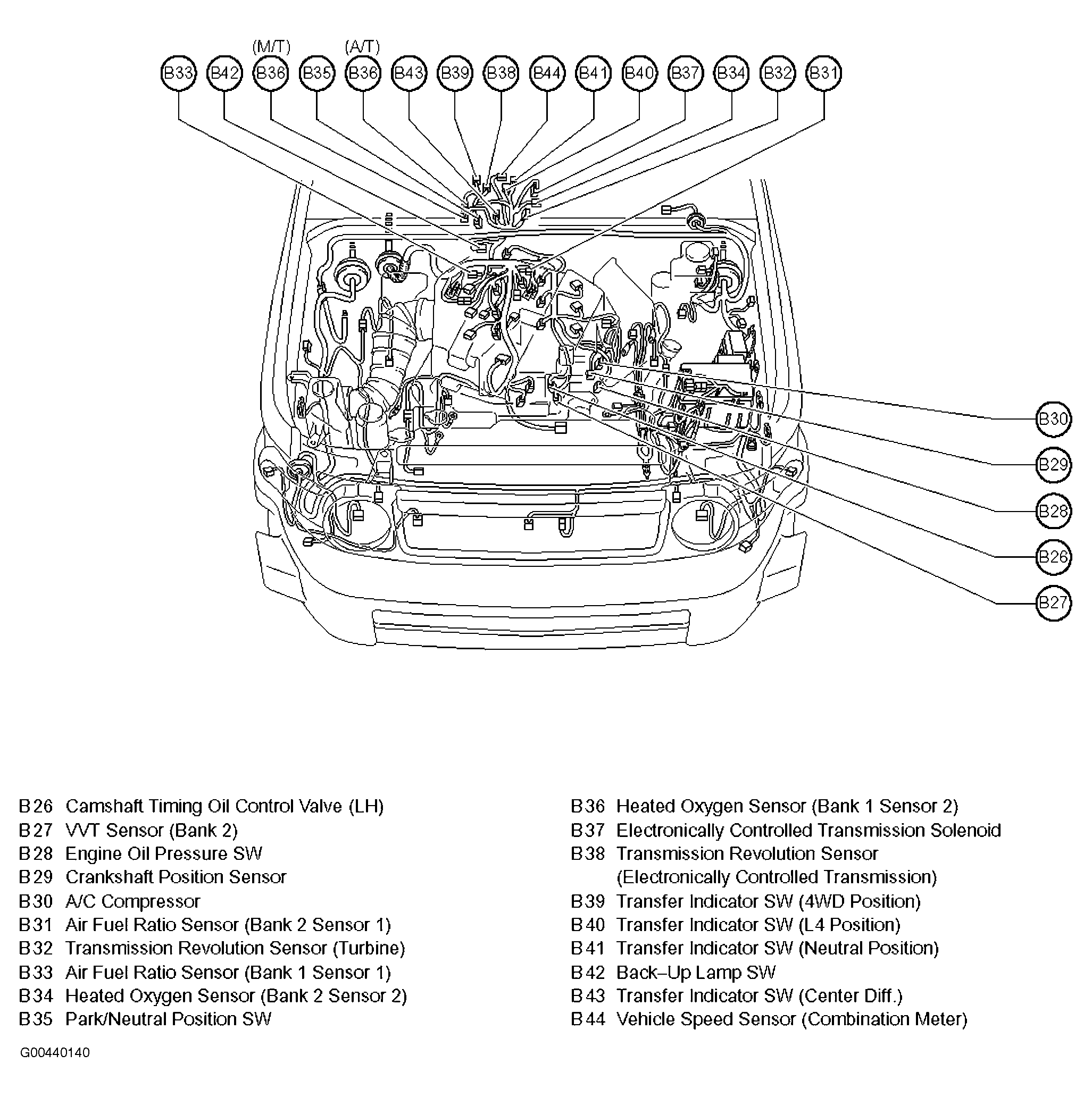

Fig 11: Engine Compartment

G00440140

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

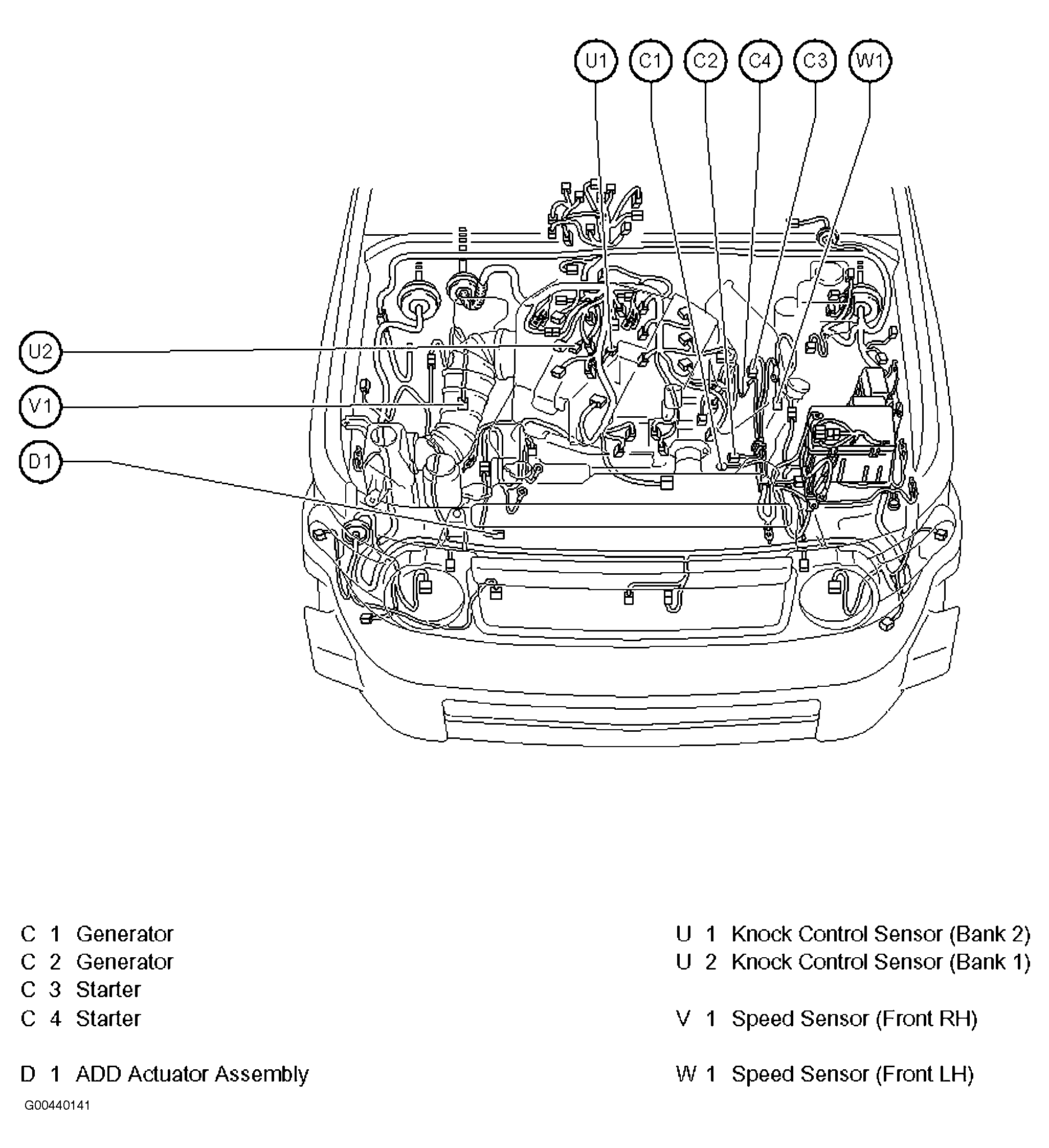

Fig 12: Engine Compartment

G00440141

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dash

G00440142

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

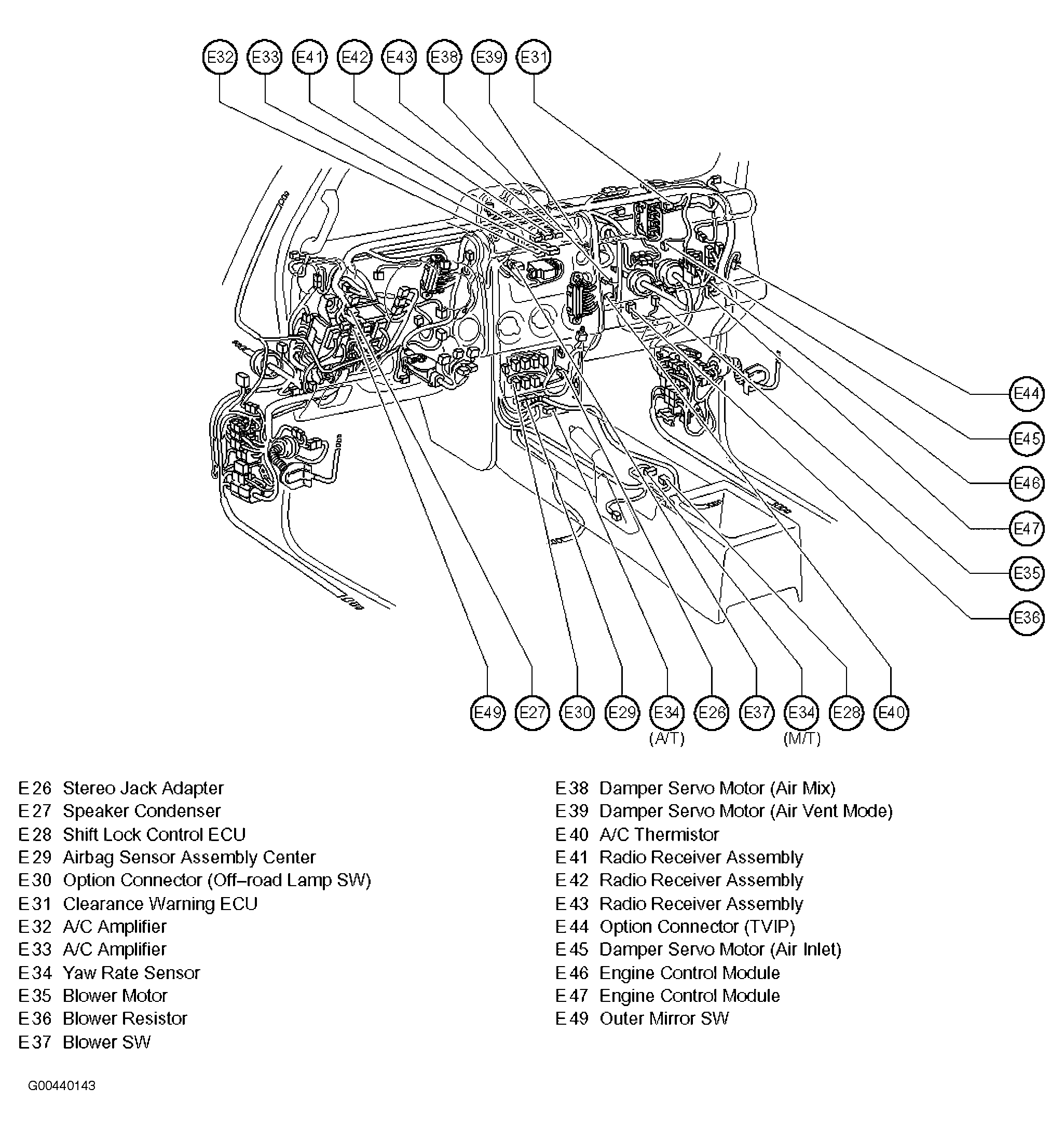

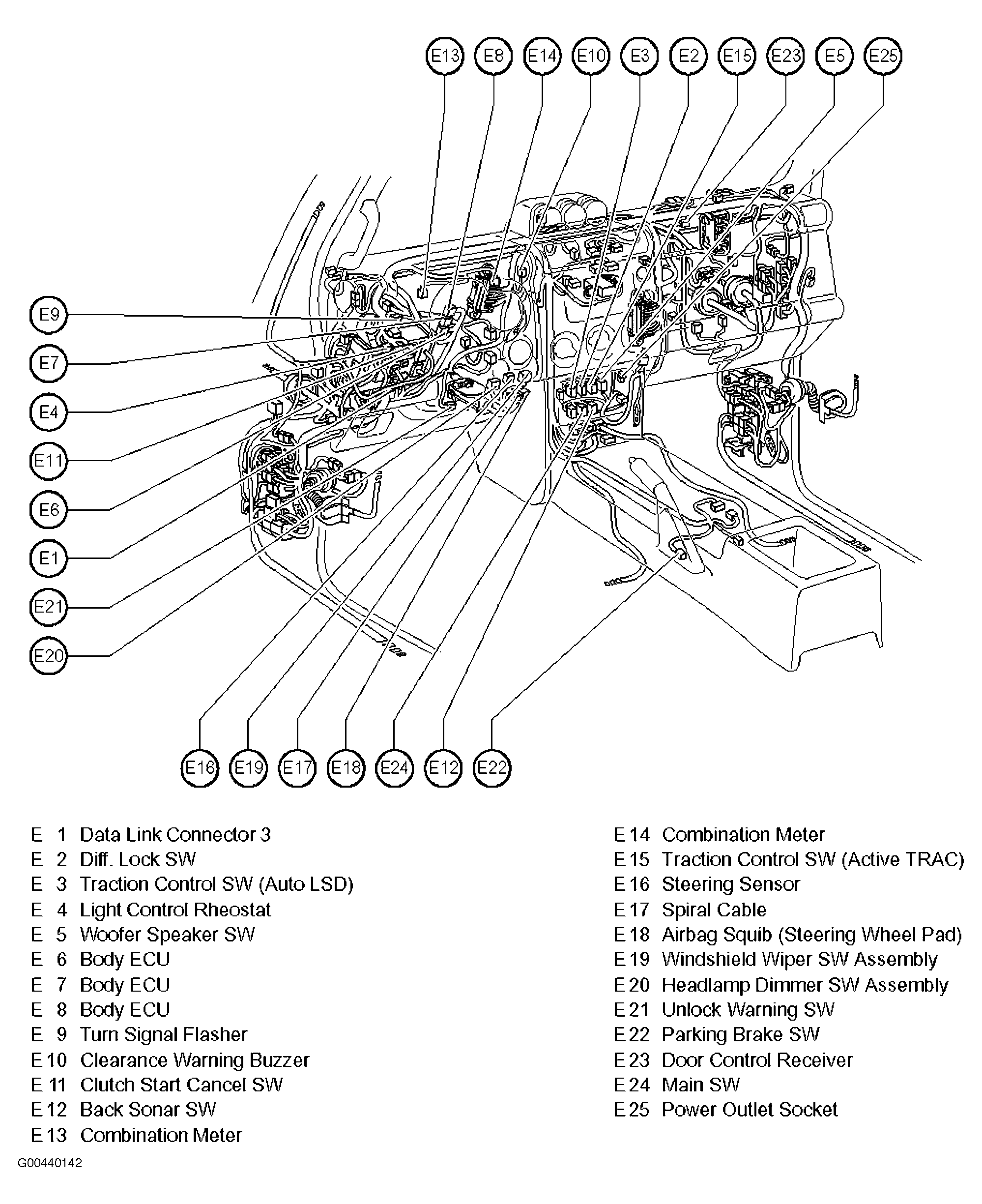

Fig 14: Dash

G00440143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

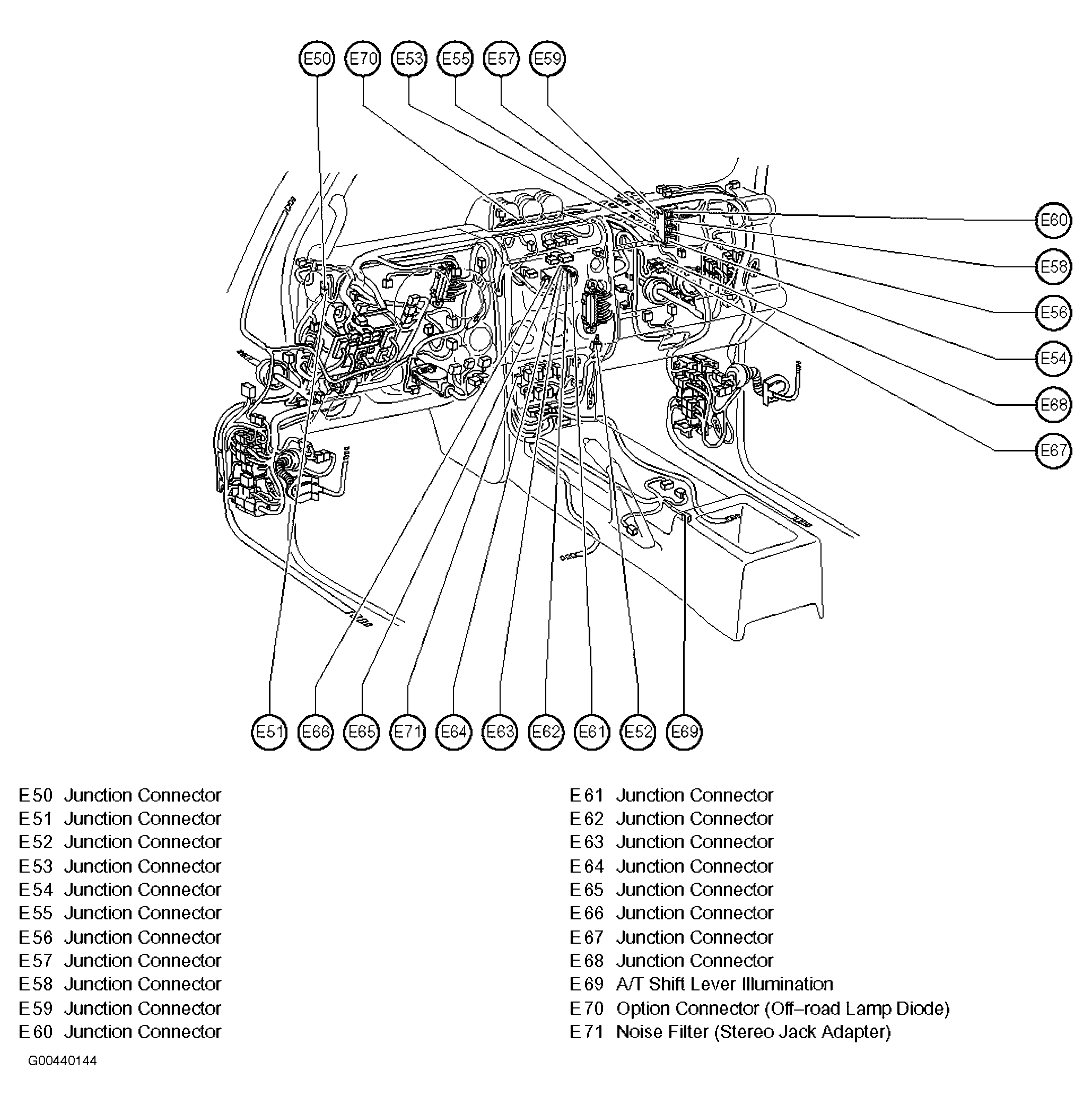

Fig 15: Dash

G00440144

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

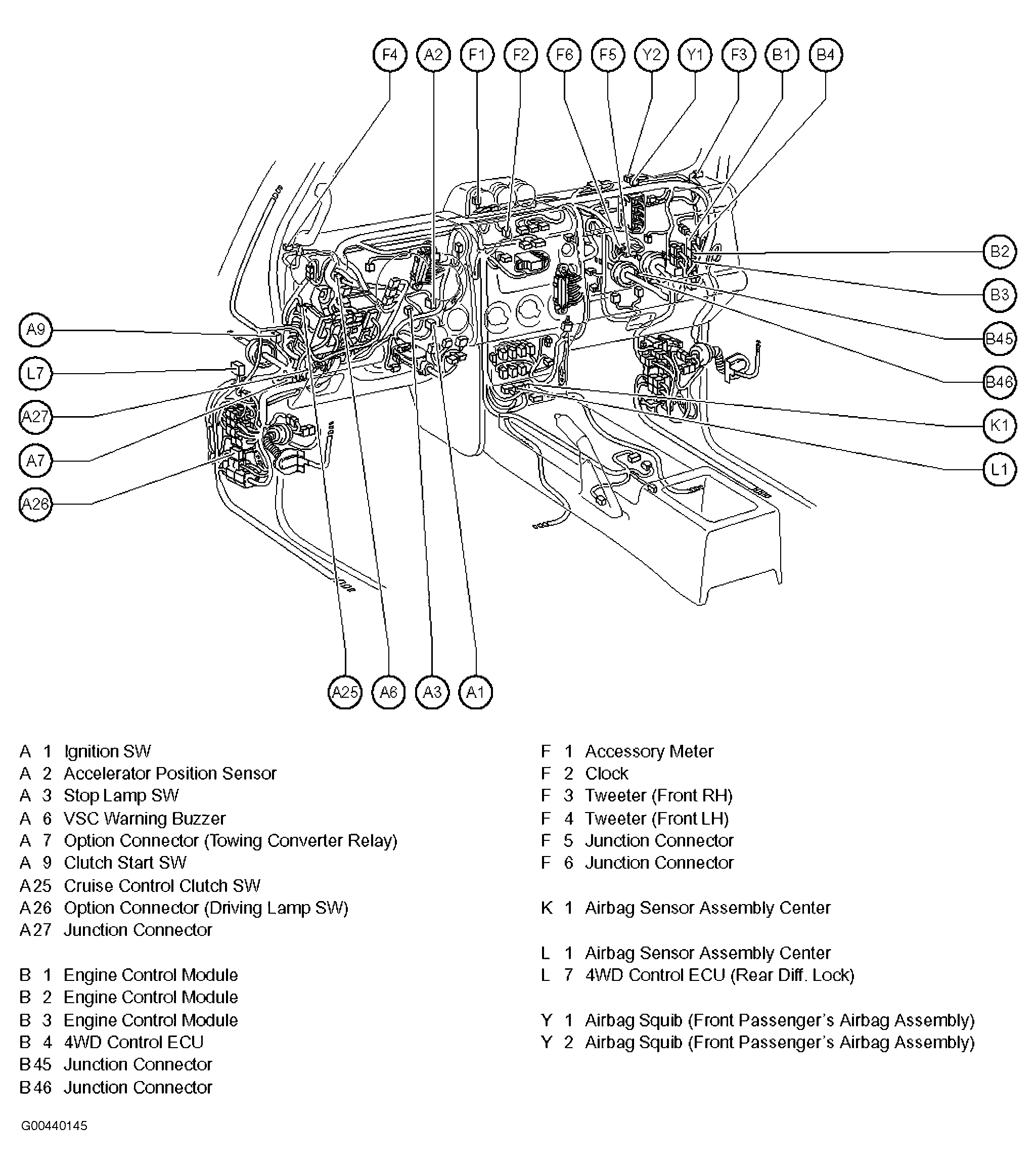

Fig 16: Dash

G00440145

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Vehicle Overview

G00440146

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Vehicle Overview

G00440147

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

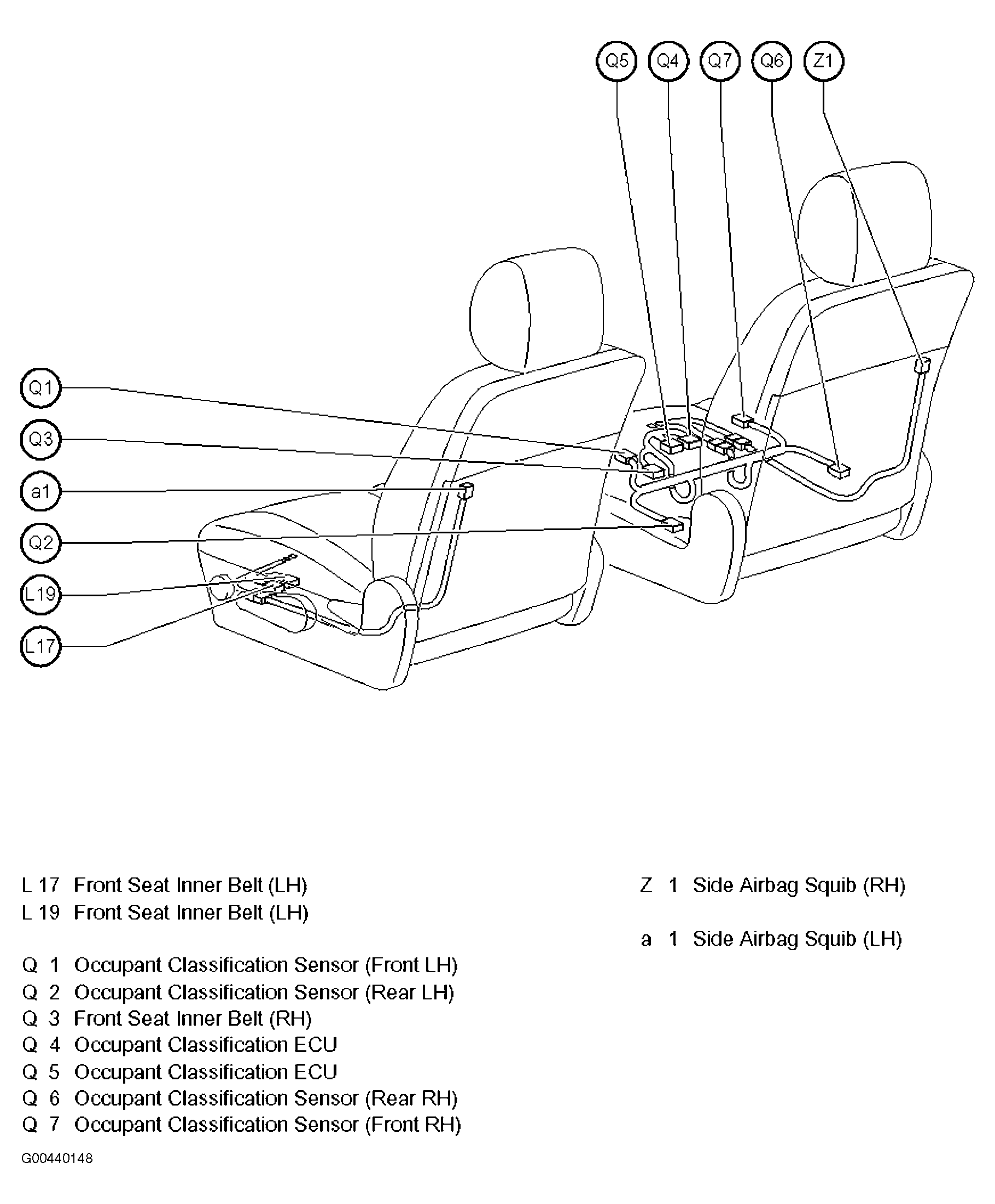

Fig 19: Seats

G00440148

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

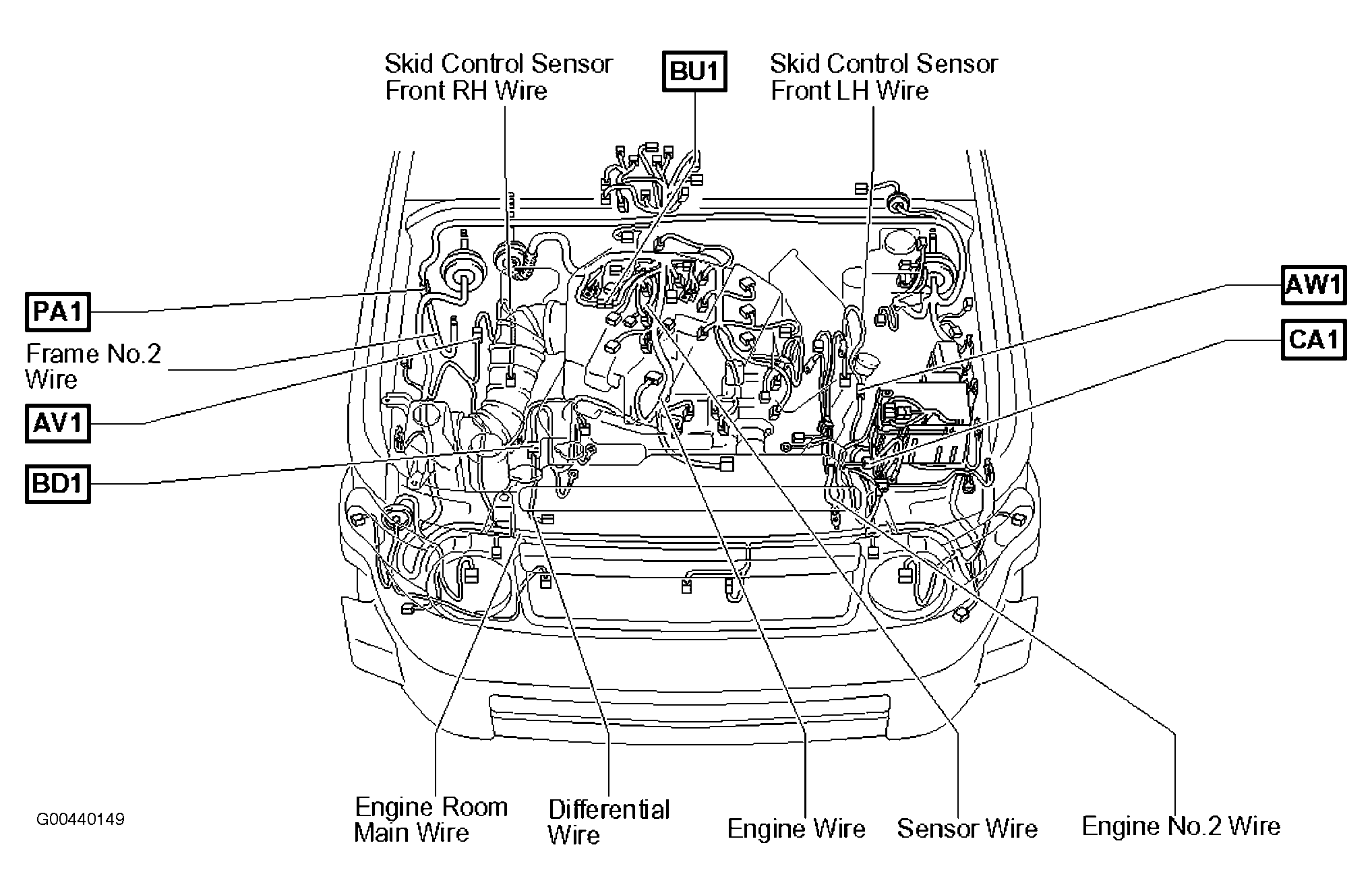

Fig 20: Engine Compartment

G00440149

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

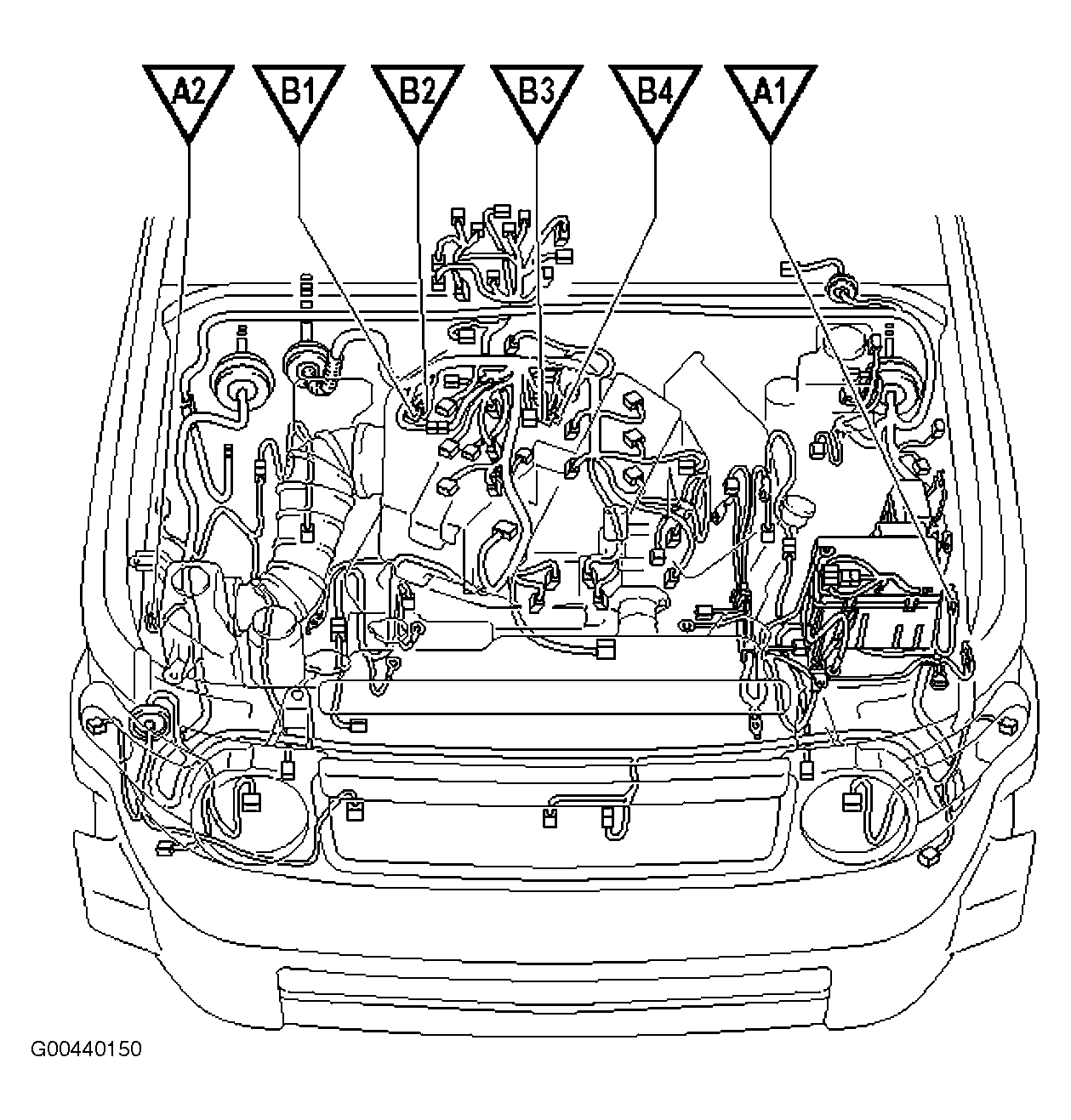

Fig 21: Engine Compartment

G00440150

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

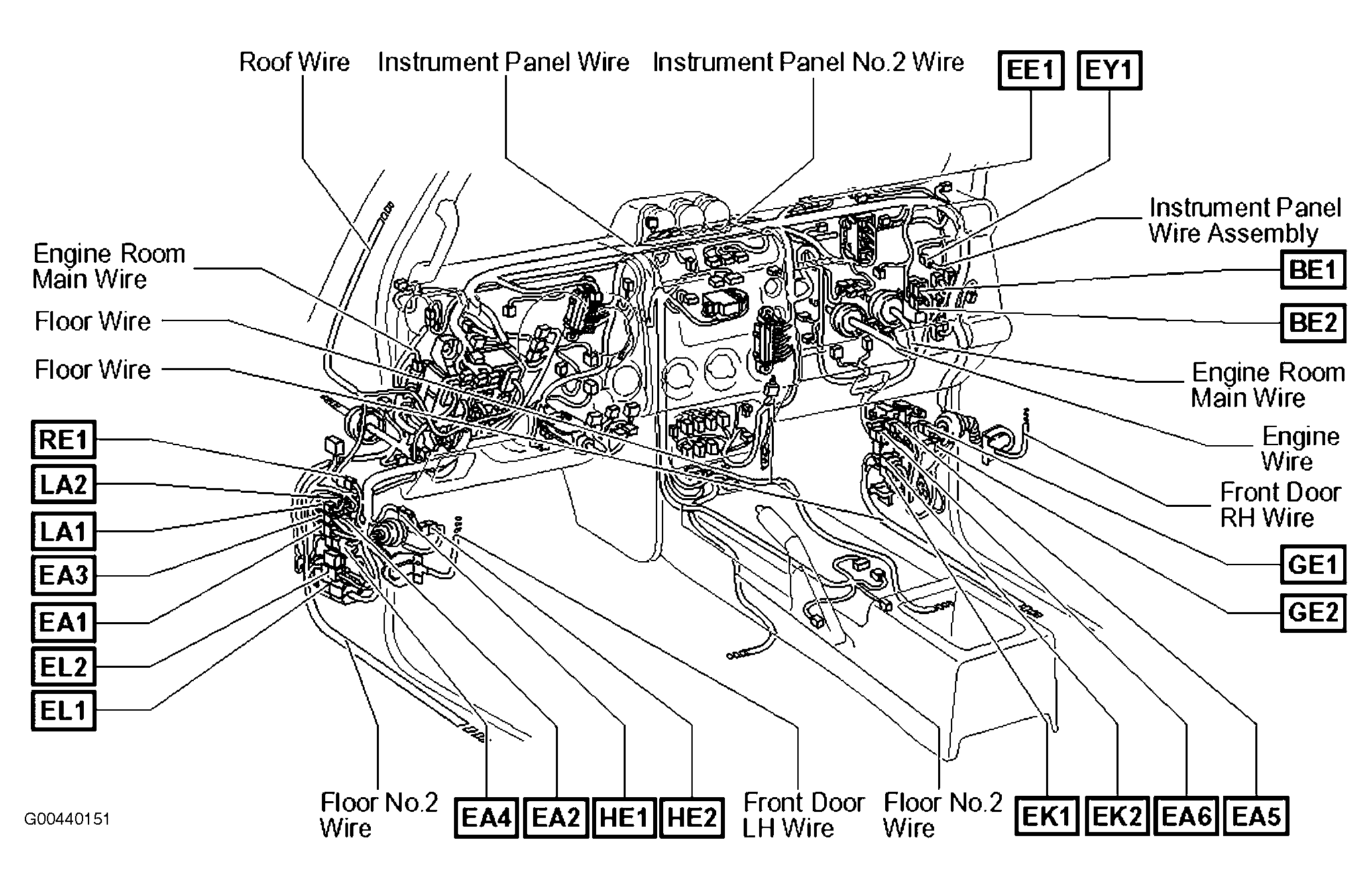

Fig 22: Dash

G00440151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

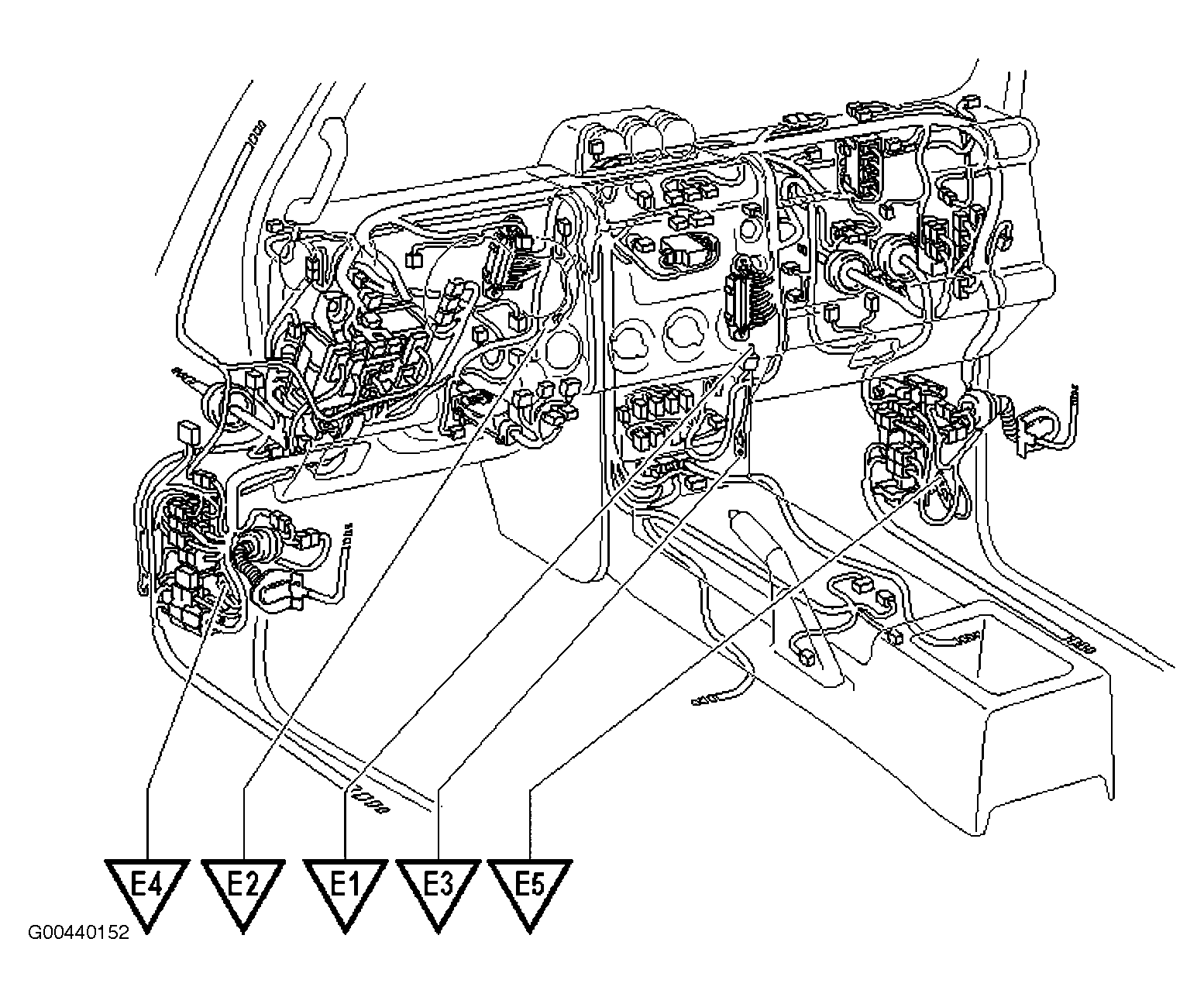

Fig 23: Dash

G00440152

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

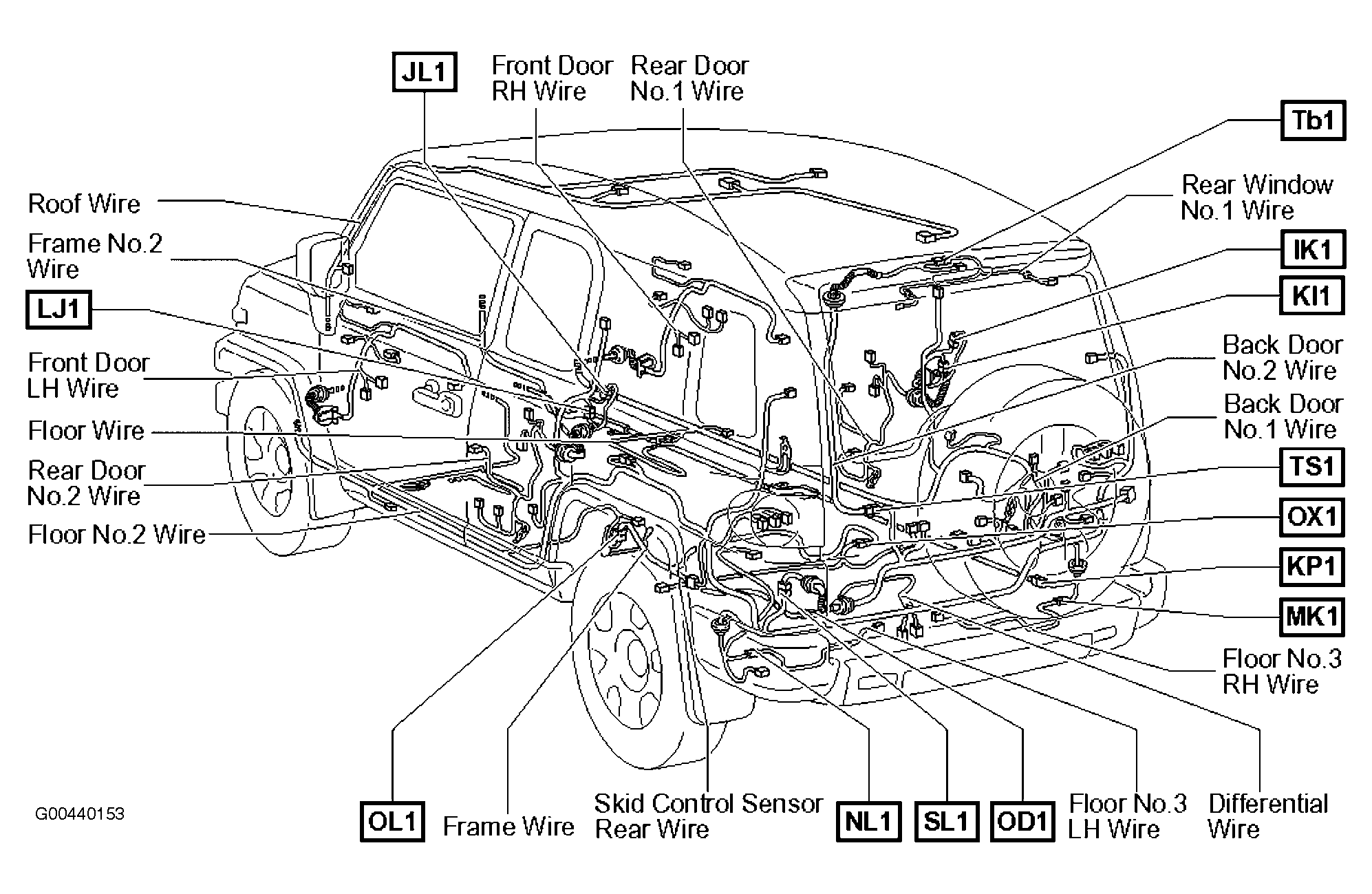

Fig 24: Vehicle Overview

G00440153

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

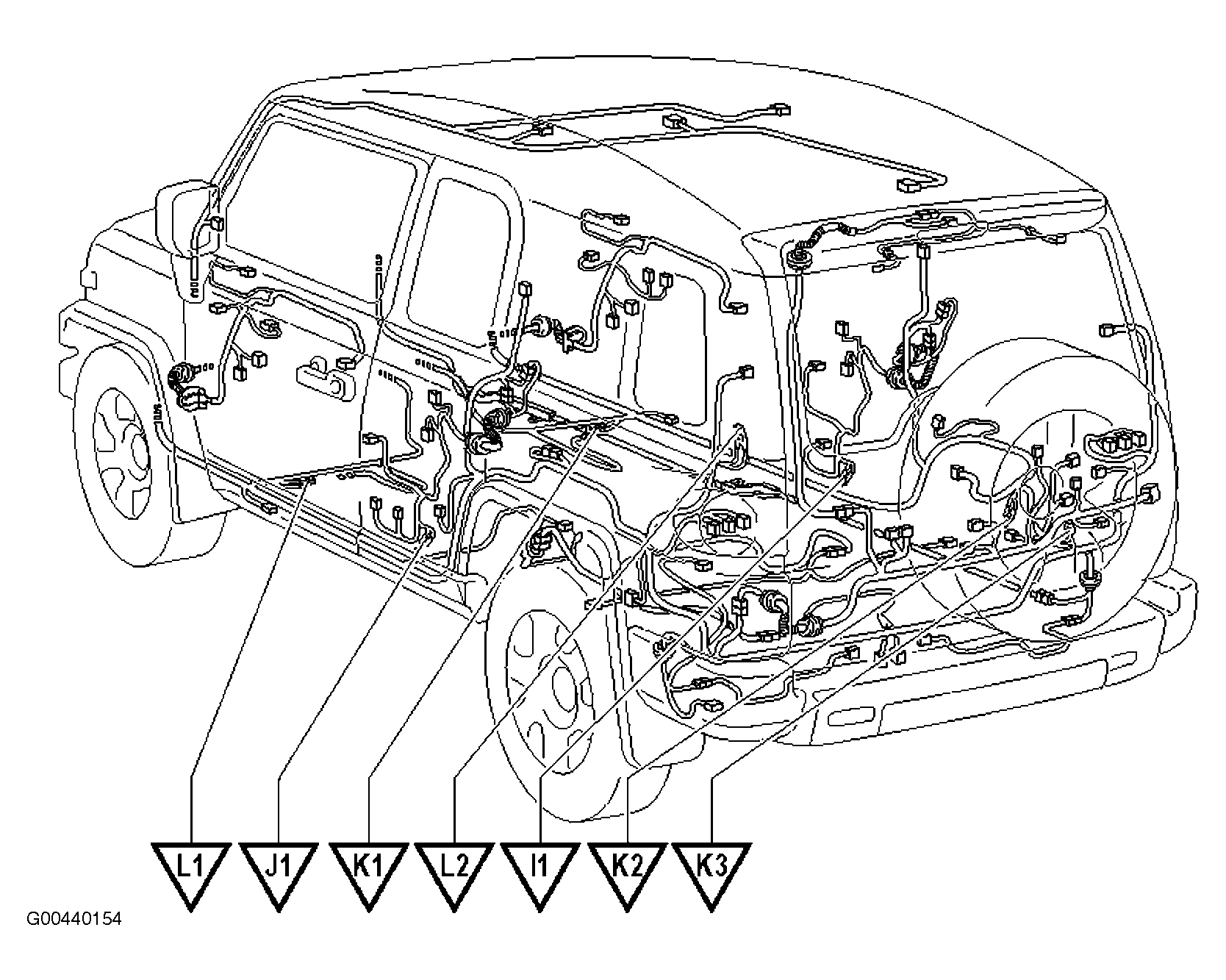

Fig 25: Vehicle Overview

G00440154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

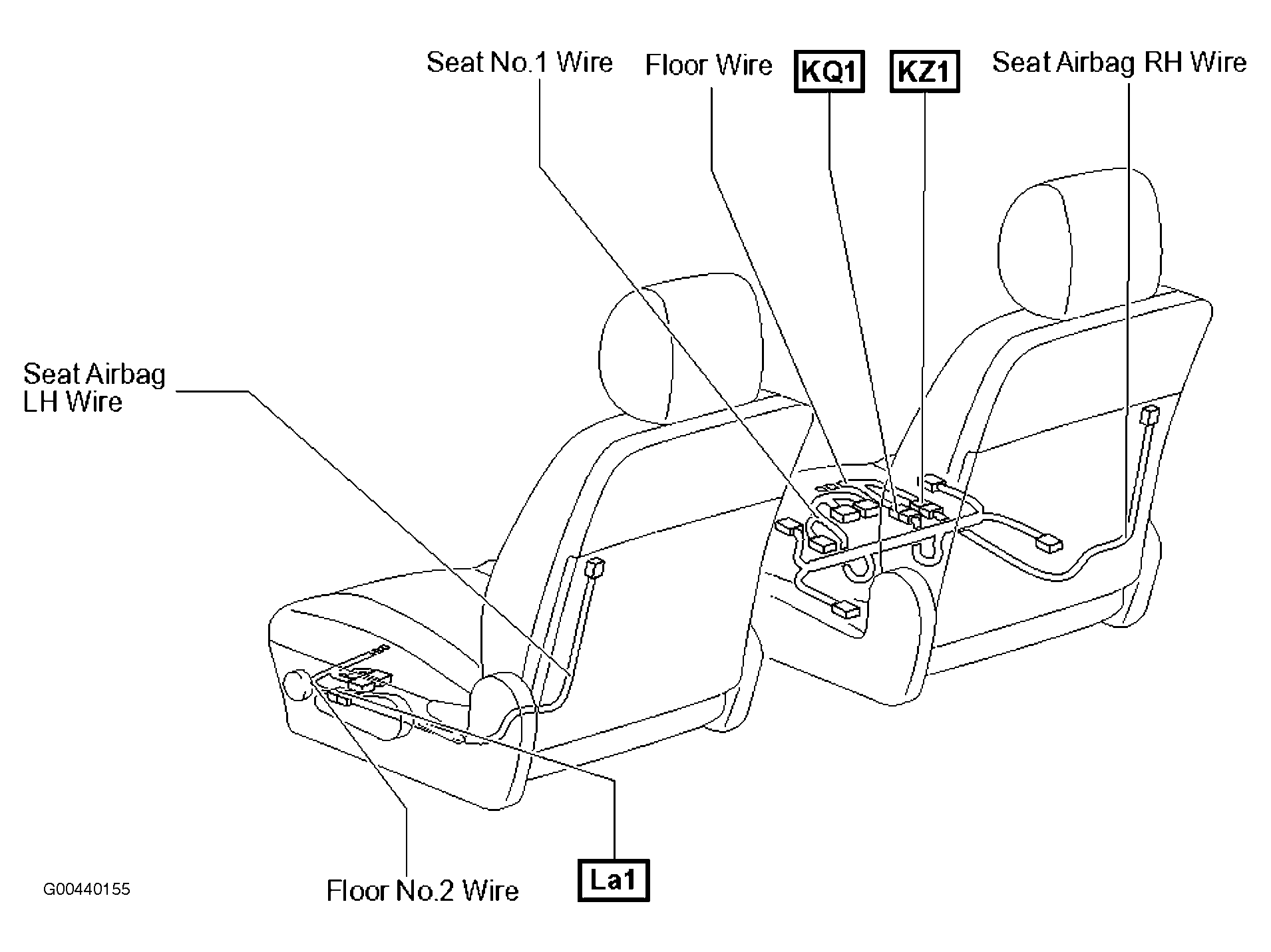

Fig 26: Seats

G00440155

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
