Ignition Switch: Installation

  1. INSTALL IGNITION SWITCH ASSEMBLY
    1. Connect the connector.
    2. Install the ignition switch with the 2 screws.

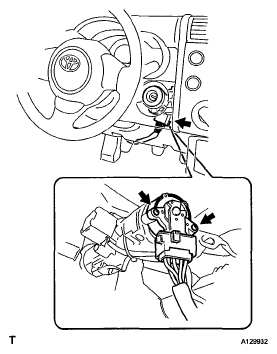

      Fig 1: Identifying Ignition Switch Screws
      G05109970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
