Knock Sensor
>>
Components
Knock Sensor: Components

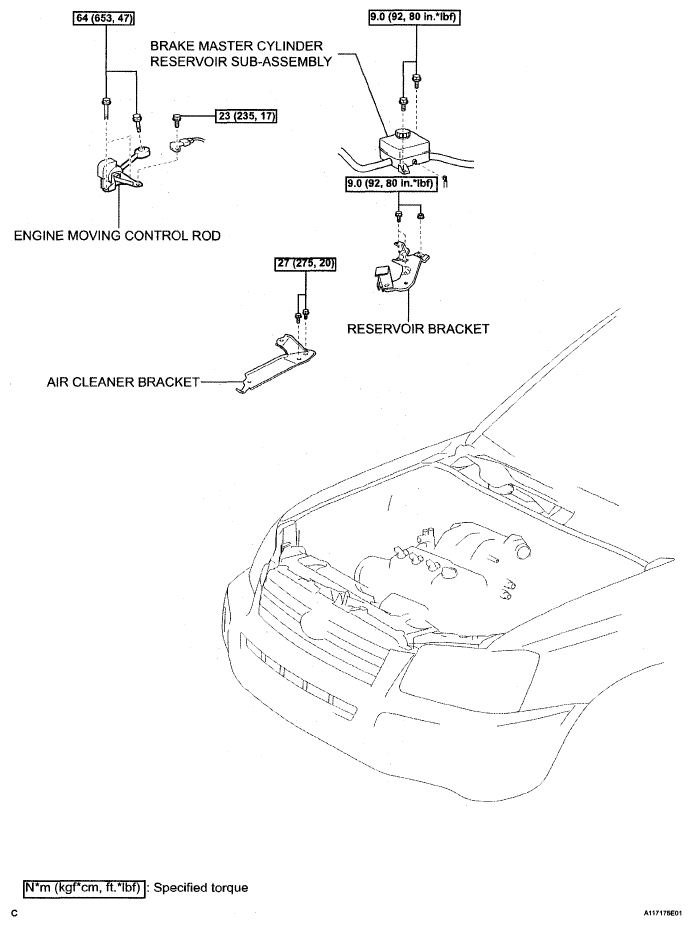

Fig 1: Engine Assembly Replacement Components With Torque Specifications (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

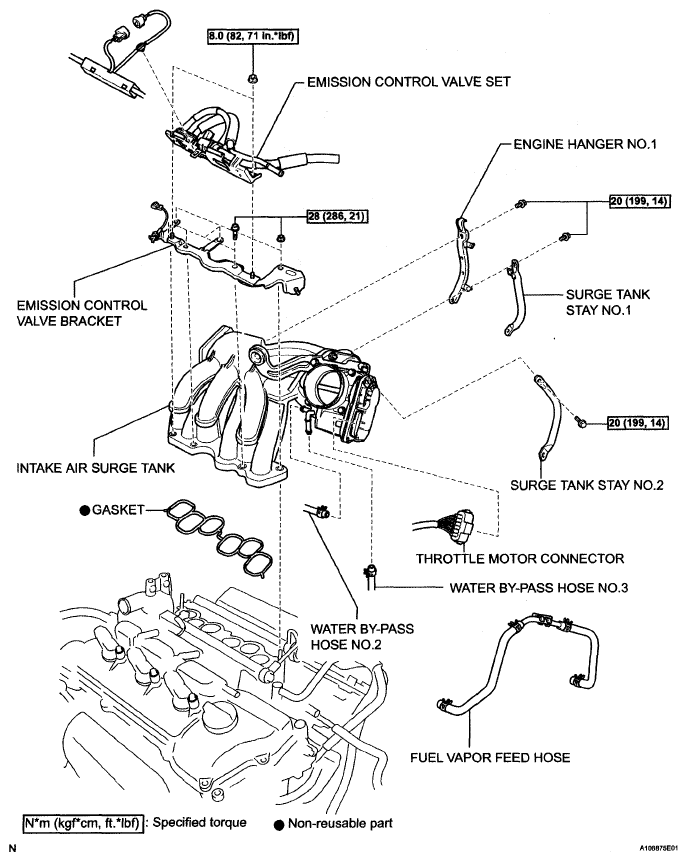

Fig 2: Engine Assembly Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

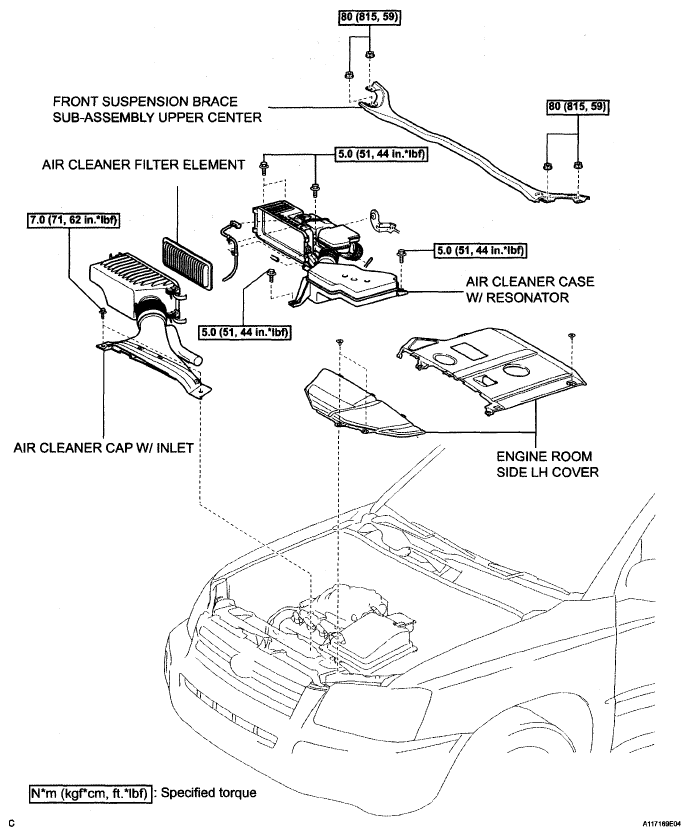

Fig 3: Engine Assembly Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Engine Assembly Replacement Components With Torque Specifications (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
