Home >> Toyota >> 2007 >> Highlander Hybrid, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System (Hybrid) >> Knock Sensor >> Removal

Knock Sensor: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE

    (See FUEL SYSTEM )

  2. REMOVE ENGINE ROOM SIDE LH COVER N0.2  (See REMOVAL )
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  4. DRAIN COOLANT  (See COOLANT )
  5. REMOVE FRONT SUSPENSION BRACE SUB-ASSEMBLY UPPER CENTER  (See REMOVAL )
  6. REMOVE AIR CLEANER CAP W/ INLET (See  REMOVAL  )
  7. REMOVE AIR CLEANER CASE W/ RESONATOR (See  REMOVAL  )
  8. SEPARATE BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY  (See REMOVAL )
  9. REMOVE RESERVOIR BRACKET  (See REMOVAL )
  10. REMOVE AIR CLEANER BRACKET  (See REMOVAL )
  11. REMOVE ENGINE MOVING CONTROL ROD  (See REMOVAL )
  12. REMOVE EMISSION CONTROL VALVE SET
    1. Disconnect the VSV connector (A).
    2. Remove the wire harness clamp (B).
      Fig 1: Locating VSV Connector, Fuel Vapor Feed Hose And Wire Harness Clamp
      G05200256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the fuel vapor feed hose No. 1 (C).
    4. Disconnect the fuel vapor feed hose No. 2 (D).
    5. Remove the 2 nuts (E), then remove the emission control valve set.
  13. REMOVE INTAKE AIR SURGE TANK
    1. Disconnect the throttle motor connector (A).
    2. Separate the water bypass hose No. 2 (B).
      3. Fig 2: Locating Throttle Motor Connector And Water Bypass Hoses
      G05200257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate the water bypass hose No. 3 (C).
    4. Separate the fuel vapor feed hose (D).
    5. Disconnect the ventilation hose.
      Fig 3: Locating Ventilation Hose
      G05200258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 bolts, then remove the engine hanger No.1 (A).
      7. Fig 4: Locating Engine Hanger And Surge Tank Stay Bolts
      G05200259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 bolts, then remove the surge tank stay No. 1 (B).
    8. Remove the 2 bolts, then remove the surge tank stay No. 2 (C).
    9. Disconnect the ground cable connector.
      10. Fig 5: Identifying Ground Cable Connector
      G05200260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Using a socket hexagon wrench 8 mm, remove the 4 bolts.
    11. Remove the 2 nuts, then remove the emission control valve bracket and the intake air surge tank.
    12. Remove the gasket from the intake air surge tank.
  14. DISCONNECT FUEL PIPE SUB-ASSEMBLY
    1. Remove the EFI fuel pipe clamp No.1.

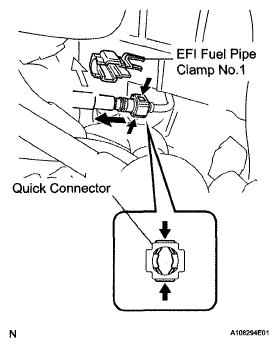

      2. Fig 6: Disconnecting Fuel Pipe Sub-Assembly
      G05200261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pinch the quick connector and then pull out the fuel pipe No. 1.
      NOTE:
      • Remove dirt or foreign objects on the quick connector before this work.
      • Do not to allow any scratches or foreign objects on the parts when disconnecting as the fuel hose connector has the O-ring that seals the pipe.
      • Perform this work by hand. Do not use any tools.
      • Do not forcibly bend, twist or turn the nylon tube.
      • Protect the connected part by covering it with a vinyl bag after disconnecting the hose.
      • If the quick connector and pipe are stuck, push and pull them to release.
  15. DISCONNECT HEATER WATER INLET HOSE
    1. Disconnect the heater water inlet hose.
      Fig 7: Locating Heater Water Inlet Hose
      G05200262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. DISCONNECT RADIATOR HOSE INLET
    1. Disconnect the radiator hose inlet.
      Fig 8: Locating Radiator Hose Inlet
      G05200263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE INTAKE MANIFOLD
    1. Remove the nut and ground cable.
      Fig 9: Locating Ground Cable Nut
      G05200264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 6 fuel injector connectors.
      Fig 10: Locating Fuel Injector Connectors
      G05200265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. In order to remove the intake manifold, using several steps, remove the 9 bolts and 2 nuts in the sequence shown in the illustration.
      4. Fig 11: Identifying Removal Sequence Of Intake Manifold Bolts And Nuts
      G05200266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE WATER OUTLET  (See REMOVAL )
  19. REMOVE KNOCK CONTROL SENSOR
    1. Disconnect the 2 knock sensor connectors.
    2. Remove the 2 nuts, and then remove the 2 knock sensors.
      Fig 12: Locating Knock Control Sensor Nuts
      G05200267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
